Functions 13. I/O Connector
RC700 Series Rev.3 147

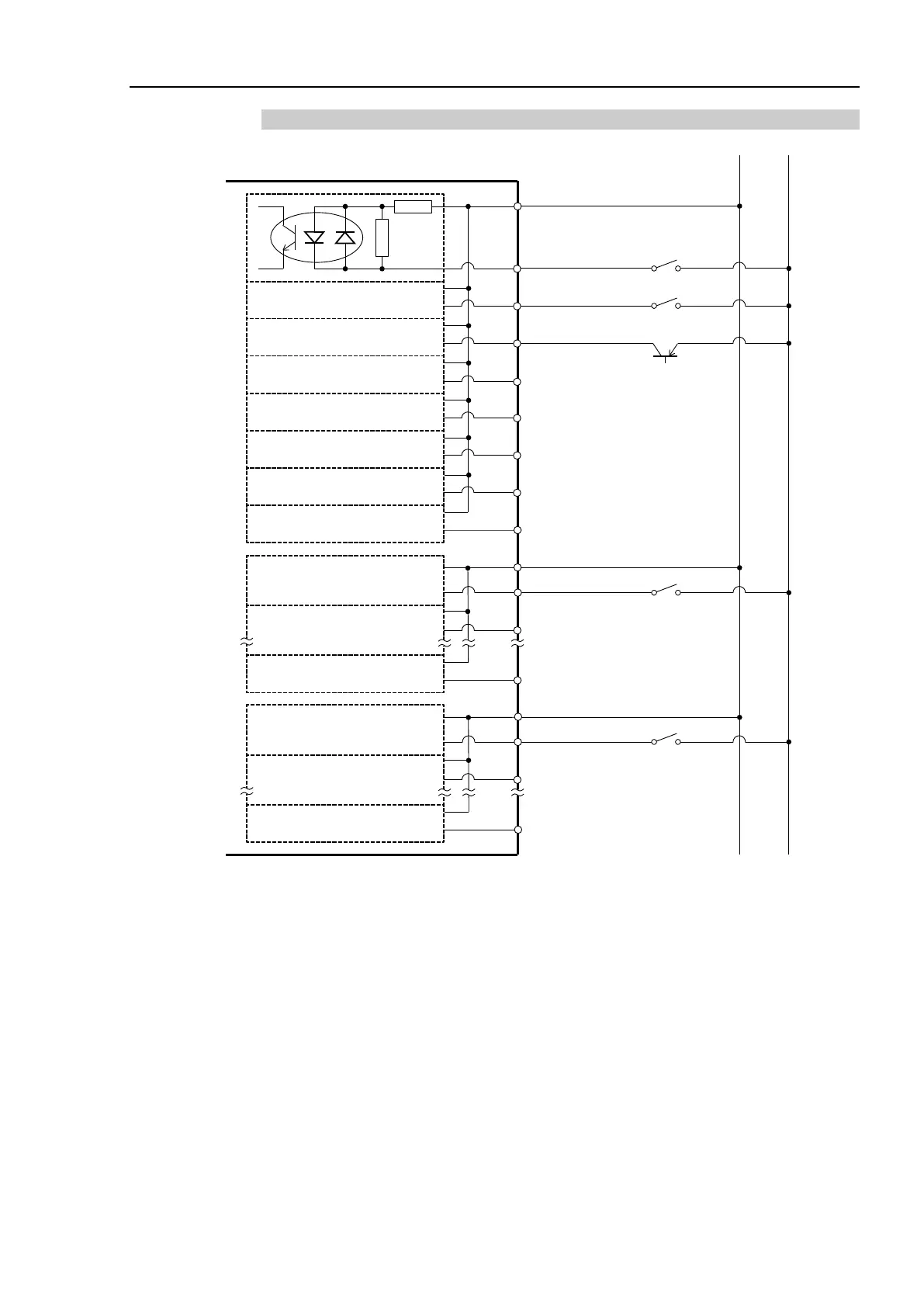

13.1.2 Typical Input Circuit Application 2
1 Input No.0～7 common
2 Input No.0
3 Input No.1
4 Input No.2
5 Input No.3
6 Input No.4
7 Input No.5
8 Input No.6
9 Input No.7
I/O-2
(Same)
Same
GND +DC
18 Input No.8～15 common
19 Input No.8
20 Input No.9
34 Input No.16～23 common
Same
26 Input No.15
42 Input No.23
35 Input No.16
36 Input No.17

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
