Epson RC700 Series Original Instructions

Functions 12. Standard RS-232C Port
RC700 Series Rev.3 143
12. Standard RS-232C Port
12.1 RS-232C Port
A standard RS-232C port is available with the Controller.
Mount the RS-232C board(s) in the option slot to communicate with external equipment
with two or more RS-232C ports.
For the details of the expansion port, refer to 16.4 RS-232C Board.
Port numbers are assigned as follows.
Port No.
Supported hardware
#1 Standard RS-232C connector
#2
First expansion RS-232C board CH1
#3
First expansion RS-232C board CH2
#4
Second expansion RS-232C board CH1
#5
Second expansion RS-232C board CH2
12.2 Confirmation with EPSON RC+ 7.0 (RS-232C)
When an RS-232C board is mounted in as option unit, the Controller software automatically
identifies the RS-232C board. Therefore, no software configuration is needed. Correct
identification can be confirmed from EPSON RC+ 7.0.

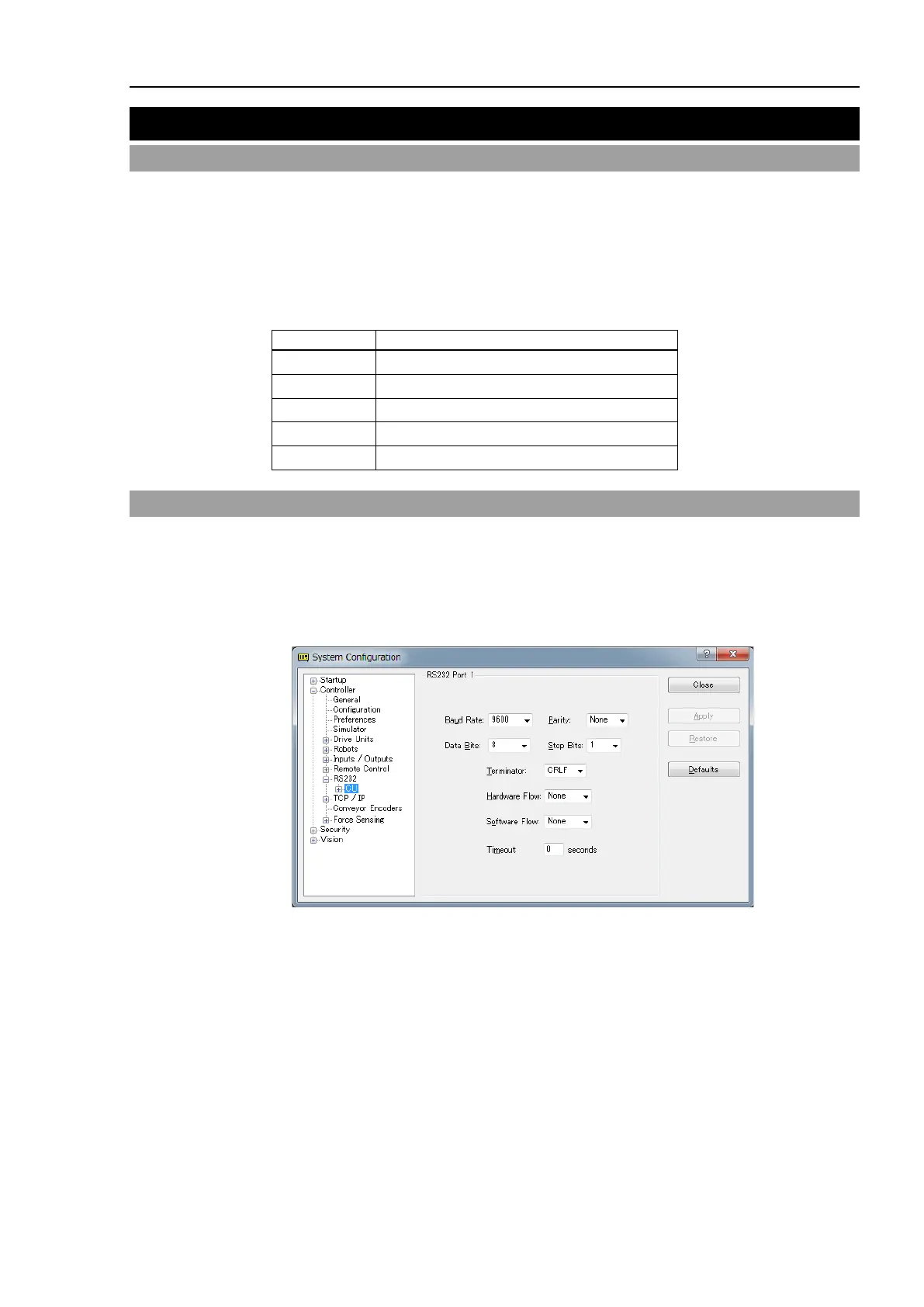

(1) Select the EPSON RC+ 7.0 menu-[Setup]-[System Configuration] to display the
[System Configuration] dialog.
(2) Select the [RS232]-[CU].

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
