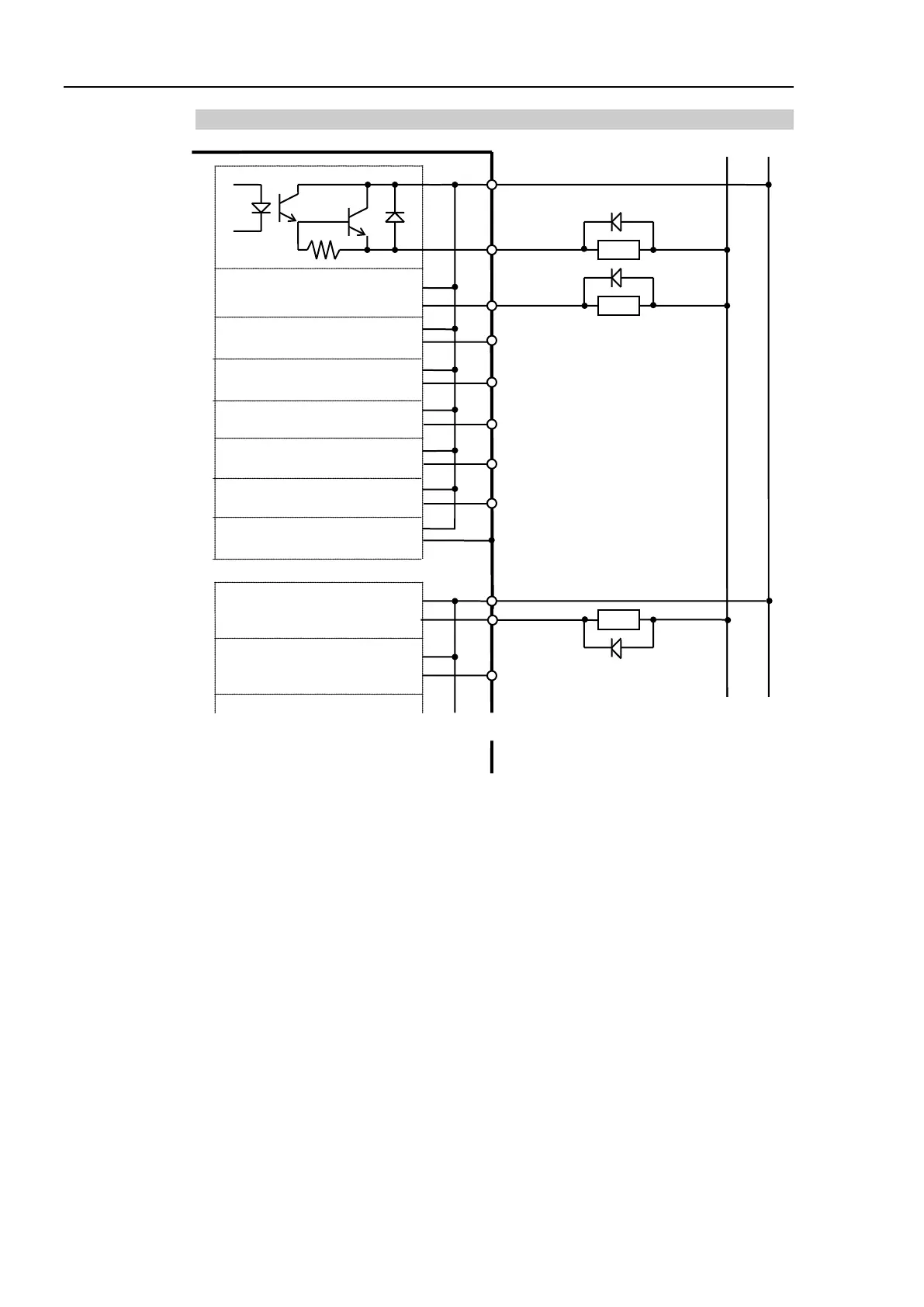

Typical Output Circuit Application 2: Source Type (PNP)
17 Output No.64 to 71 Common
11 Output No.65
10 Output No.64
12 Output No.66
13 Output No.67
L
L
GND +DC
33 Output No.72 to 79 Common
L
Omit
～
～
～
～
29 Output No.72
14 Output No.68
15 Output No.69
27 Output No.70
30 Output No.73
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
28 Output No.71

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
