Epson RC700 Series Original Instructions

Installation 2. Installation
4 RC700 Series Rev.3
2. Installation

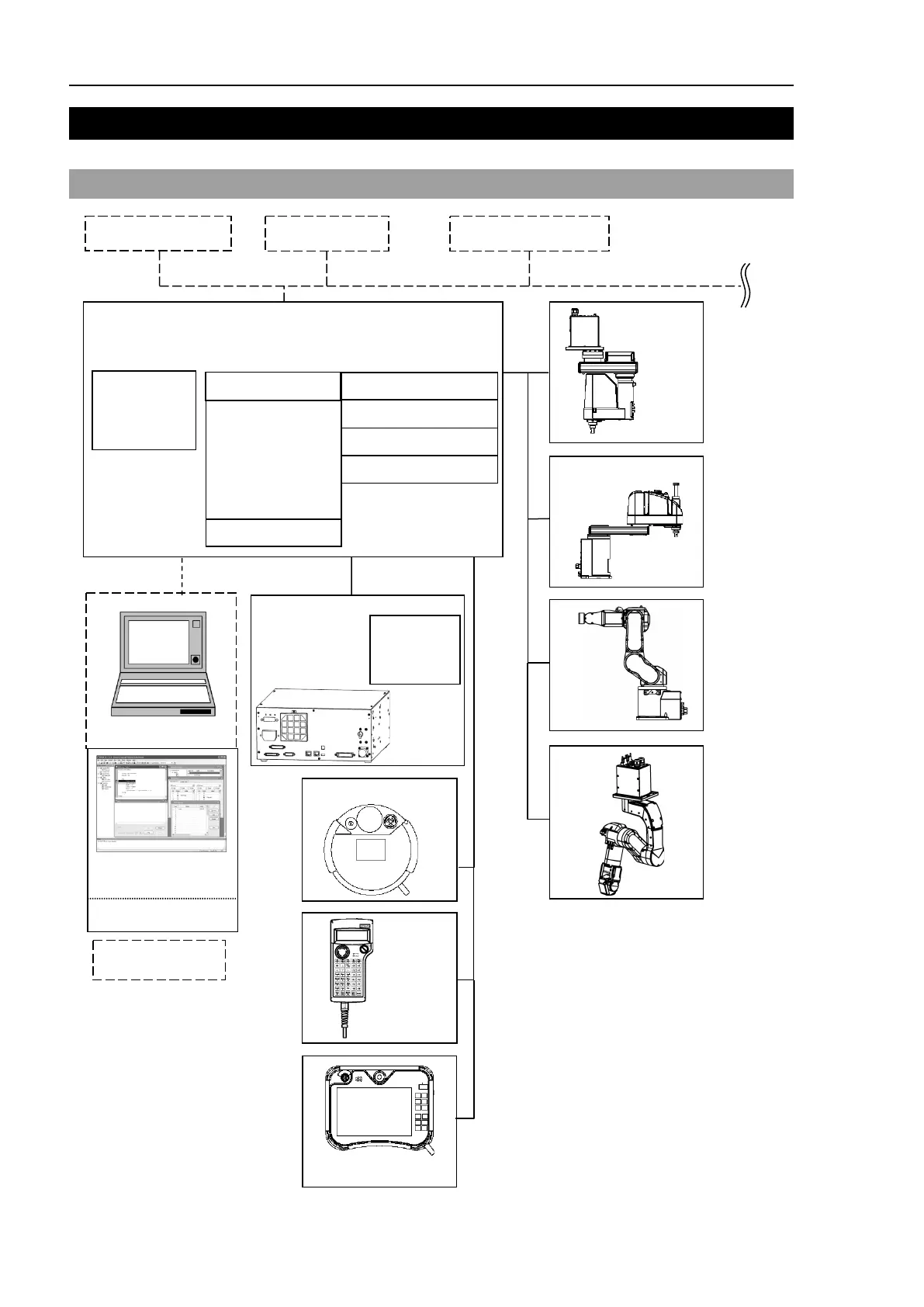

2.1 System Example
Operation Panel
Motion Controller
RC700 / RC700-A
Expansion I/O Board
Fieldbus
PROFIBUS-DP
DeviceNet
CC-Link
EtherNet/IP
PROFINET
EtherCAT
RS-232
C Board
Windows *1
PC
EPSON RC+ 7.0
software
Option
USB2.0 or
Ethernet
TP2
(Option)
Standard I/O
Remote I/O
Ethernet
RS-232C
Requires
preparation by uses
C4 series
C8 series
C12 series
PLC (Sequencer)
Option
Standard
Pulse Output Board
TP1 (Option)
G series
RS series
RC700DU/
RC700DU-A
* 2
* 3
TP3
(
Option)
* 5
* 5
N2
series
N6
series
* 4
Analog I/O Board
Force Sensor I/F Board
EUROMAP67 Board
Standard
Standard I/O
Remote I/O
Ethernet
RS-232C

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
