2.5.3 Wall Mounting Option
The control unit and drive unit have a wall mounting option. For the procedure about
installation, refer to RC700 Series Maintenance Manual.

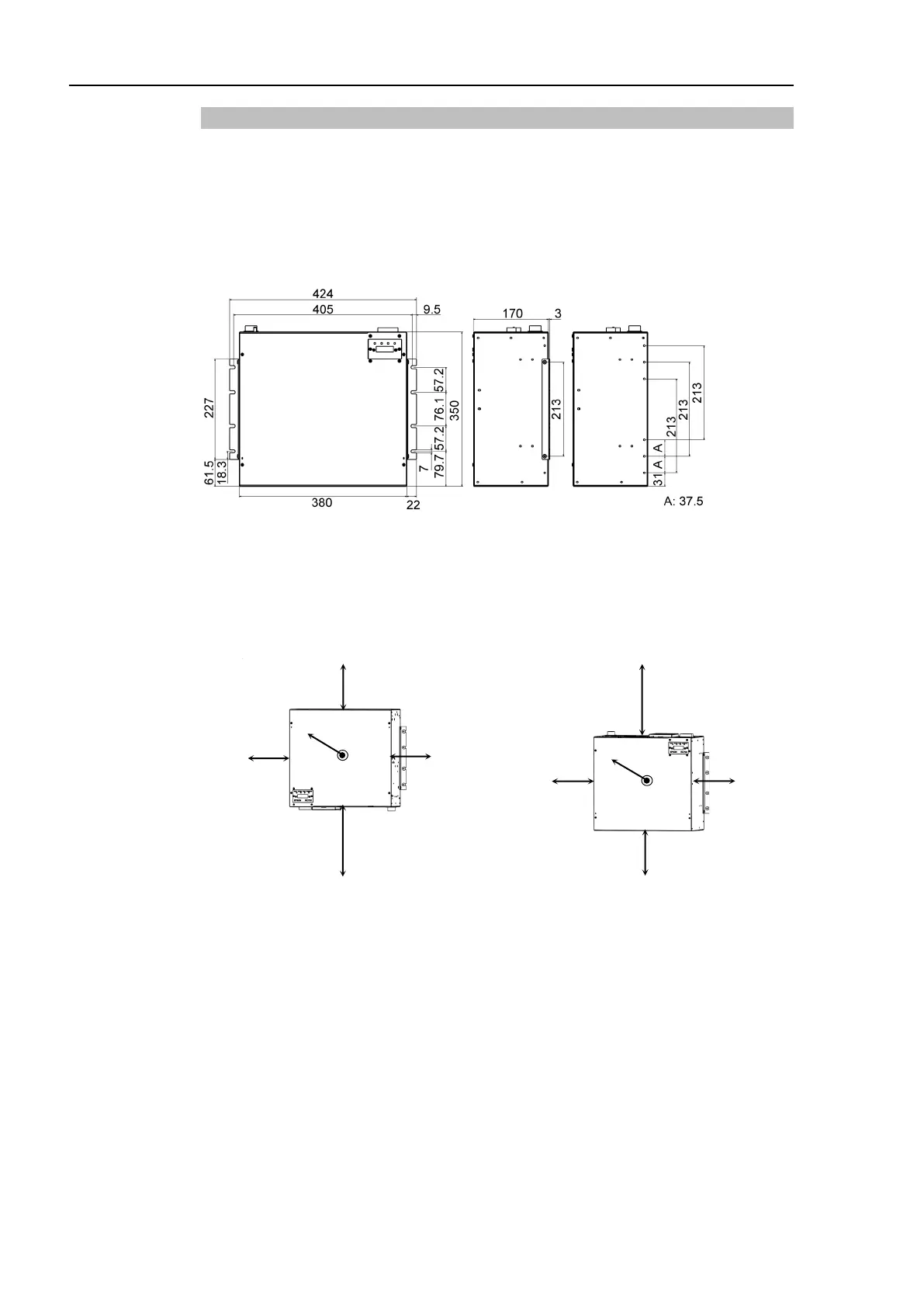

Controller outer dimensions when using the wall mounting option
Dimensions of the mounting holes for the wall
(Unit: mm)
Ensure the air flow around the supply and exhaust ports, and install the Controller while
leaving space from other equipment or walls as below.
* Keep the space about 200 mm or more on the top to maintenance.
Wall mounting with the front side down
100 mm
200 mm
50 mm *
50 mm
50 mm
Wall mounting with the front side up
100 mm
200 mm
50 mm *
50 mm
50 mm
