Epson RC700 Series Original Instructions

Functions 15. R-I/O Connector
RC700 Series Rev.3 163

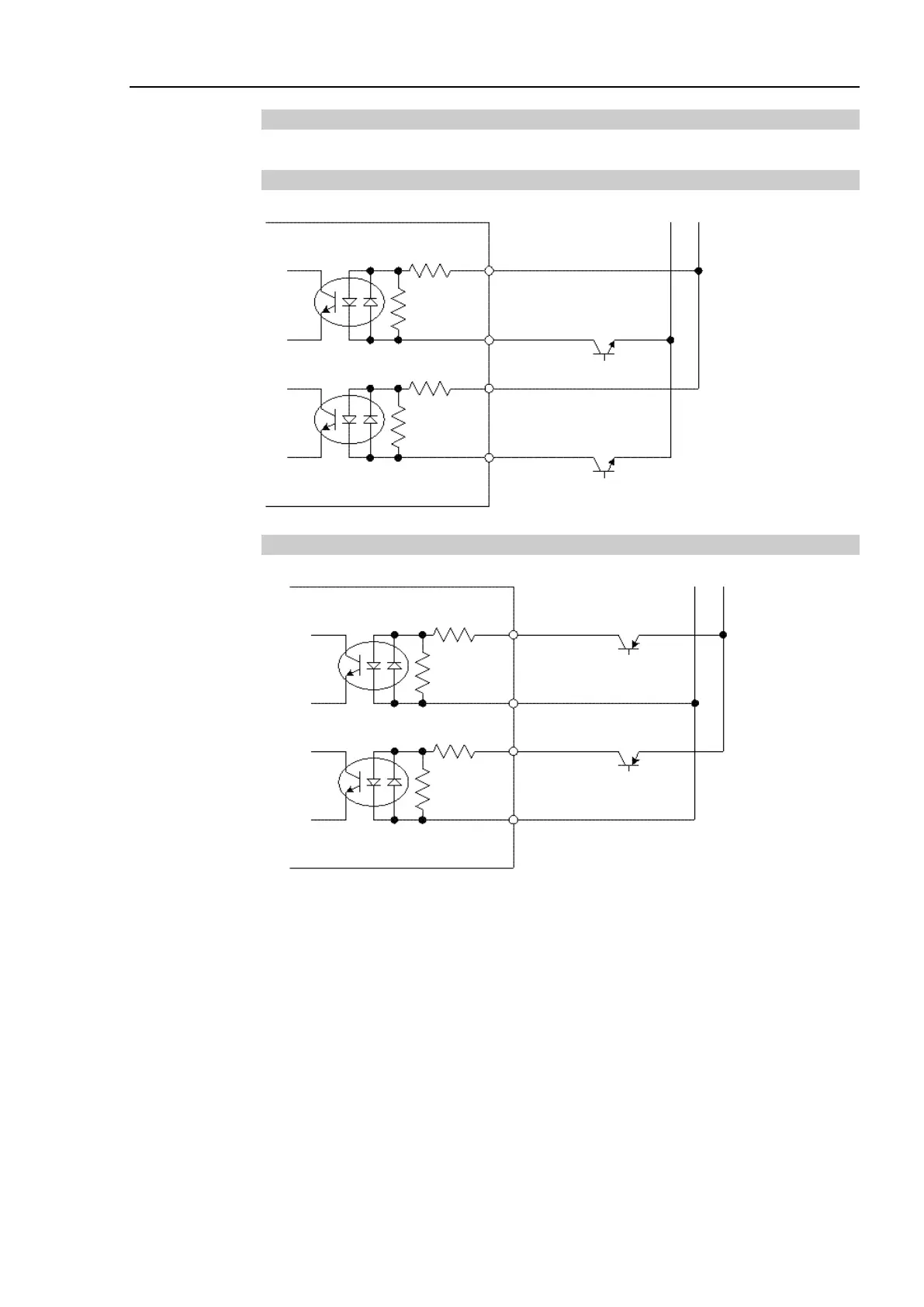

15.1.1 Input Circuit for Control Unit
The following two types of wiring are available in the input circuit for Control Unit.
Typical Input Circuit Application 1
R-I/O
INPUT No.24-1
INPUT No.24-2
INPUT No.25-1
INPUT No.25-2
GND +24V
9
10
11
12
Typical Input Circuit Application 2
R-I/O
INPUT No.24-1
INPUT No.24-2
INPUT No.25-1
INPUT No.25-2
GND +24V
9
10
11
12

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
