Circuit Diagrams – Drive unit

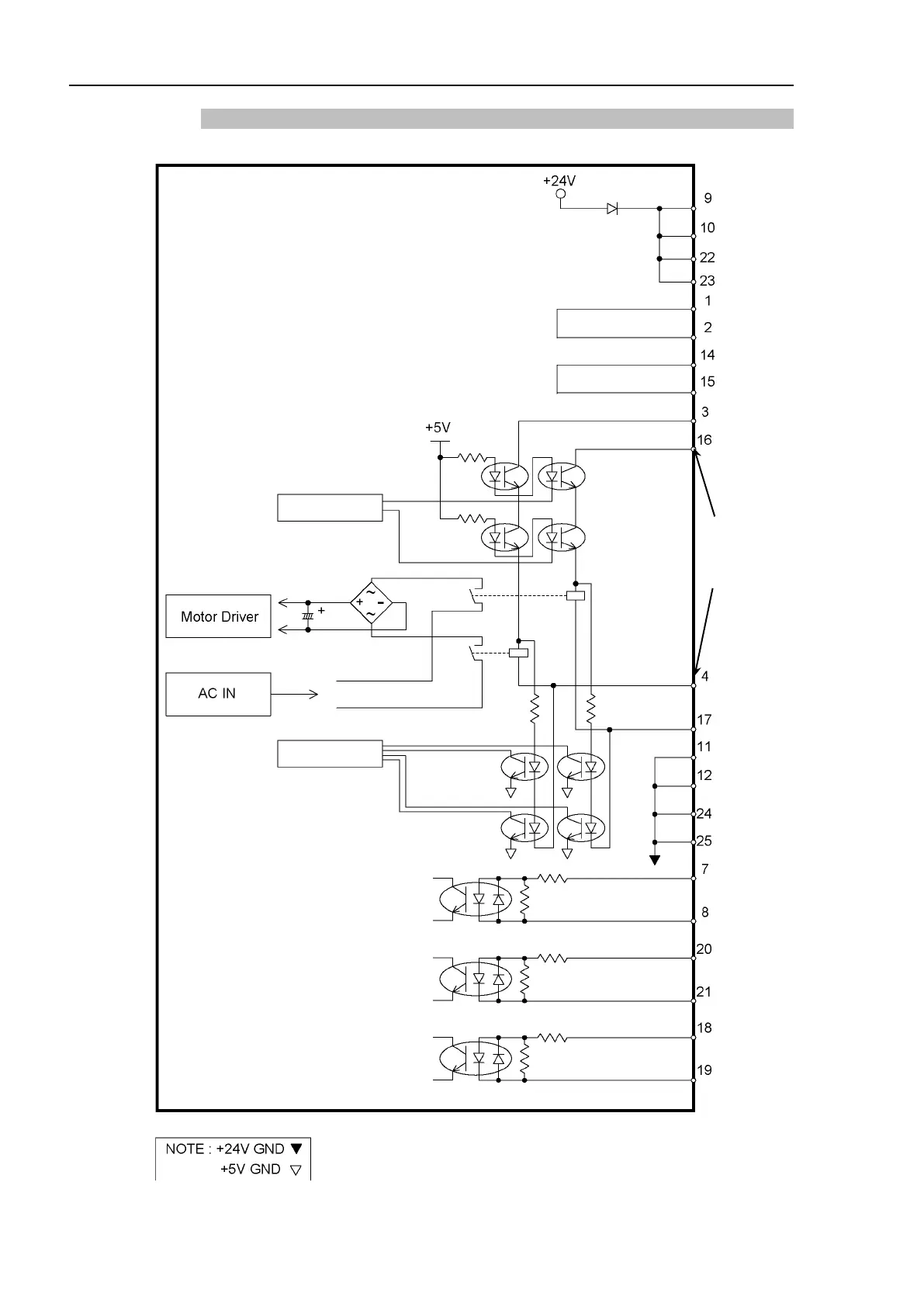

Circuit Diagram
Safety Door input 1
Safety Door input 2
Latch release input
Main Circuit
Control
Emergency
Stop detection
Drive unit
ESTOP1+
ESTOP2+
ESTOP1−
ESTOP2
−
Be careful of
the direction
of voltage
application
