Epson RC700 Series Original Instructions

Installation 4. First Step
60 RC700 Series Rev.3

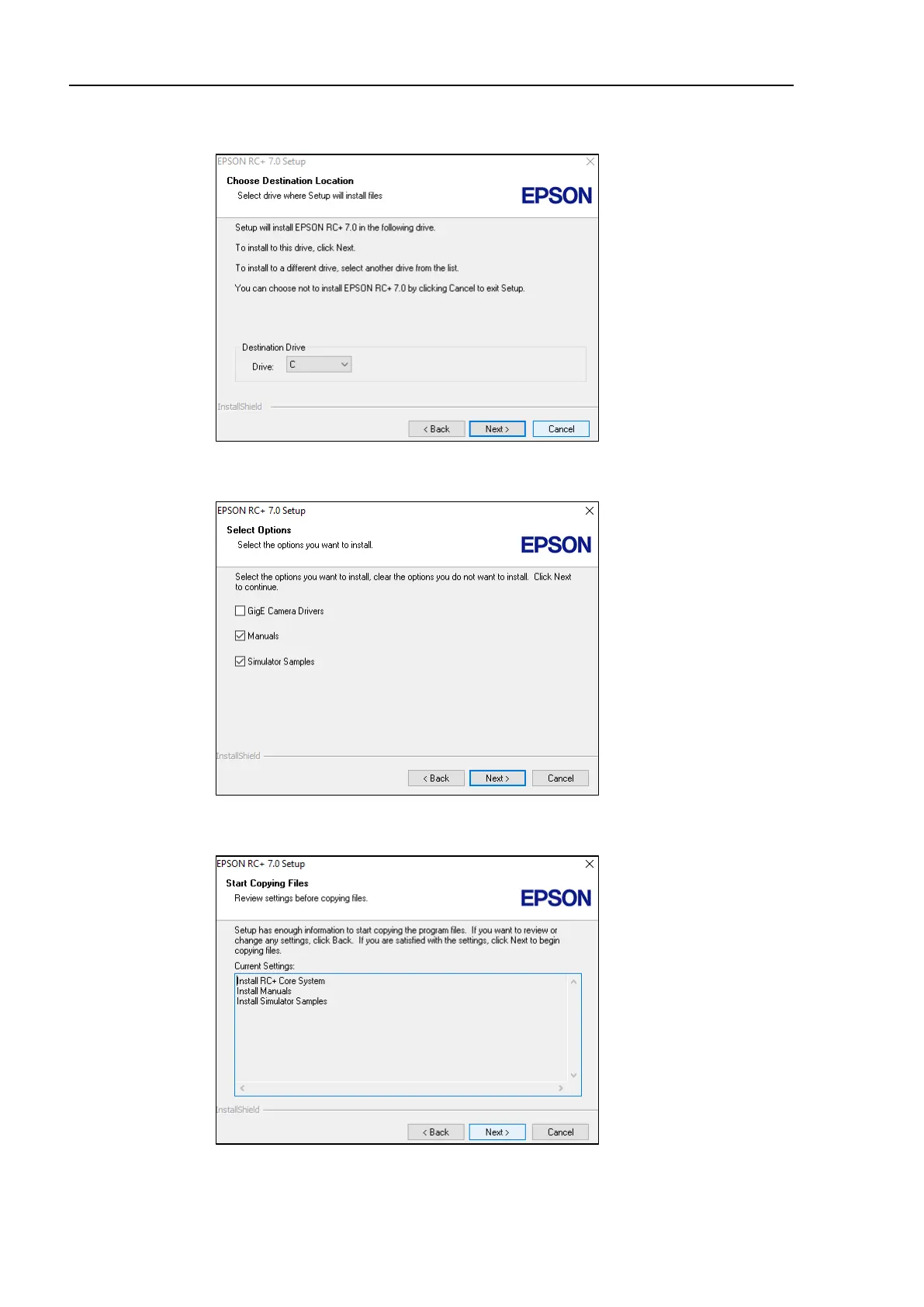

(4) Select the drive where you want to install EPSON RC+ 7.0 and click <Next>.
The installation directory is called EpsonRC70. This cannot be changed.
(5) The dialog box for selecting the options to be installed will be displayed. Check the
options you want to install and click <Next>.
(6) The dialog box
to review the settings will be displayed. If you are satisfied with the
settings, click <Next>.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
