Appendix D-16 Product Overview Rev. A
Confidential
Figure D-23
The head carriage assembly moves to the far right side immediately prior to the operation to
position the slip paper at the top.
Slip paper printing and paper feed operation
After the operation to position the paper at the top, printing can be performed. The paper feed
motor drives the slip feed roller upon the completion of printing of one line, feeding the paper
the prescribed distance. The slip paper can be fed in the forward or reverse direction by
controlling the energizing signal of the paper feed motor.

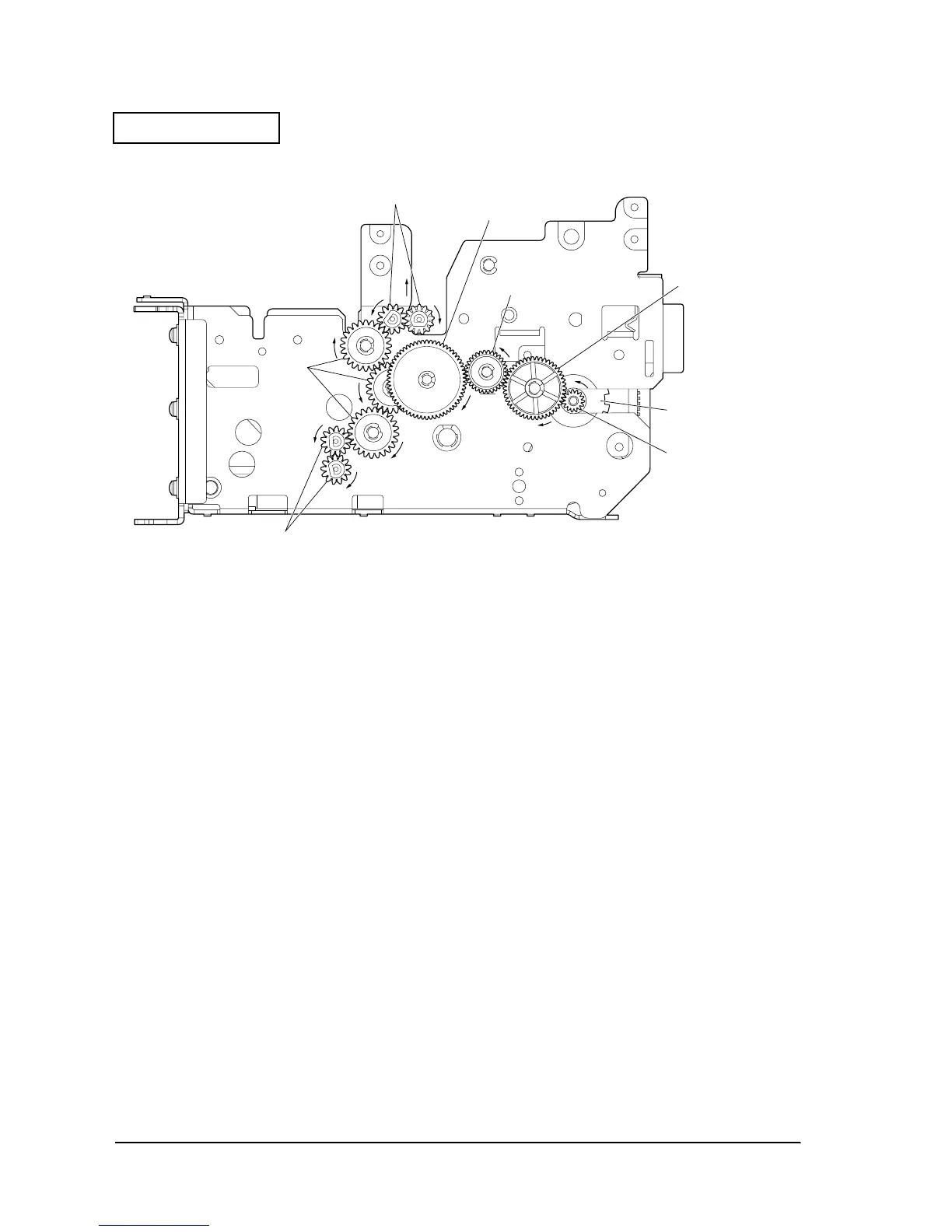

The slip feed mechanism gear assembly is comprised of the following parts:
❏ Paper feed motor gear for paper feed motor
❏ Paper feed transmission gear
❏ J/S change gear
❏ Paper feed reduction gear
❏ Slip transmission gear
❏ Slip drive gear
The driving force of the paper feed motor is transmitted to the slip feed roller and slip retainer
roller simultaneously via the gears, creating the force to feed the slip paper on the front and on
the back.
Slip transmission gear
Slip drive gear
Paper feed reduction gear
Paper feed transmission gear
Paper feed motor
Paper feed motor gear
J/S change gear
Slip drive gear
b
a
c
d
e
e
e
f
f
g
g
