Rev. A Product Overview Appendix D-15
TM-H6000/H6000P Service Manual
Confidential

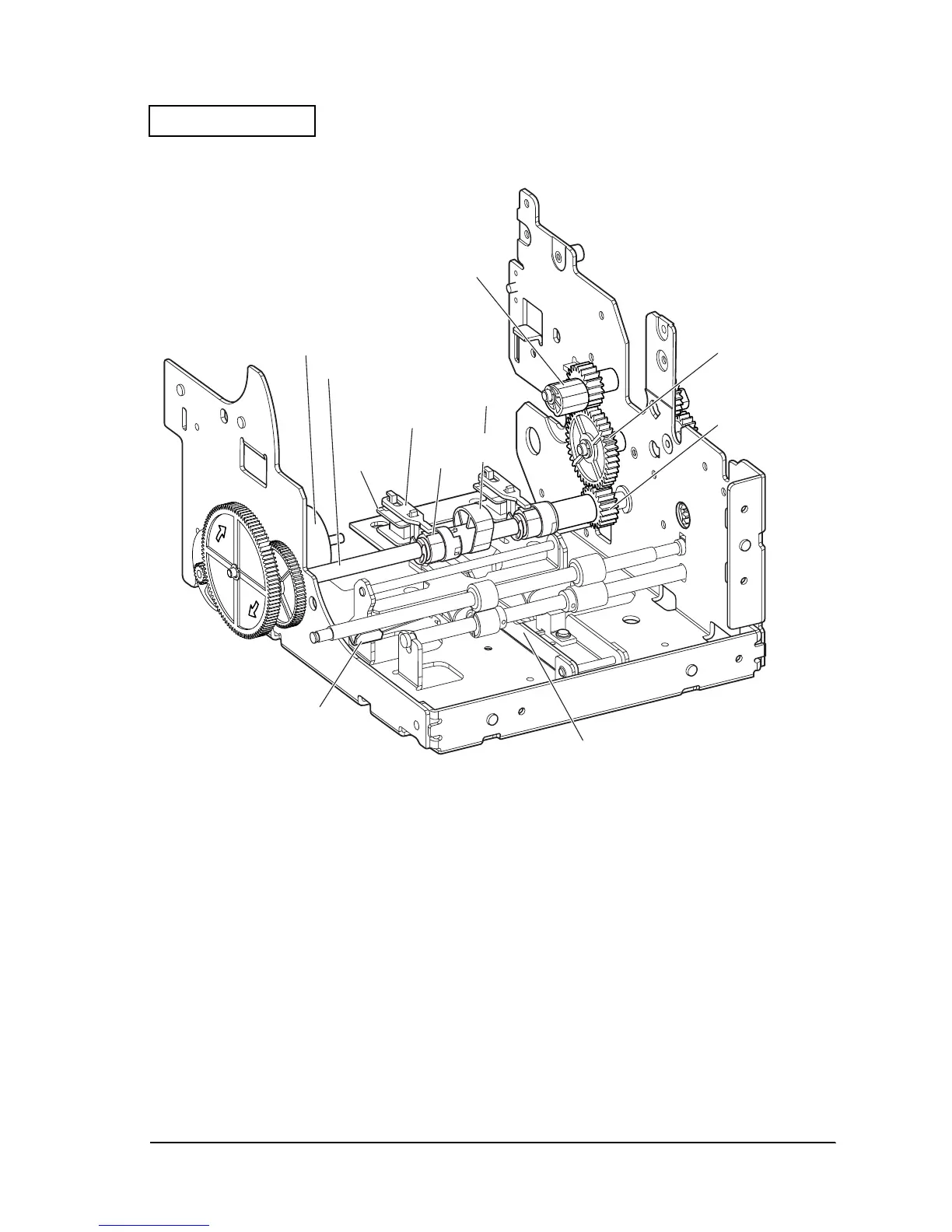

Figure D-22
After this, the paper feed motor is rotated a number of steps corresponding to the slip paper
format in the direction indicated by the arrow. The rotation force is transmitted to the slip feed
roller and sub slip feed roller by the gears, positioning the slip paper at the top. (see the figure
D-23 on the next page)
Lever drive
transmission gear
Lever drive gear
Sub slip feed lever
Form stopper
Lever drive shaft
Lever drive motor
Paper feed trigger
attraction plate
Lever drive cam
Lever drive
rachet wheel
Platen lever
drive cam
Lever drive
coil
To Next Page
