Rev. A Product Overview Appendix D-27
TM-H6000/H6000P Service Manual
Confidential
The impact plate around the sensor is integral with the frame plate. When the frame cover is
opened, the sensor is exposed, but the impact plate acts as a lightning rod, preventing discharge
of static electricity to the sensor, which would damage it. The paper detection circuit board is
connected to the intermediate circuit board by the paper end detector lead wire.

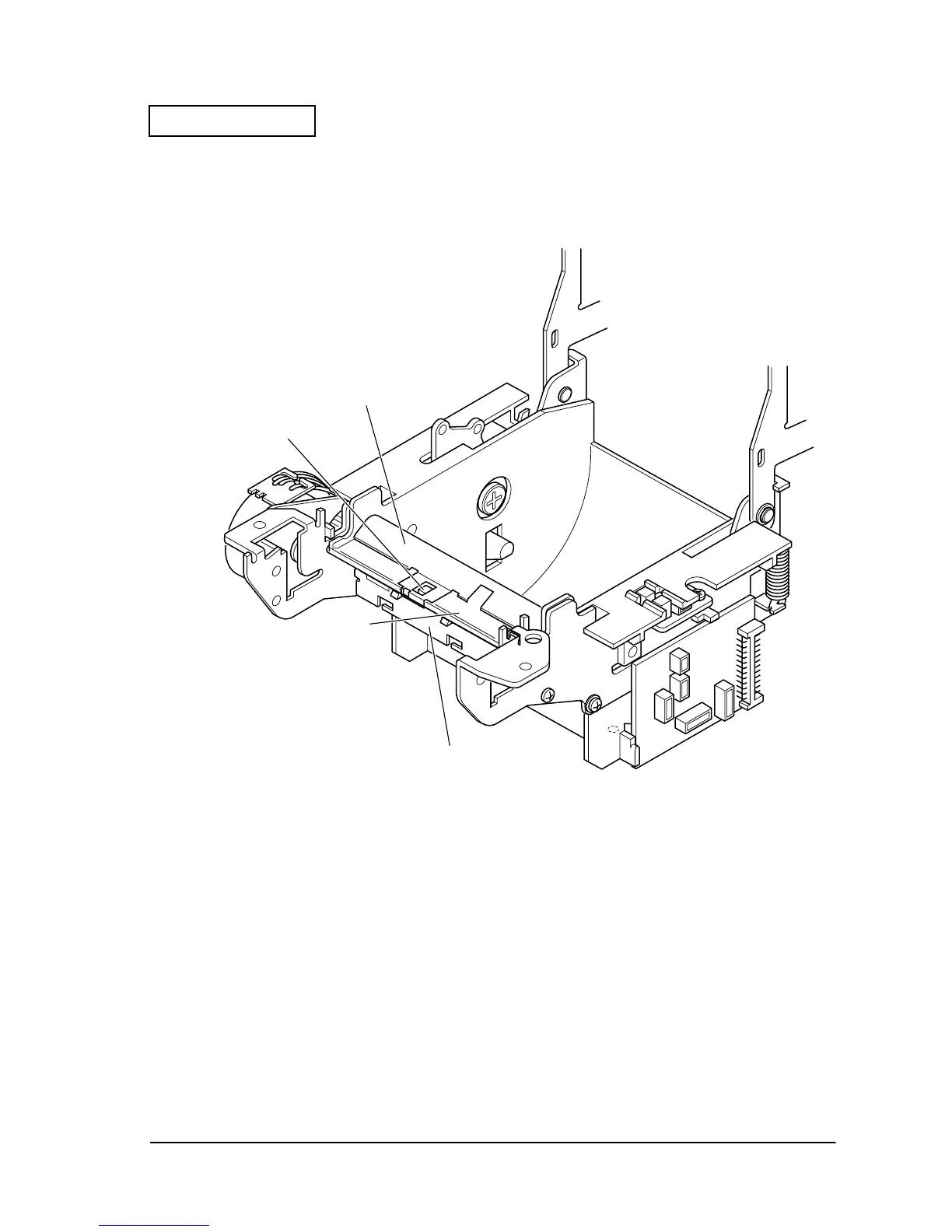

Figure D-35
paper guide
Photo sensor
Relaxation plate
Frame plate
