Rev. A Product Overview Appendix D-29
TM-H6000/H6000P Service Manual
Confidential

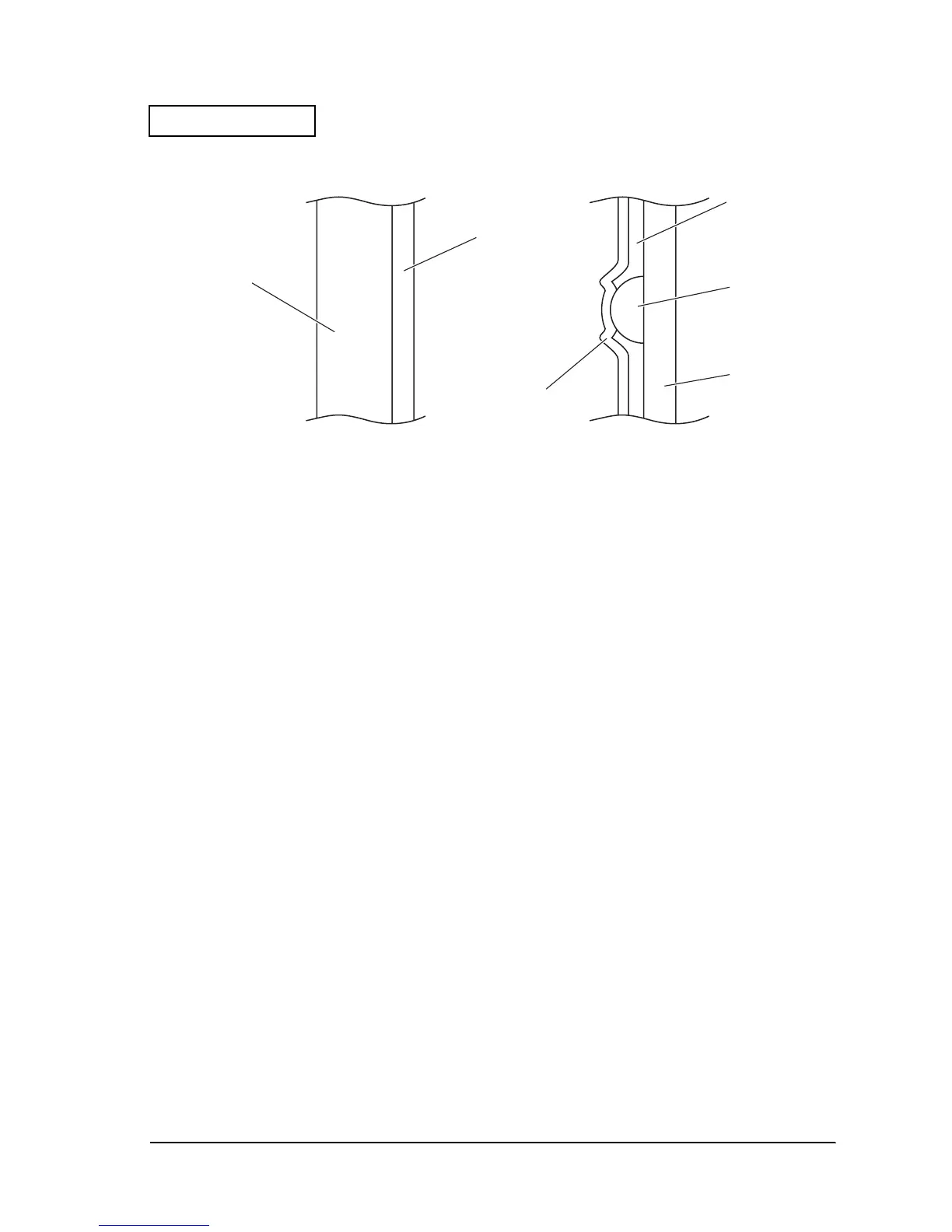

Figure D-37
Data input and printing
The serial printing data input from Data In is synchronized with the clock, transferred to the
shift register, and stored in the latch according to the timing of the latch signal. The stored
printing data is sent to the heating element when the gate is turned on by the strobe signal.
There are two strobe terminals among which drive is divided: Strobe 1 and Strobe 2.
Base
Thermal color
development layer
Protective layer
Electrode
Glaze
circuit board
