Rev. A Product Overview Appendix D-31
TM-H6000/H6000P Service Manual
Confidential

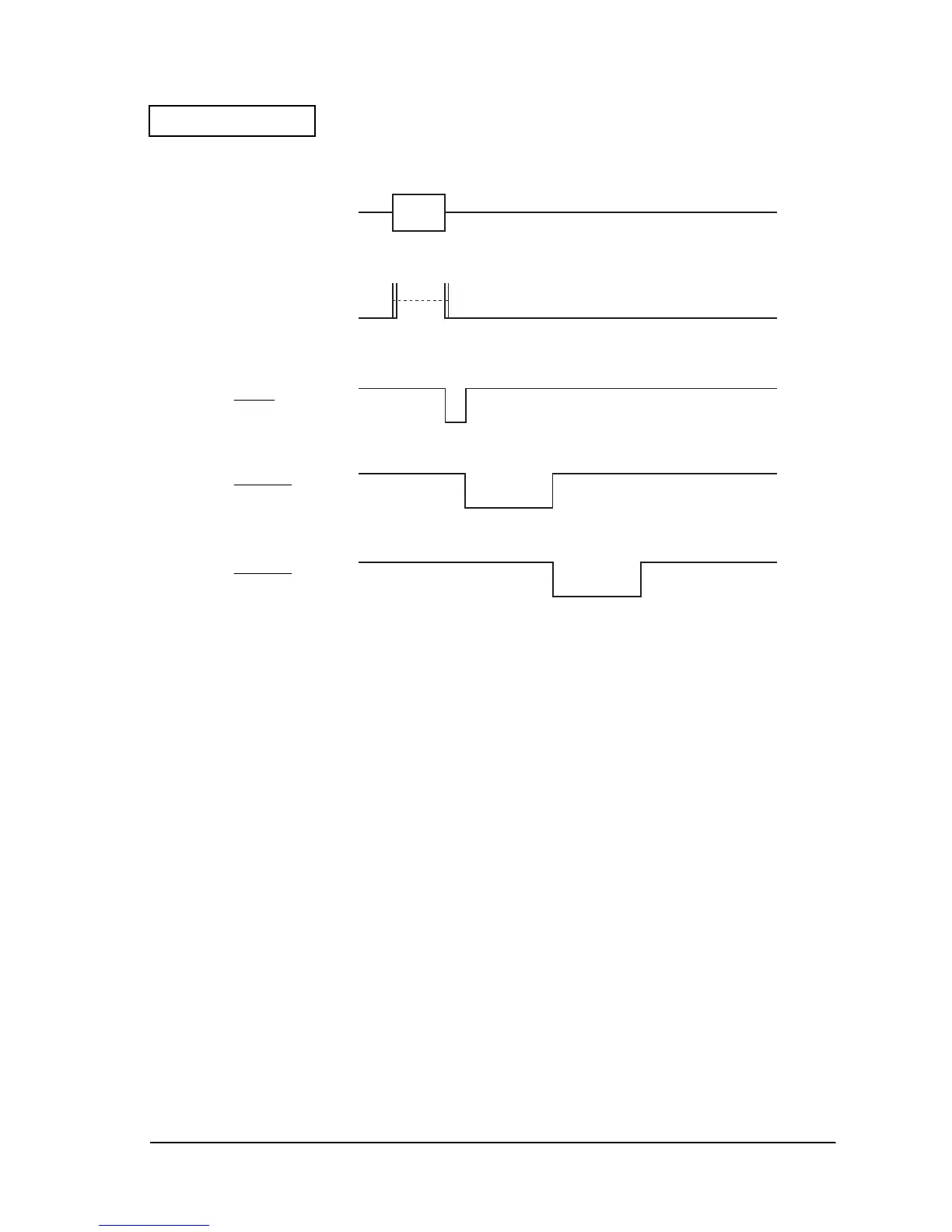

Figure D-39
Cutter Mechanism
This unit has an autocutter mechanism that cuts paper automatically, and a manual cutter that
allows the paper to be cut manually.
Autocutter mechanism
The basic principle of the autocutter mechanism is a scissors-like movement where the paper is
cut when two blades pass each other. The autocutter mechanism on this unit is of the type
where the cutter blades are separate, eliminating the necessity of feeding the paper through a slit
in the autocutter mechanism. The fixed blade and movable blade are completely separated
when the frame cover is opened. The fixed blade is located on the frame cover, and the movable
blade mechanism is located on the frame.
DATA IN 1,2
CLOCK
STROBE 2
STROBE 1
LATCH
*2
*1,*3
To Next Page
