Confidential

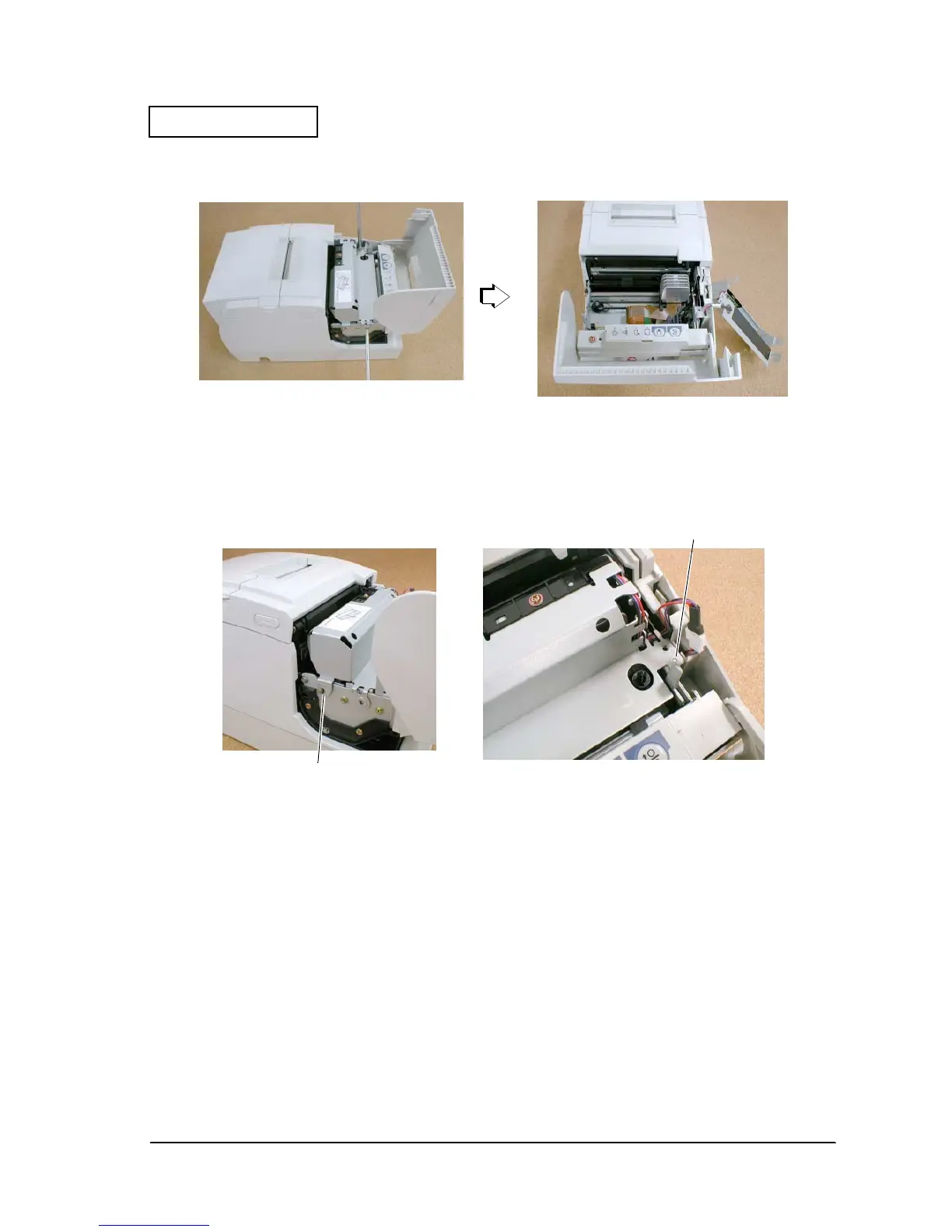

4. Remove the two screws and remove the carriage cover frame assembly.
Figure 1-10 Removing the carriage cover frame assembly
When you are reattaching the frame, insert the tooth on the left side into the shaft and align
the nib on the right side with the nib hole.
Figure 1-11 Tooth and nib
tooth
nib
