1.6 Printable Area
1) Paper roll
The printable area of a paper with width of 79.5 ± 0.5 mm {3.13 ± 0.02"} is 72.2 ± 0.2 mm {2.84 ±
0.008"} (512 dots) and the space on the right and left sides are approximately
3.7 ±2 mm {0.15 ± 0.079"}.
a
b
c
de

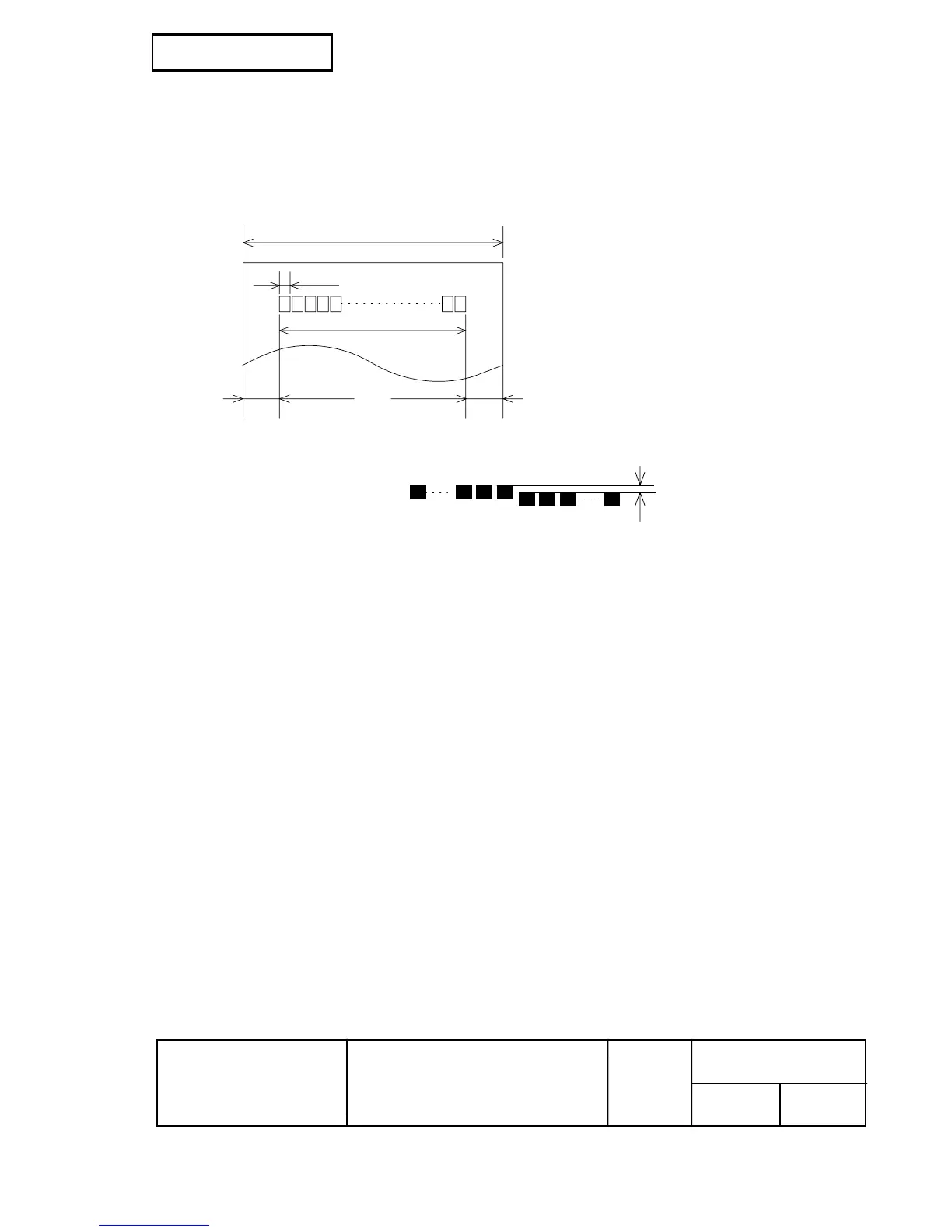

Figure 1.6.1 Paper Roll Printable Area
Approximately 0.07mm (0.0028")
1 256
257 512
Figure 1.6.2 Shifting of the Print Position
NOTE: The print position within the printable area of the thermal elements for dots 257 to 512 is
shifted approximately 0.07 mm {0.003"} in the paper feed direction from the position for dots 1
to 256. Be sure not to print a ladder bar code across both printable areas, as this can cause
variations in printing which are difficult to read. However, when the ladder bar code is printed
with level 2 of print density, the difference is only approximately 0.04 ∼ 0.05 mm
{0.0015∼0.0019"}.
a = 79.5 ± 0.5 mm {3.13 ± 0.02"}
b = 0.141 ± 0.05 mm {0.056 ± .002"}
c = 72.2 ± 0.2 mm {2.84 ± .008"}
d = 3.7 ± 0.2 mm {0.15 ± 0.079"}
e = 3.7 ± 0.2 mm {0.15 ± 0.079"}
[All the numeric values are typical.]
