TM-T88III series
Specification
(STANDARD)
APPENDIX C: ADJUSTING THE PAPER ROLL NEAR-END SENSOR
LOCATION
The remaining detectable amount of paper on the paper roll varies with the inside and outside
diameters of the paper core. The minimum detectable amount of paper on the paper roll can be set
using the following method:
1) The inside diameter of the paper spool should be 12mm {0.47"} and the outside diameter of the
paper spool should be 18mm {0.71"}. Specified thermal paper should be used.
2) Loosen the adjusting screw that holds the paper near-end sensor and set the top of the positioning
plate to the appropriate adjustment value and tighten the adjusting screw.
Adjust the positioning plate to #1 if the outside diameter of a paper roll to be used is 18mm.
Adjust the positioning plate to #2 if the outside diameter of a paper roll to be used is more than 18
mm.
Table C.1 Adjustment Positions
Adjustment Position Number
Specified Thermal Paper
Dimension of A
#1 Approximately 23 mm {0.97"}
#2 Approximately 27 mm {1.06"}
Position
detecting
Part

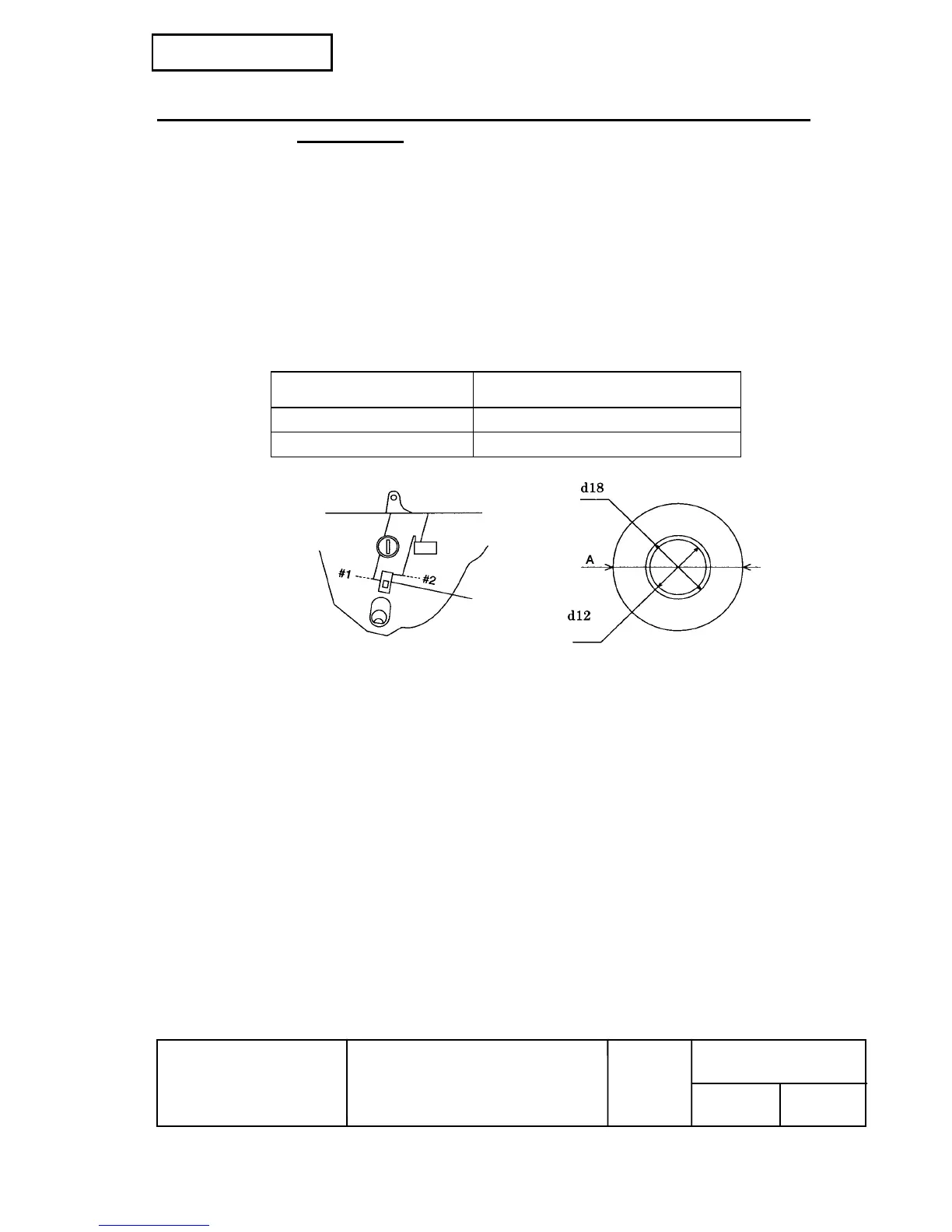

Figure C.1 Near-end Adjusting Position
NOTES: 1. Since dimension A in the table is a calculated value, there may be some variations
depending on the printer.
2. Be sure that the adjustable slider operates smoothly after you finish the adjustment.

Epson TM-T88III series Specifications

General

Print Method	Thermal line printing
Resolution	180 dpi
Paper Width	79.5 ± 0.5 mm
Print Speed	150 mm/sec
Interface	USB, Serial, Parallel, Ethernet
Autocutter	Partial cut
Dimensions	145 x 195 x 148 mm (W x D x H)
Power	24 V DC ±10%
Power Supply	External power supply (depending on model)
Paper Thickness	0.06 to 0.085 mm
