Epson TM-T88III series User Manual

Confidential
EPSON
TITLE
SHEET
REVISION
NO.
SHEETNEXT
28 27
TM-T88III series
Specification
(STANDARD)
B

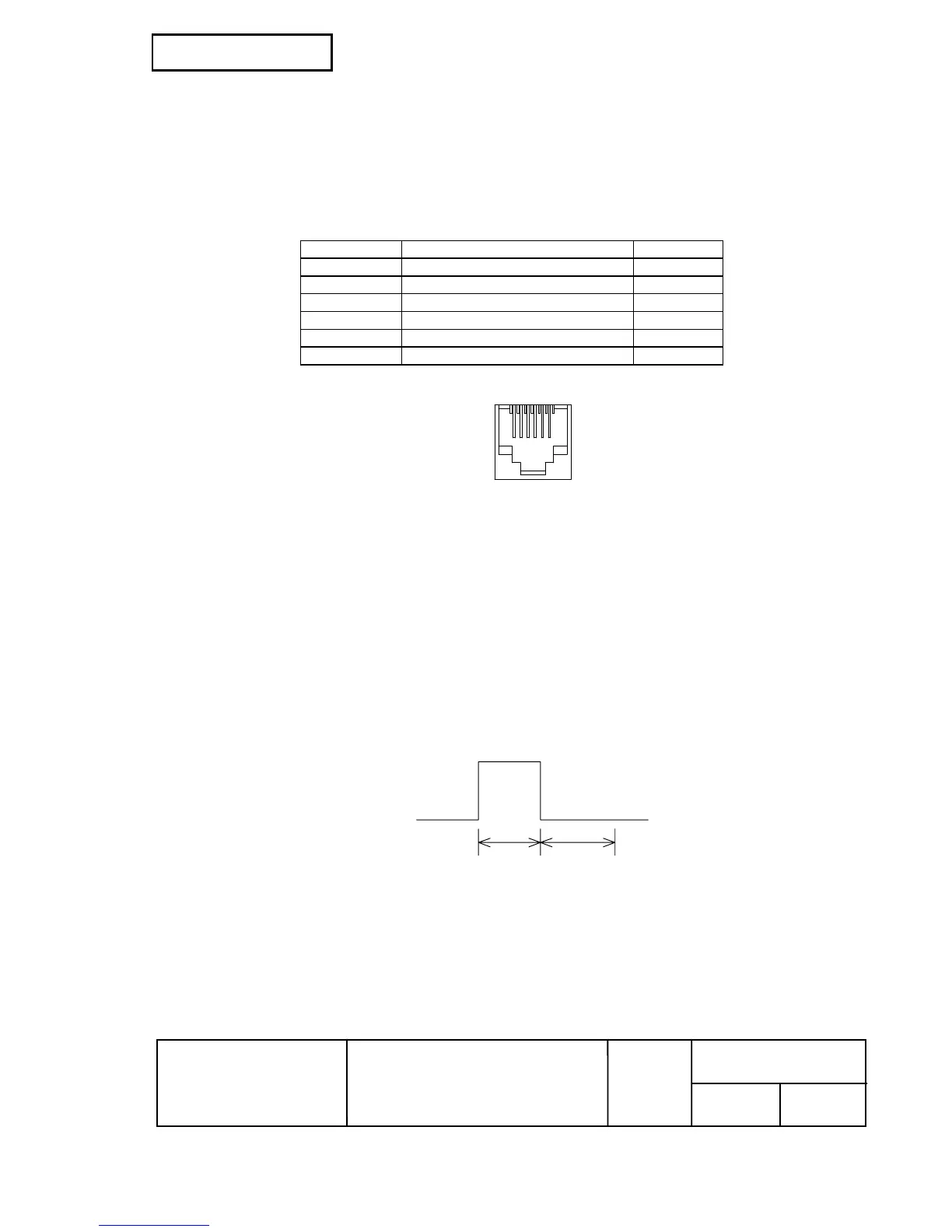

2.2.3 Drawer Kick-out Connector (Modular Connector)
The pulse specified by ESC p or DLE DC4 is output to this connector. The host can confirm the status
of the input signal by using the
DLE EOT, GS a, or GS r commands.
1) Pin assignments: Refer to Table 2.2.2
Table 2.2.2 Drawer Kick-out Connector Pin Assignments
Pin Number Signal Name Direction
1 Frame GND —
2 Drawer kick-out drive signal 1 Output
3 Drawer open/close signal Input
4 +24 V —
5 Drawer kick-out drive signal 2 Output
6 Signal GND —
+24 V is output through pin 4 when the power is turned on. However, pin 4 must be used only
for the drawer.
16
Figure 2.2.2 Drawer Kick-out Connector
2) Connector model: Printer side: MOLEX 52065-6615 or equivalent
User side: 6-position 6-contact (RJ12 telephone jack)
3) Drawer kick-out drive signal
Output signal: Output voltage: Approximately 24 V
Output current: 1 A or less
CAUTION: To avoid an overcurrent, the resistance of the drawer kick-out solenoid must be 24 Ω
or more.
Output waveform: Outputs the waveforms in Figure 2.2.3 to the points A and B in
Figure 2.2.4.
t1 (ON time) and t2 (OFF time) are specified by ESC p or DLE DC4.
t 1x 2 msec
t 1x 2 msec
Figure 2.2.3 Drawer Kick-out Drive Signal Output Waveform
t2 x 2 mst1 x 2 ms

Epson TM-T88III series Specifications

General

Print Method	Thermal line printing
Resolution	180 dpi
Paper Width	79.5 ± 0.5 mm
Print Speed	150 mm/sec
Interface	USB, Serial, Parallel, Ethernet
Autocutter	Partial cut
Dimensions	145 x 195 x 148 mm (W x D x H)
Power	24 V DC ±10%
Power Supply	External power supply (depending on model)
Paper Thickness	0.06 to 0.085 mm
