APPENDIX H: CONFIGURING THE SPACE PAGE
The space page is the character code table where character codes 80H to FFH are all spaces. This
character code table is selected when
n is set to 255 using the character code table selection command
ESC t n.
1) Space page top address (*1)
Table H.1 Space Page Top Address
Space page top address
Page Character Table
12
× 24 9 × 17
255 Space page FCA480H FCBC80H
2) Calculating the character data top address
The character data top address is calculated as follows:
• 12 × 24 font (graphics)
Character data top address = FCA480H + (character code - 80H)
× 48
• 9 × 17 font (graphics)
Character data top address = FCBC80H + (character code - 80H)
× 34
3) Example configuring the font data
• 12 × 24 font (in case of character code 90H on page 255)
Character data top address FCA480H+(90H-80H)
×48 = FCA780H

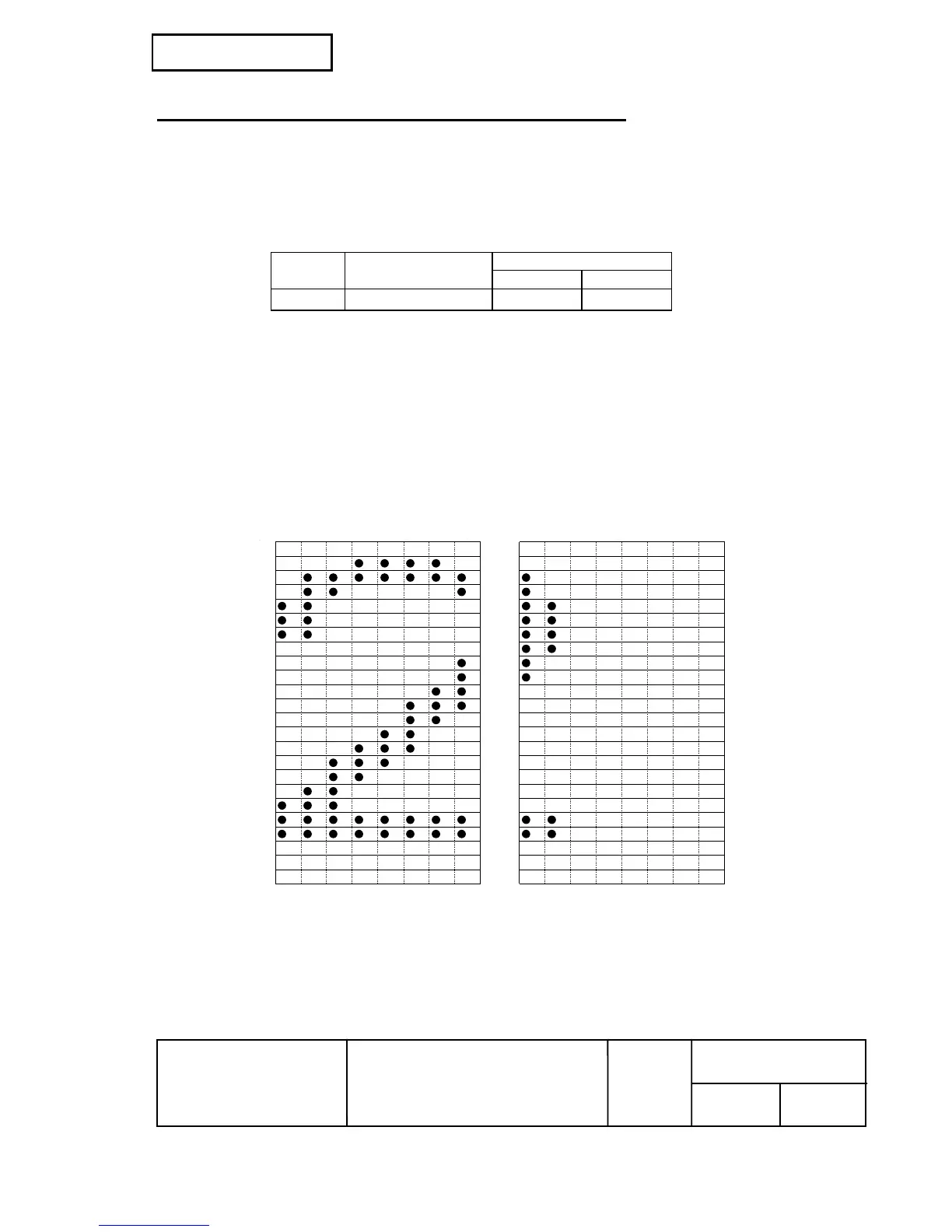

Figure H.1 12 ×
××
×24 Font
NOTE: (*1) The space page top address is used for writing character data on to a flash ROM. The
address only for a ROM itself is the result of the above address minus F80000H.
