TM-T88III series
Specification
(STANDARD)
B
2.2 Connectors
2.2.1 Interface Connectors
Refer to Section 2.1, Interface.
2.2.2 Power Supply Connector
This connector is used to connect the printer to an external power source.
1) Pin assignments: Refer to Table 2.2.1.
Table 2.2.1 Power Supply Connector Pin Assignments
Pin Number Signal Name
1 +24 V
2 GND
3 NC
SHELL F.G.
SHELL

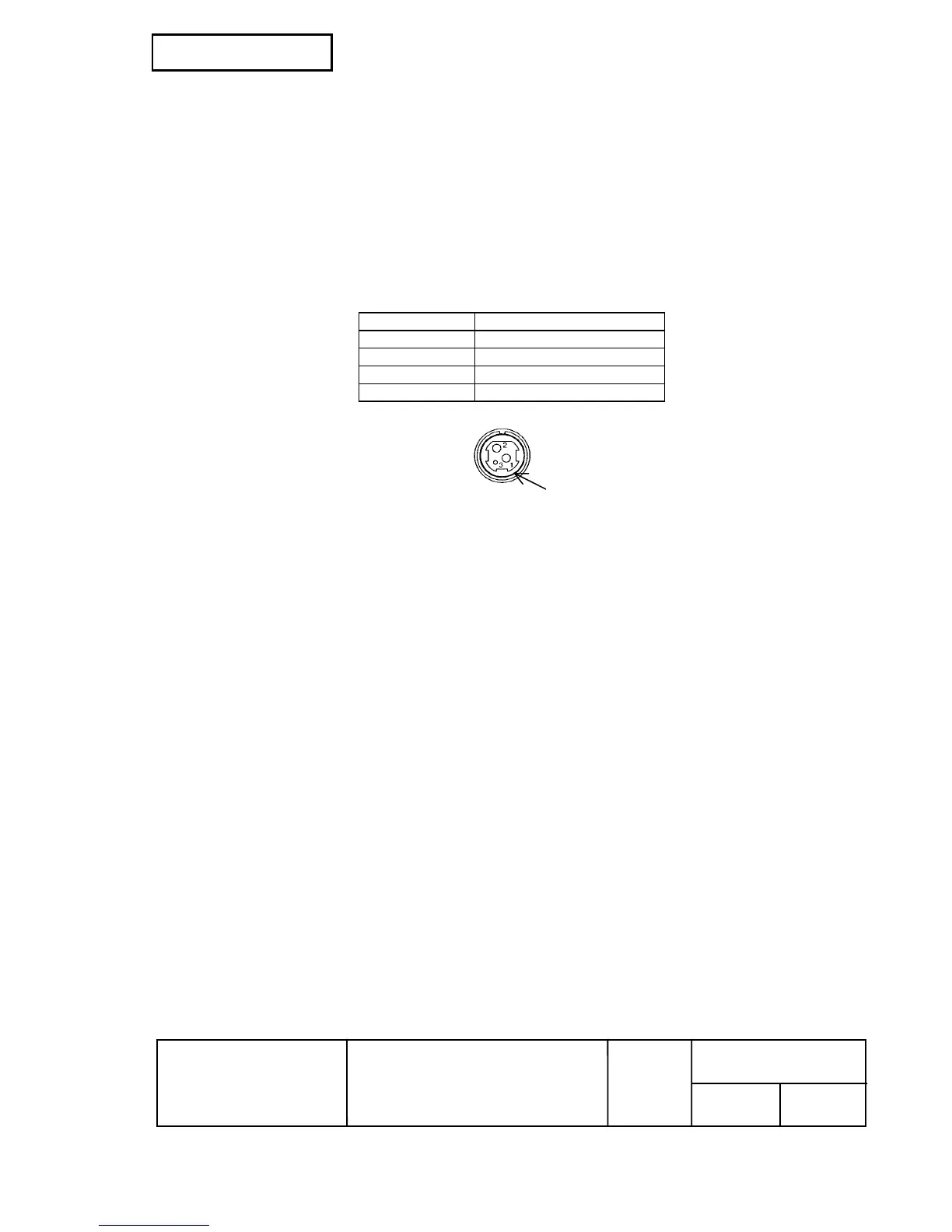

Figure 2.2.1 Power Supply Connector
NOTE: Be sure to ground the metal of the interface using the hole for the frame ground.
2) Connector model: Printer side: Hosiden TCS7960-532010 or equivalent
User side: Hosiden TCP8927-631100 or equivalent
Hosiden TCP8927-531100 or equivalent

Epson TM-T88III series Specifications

General

Print Method	Thermal line printing
Resolution	180 dpi
Paper Width	79.5 ± 0.5 mm
Print Speed	150 mm/sec
Interface	USB, Serial, Parallel, Ethernet
Autocutter	Partial cut
Dimensions	145 x 195 x 148 mm (W x D x H)
Power	24 V DC ±10%
Power Supply	External power supply (depending on model)
Paper Thickness	0.06 to 0.085 mm
