2.1.3.4 XON/XOFF transmit timing
Refer to Section 2.1.1.4.
For the DIP switch settings of the offline status, refer to Section 2.1.1.6.

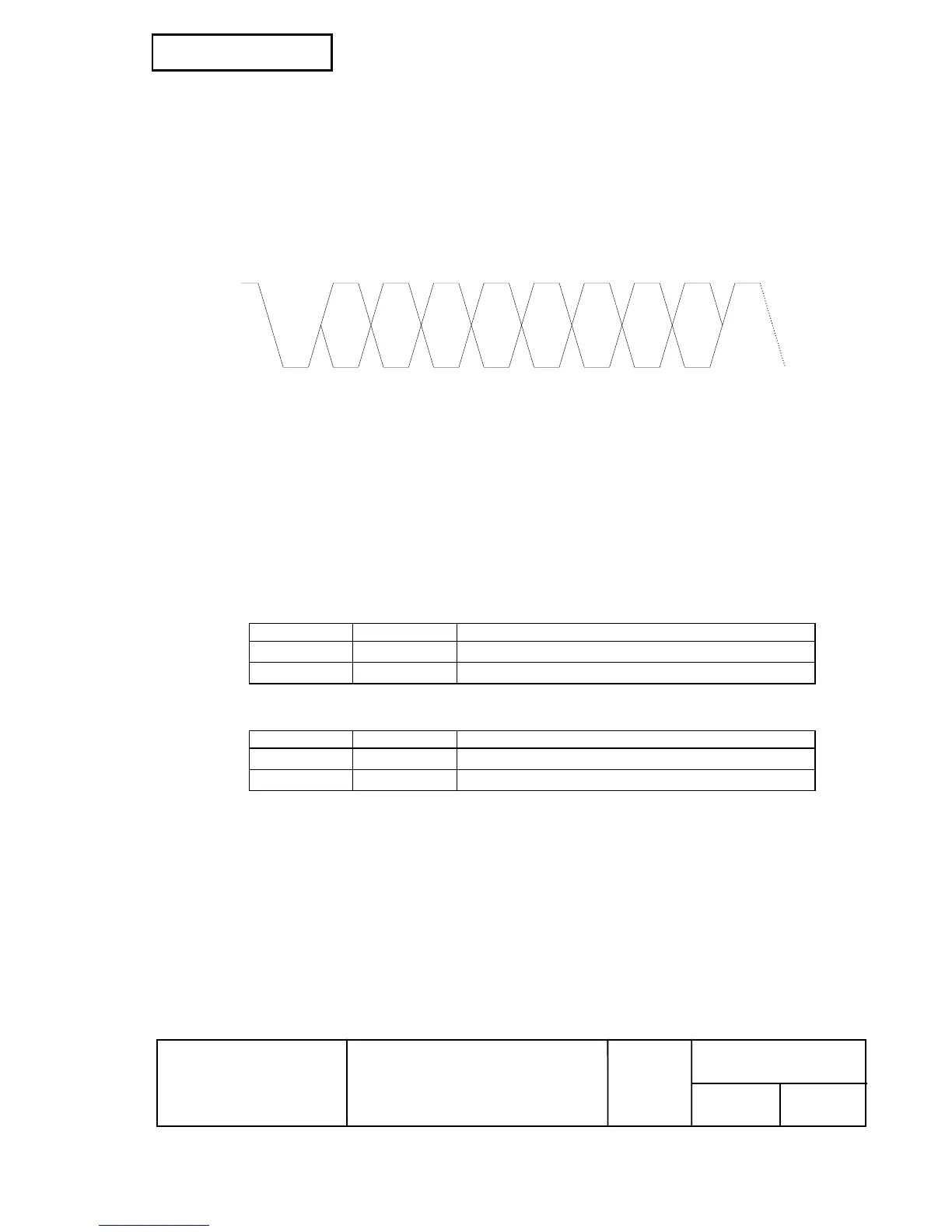

2.1.3.5 Data format when using RS-485
Transmission data (8 bits, none parity)
START STOP
H
123 45678
L
RS-485 Communication data format
“H” indicates
<Printer transmission data> SD1<SD2
<Printer reception data> RD1<RD2
“L” indicates:
<Printer transmission data> SD1>SD2
<Printer reception data> RD1>RD2
The transmission data is H = 1, L = 0
NOTE: This format is used when the UART for RS-232 is connected to the RS-485 driver.
Printer Reception Data Level
DR1 DR2 Read data
H L Receiving data line is low level
L H Receiving data line is high level
Printer Transmission Data Level
SD1 SD2 Send data
H L Sending data line is low level
L H Sending data line is high level
2.1.4 Other Interfaces
Various interface boards (EPSON UB series) can be used.

Epson TM-T88III series Specifications

General

Print Method	Thermal line printing
Resolution	180 dpi
Paper Width	79.5 ± 0.5 mm
Print Speed	150 mm/sec
Interface	USB, Serial, Parallel, Ethernet
Autocutter	Partial cut
Dimensions	145 x 195 x 148 mm (W x D x H)
Power	24 V DC ±10%
Power Supply	External power supply (depending on model)
Paper Thickness	0.06 to 0.085 mm
