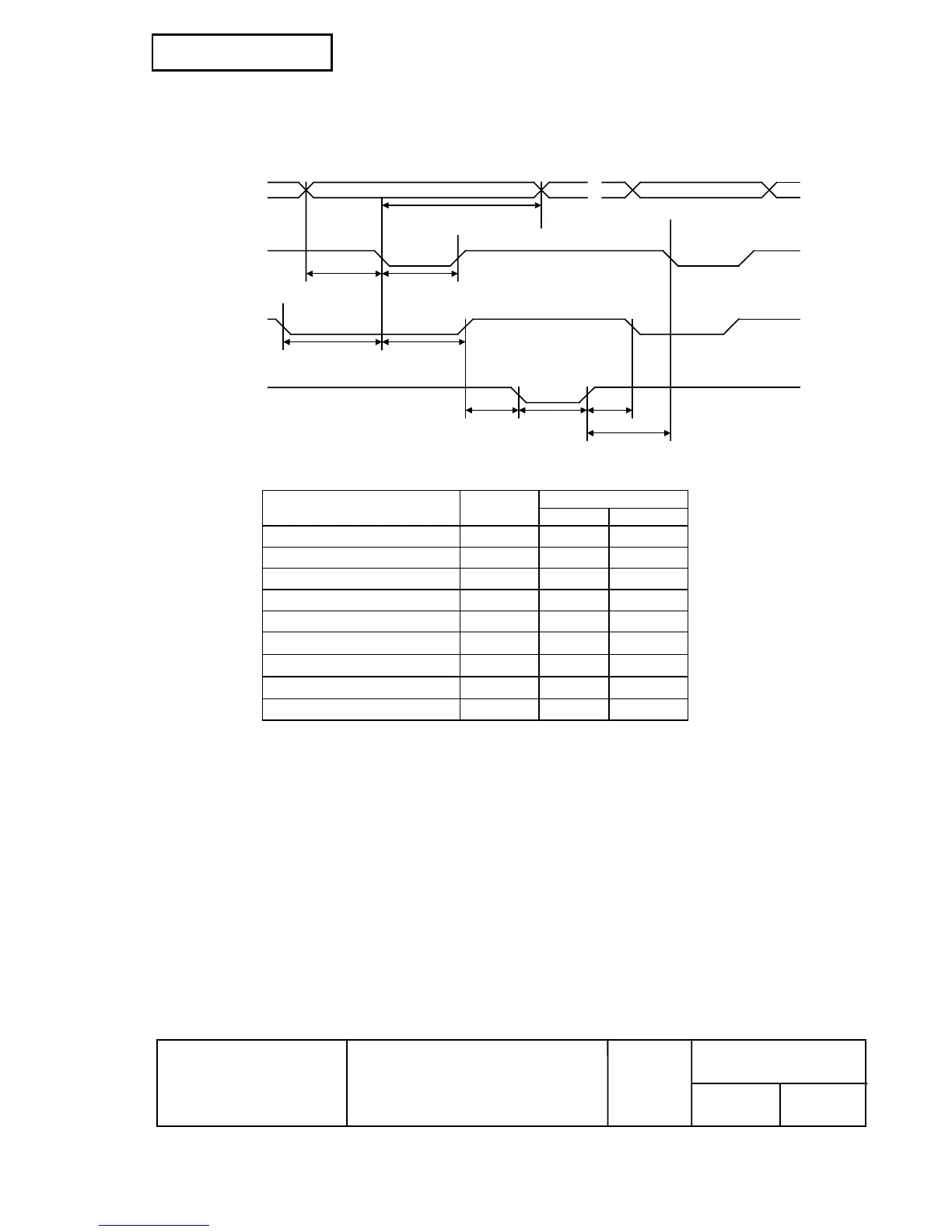

2.1.2.5 Data Receiving Timing (Compatibility Mode)
DATA Data n Data n+1
nStrobe
Busy Peripheral Busy
nAck
tHold
tSTB tSetup
tBUSYtReady
tNext
tnBUSYtACK tReply
Specifications
Characteristics Symbol
Min[ns] Max[ns]
Data Hold Time (host) tHold 750 --
Data Setup Time tSetup 750 --
STROBE Pulse Width tSTB 750 --
READY Cycle Idle Time tReady 0 --
BUSY Output Delay Time tBUSY 0 500
Data Processing Time tReply 0
∞
ACKNLG Pulse Width tACK 500
10µs
BUSY Release Time tnBUSY 0
∞
ACK Cycle Idle Time tNext 0 --
*The printer latches data at a nStrobe ↓ timing
