Test procedure
1. Set test specimen to:
AUTO CUT, Effect 8, 300 watts
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via CUT button on the electrode handle.
4. Determine and document measured value. The tolerance range
is 240 to 360
watts.
Only relevant with VIO 300 D
1. Set test specimen to:
DRY CUT
1
, Effect 8, 200 watts
2. Set HF power meter tof:
RL = 500 ohms
3. Activate test specimen via CUT button on the electrode handle.
4. Determine and document measured value. The tolerance range
is 160 to 240
watts.

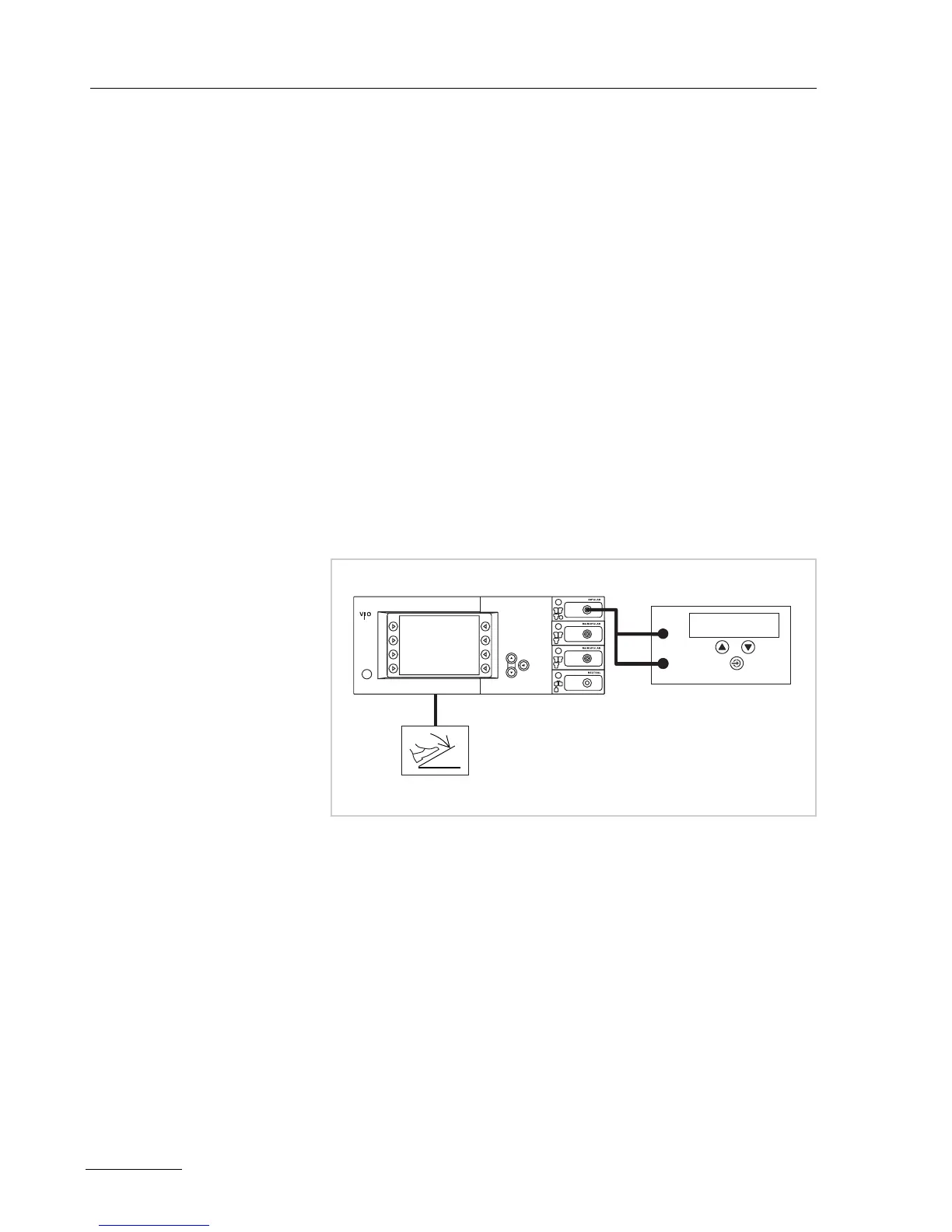

BIPOLAR CUT Test set-up of the bipolar receptacle
Fig. 10-9
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
• The dual-pedal footswitch with ReMode is connected.
1. The DRY CUT is only standard scope of supply with VIO 300 D electrosurgical units. With
VIO 200 D electrosurgical units it can be purchased and installed as an upgrade. For details
of how to test DRY CUT with VIO 200 D electrosurgical units see chapter "Performance test
upgrades".
ERBE
HF power meter
Bipolar
