10 • Maintenance and servicing
Art.-Nr.: 80116-271 04.06
Test procedure
1. Set test specimen to:
BIPOLAR CUT, Effect 8, 100 watts
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via CUT pedal on the footswitch.
4. Determine and document measured value. The tolerance range
is 80 to 120
watts.
BIPOLAR CUT+
(only if there is an
MF receptacle)

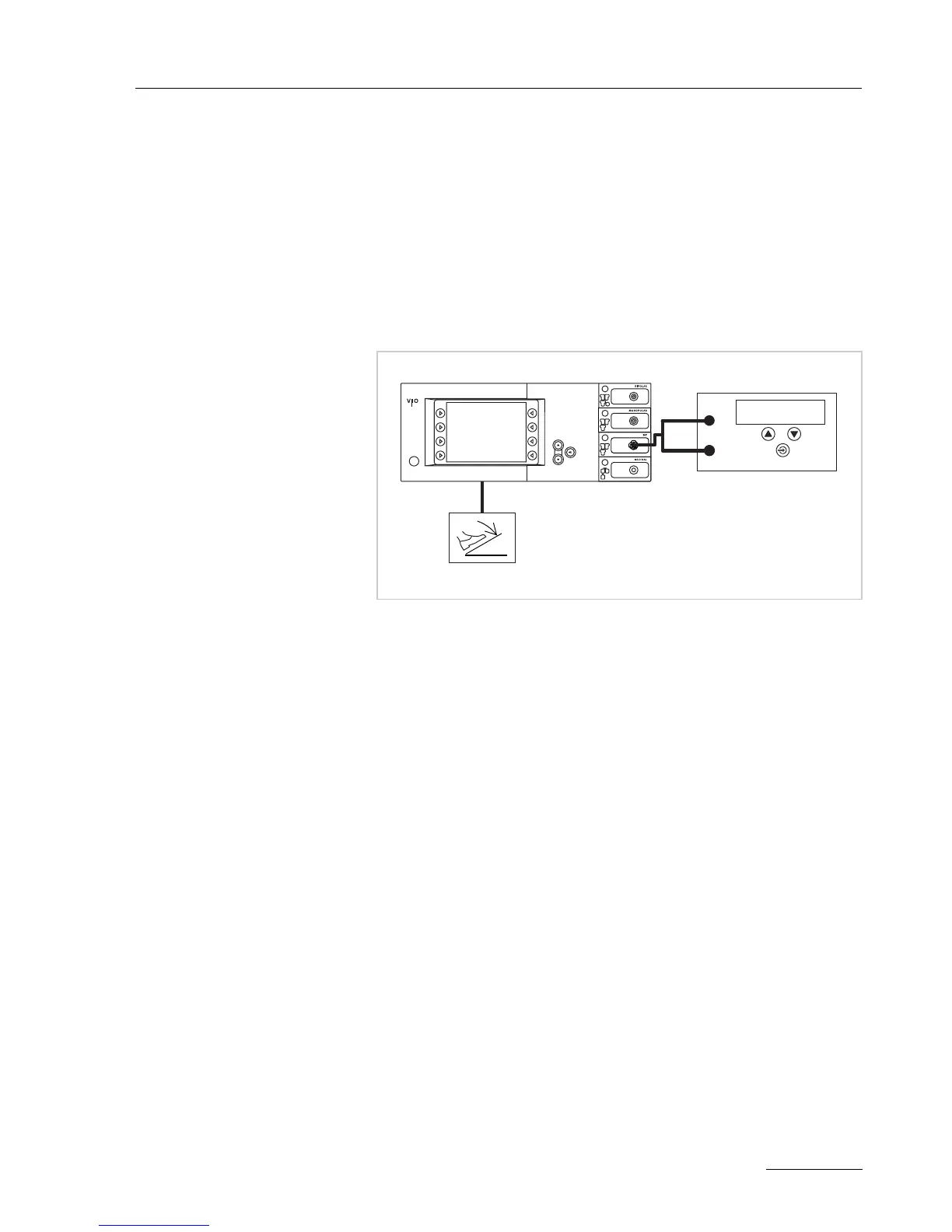

Test set-up of the multifunctional receptacle
Fig. 10-10
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
• The dual-pedal footswitch with ReMode is connected.
Test procedure
1. Set test specimen to:
BIPOLAR CUT+, Effect 8
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via CUT pedal on the footswitch.
4. Determine and document measured value. The tolerance range
is 296 to 400
watts.
ERBE
HF power meter
Bipolar
