Using a MIB Browser
164 1553-CNH 160 0787 Uen PA2 2005-09-23

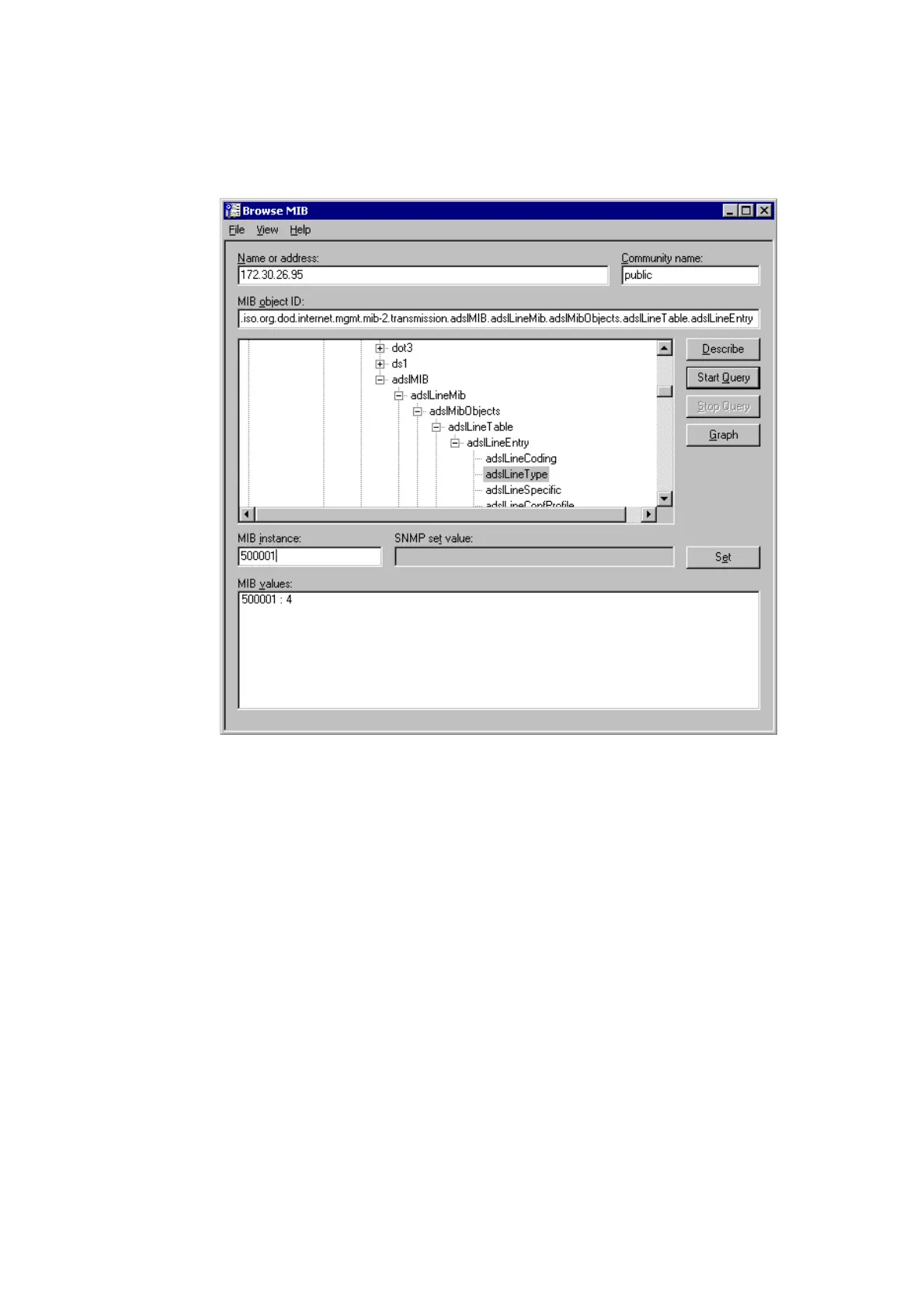

Figure 45 Querying ADSL Line Type
Figure 46 on page 165 show an example of how to retrieve the VLAN ID
that the traffic from PVC 1 is mapped to. A parameter, which is part of the
private IpDSLAMModemPool_BRIDGE MIB. This parameter requires a
PVC as an instance as well as the Line Identification, which is given as
500001.1 (port one of an EDN connected directly to port five of the ECN
and PVC 1). The result of the query is two.
