Using a MIB Browser
1553-CNH 160 0787 Uen PA2 2005-09-23
163

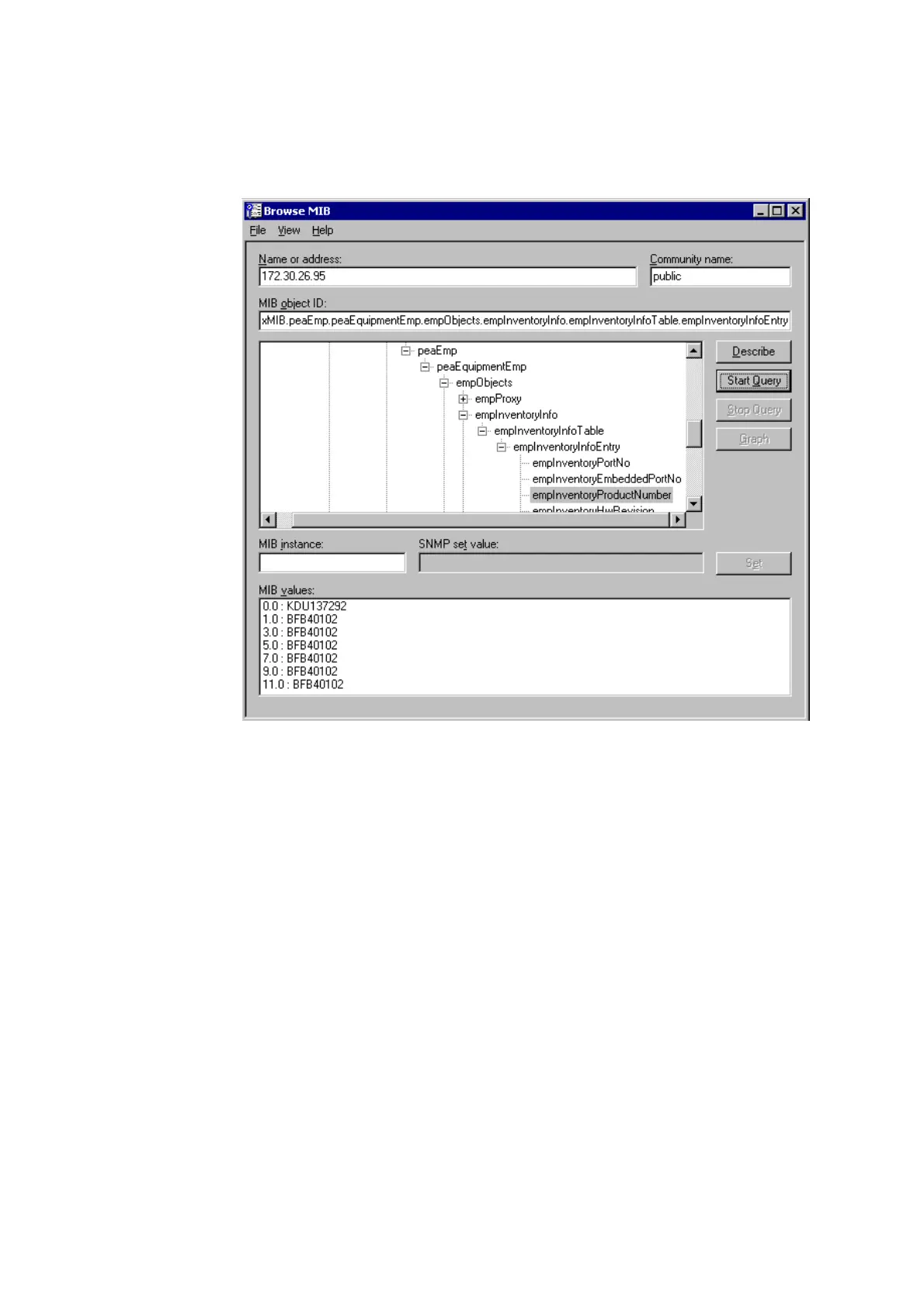

Figure 44 EAN Inventory
Figure 45 on page 164 shows an example of how to retrieve the line type
parameter, which is part of the standard ADSL MIB. The only instance is
the Line identification, which is given as 500001 (port one of an EDN con-
nected directly to port five of the ECN). The result of the query is four (fast
or Interleaved).
