12.3.3 Voltage measurement for dip
The voltage measurement options for dip welding are as follows:
S Peak value for pulse voltage (PULSE)
The voltage is only m easured during pulses and is filtered before the voltage
value is displayed.
S Average voltage value (AVERAGE)
The voltage is measured continuously and is filtered before the voltage value is
displayed.
The measured values displayed are used as input data for internal and external
quality functions.
12.3.4 4--stroke configuration
In 4--stroke configuration you can have different functions for 4--stroke start and stop.
4--stroke start mode

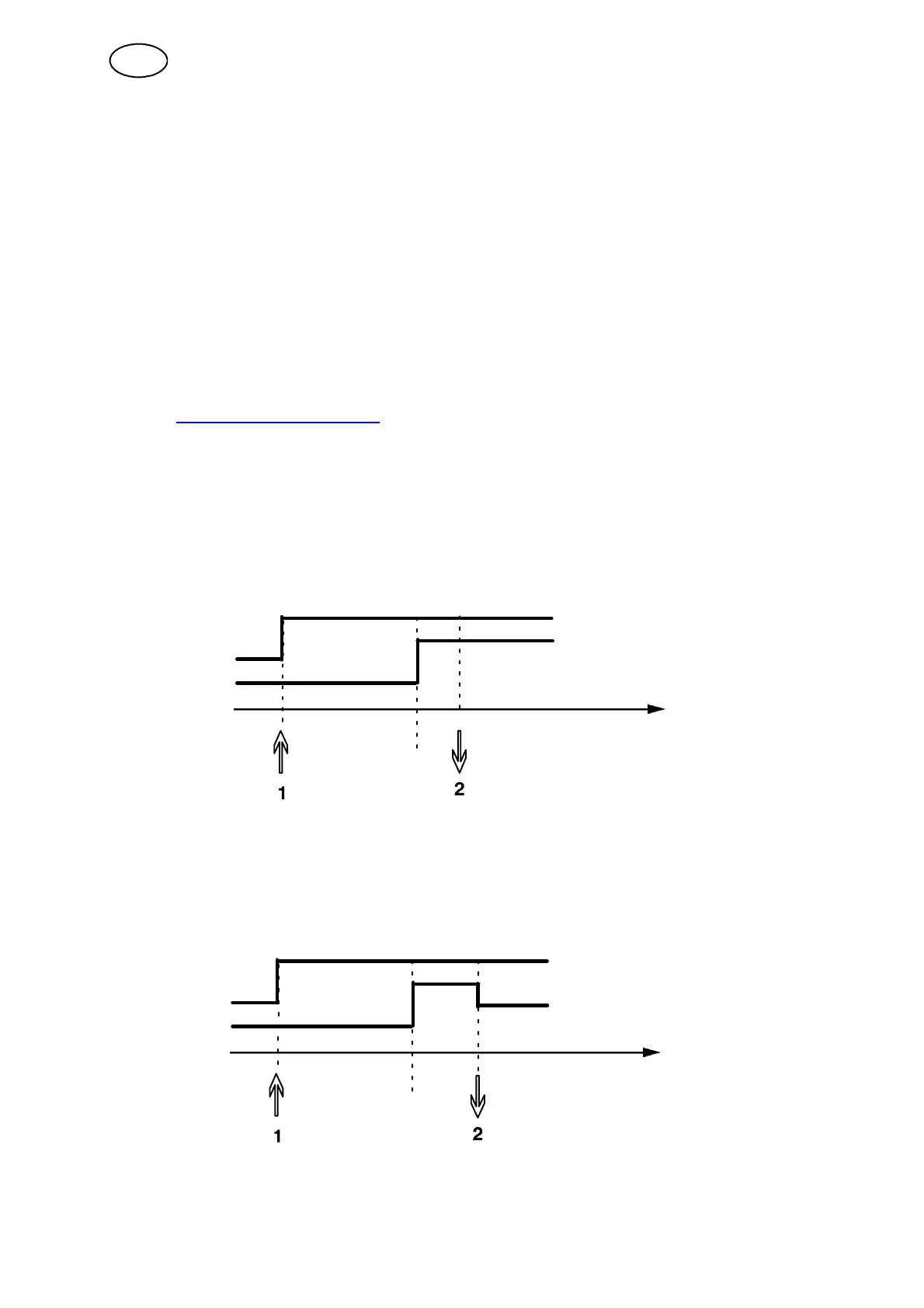

1 Trigger--controlled gas supply, see chapter 12.3.1 ”4--stroke”
2 Timer--controlled gas supply
Gas flow
Wire feed
Gas pre flow Welding
Press in the trigger (1), the gas supply starts, and after a preset gas supply period
the welding process starts. Release the trigger (2).
3 Trigger--controlled ”hot start”
Gas flow
Wire feed
Gas pre flow Hot start Welding
Press in the trigger (1), the gas supply starts, and ”hot start” is enabled until the
trigger is released (2).
