Error
code
Description
32 No gas flow
Gas flow is less than 6 l/min. Unable to start.
Action: Check the gas valve, hoses and connectors.
40 Incompatible units
Incorrect wire feed unit is connected. Start is prevented
Action: Connect the correct wire feed unit.
16 USER--DEFINED SYNERGIC DATA
Main menu ----> Auxiliary function menu ----> User--defin ed syn ergic data
It is possible to create user--defined synergic lines that relate to the wire feed speed
and voltage. A maximum of ten such synergic lines can be saved.
Creation of a new synergic line is performed in two stages:

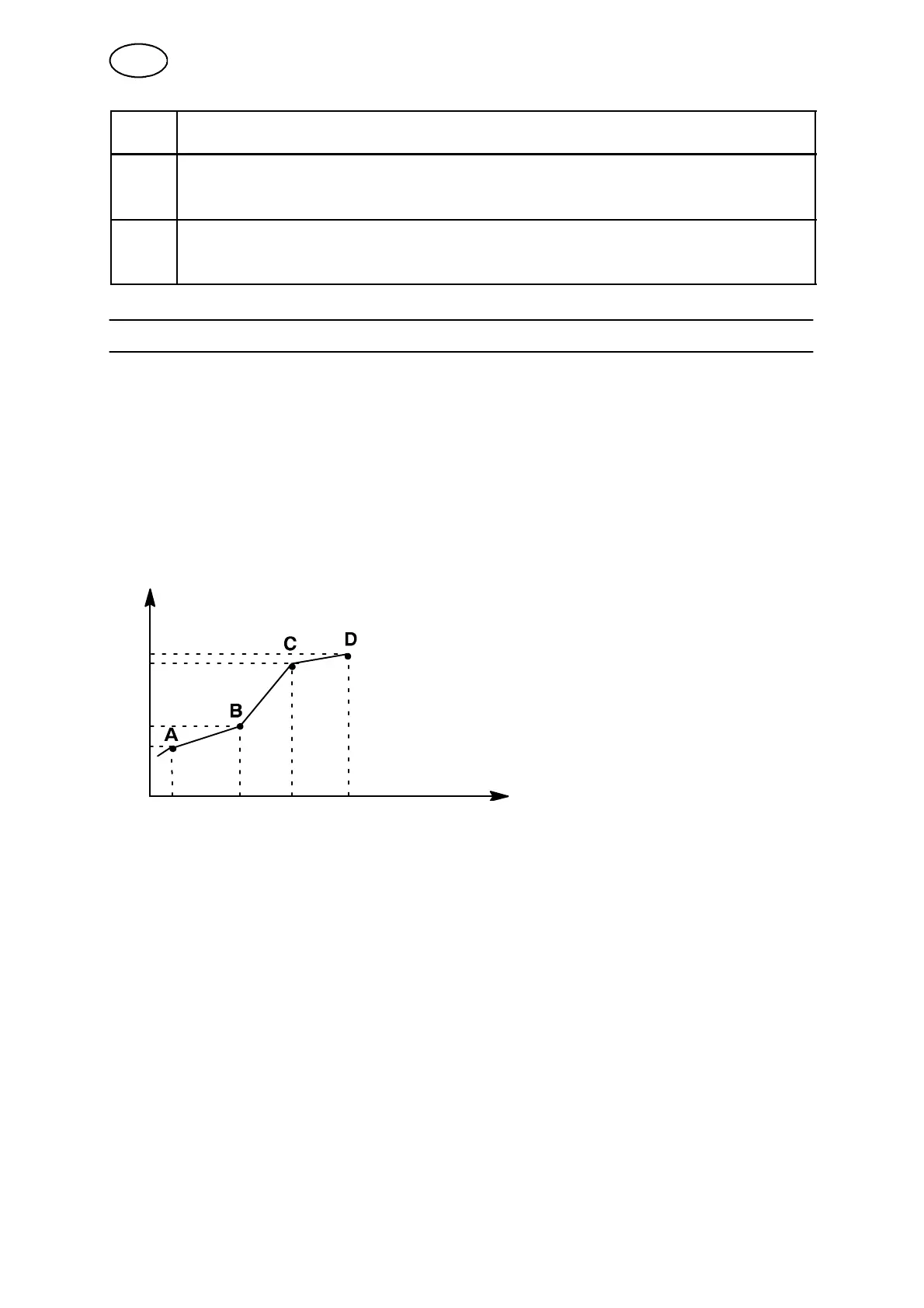

1. Define the new synergic line by specifying a number of voltage/wire speed
co--ordinates, see steps A--D in the following diagram:
Voltage
Wire feed
2. Specify which wire/gas combination the new synergic line is to apply to.
16.1 Specify voltage/wire co--ordinates
You need four co--ordinates to create a synergic line for dip/spray welding, and two
co--ordinates for pulse welding. These co--ordinates must then be saved under
special weld data numbers in the weld data memory.
16.1.1 Dip/spray
S Call up the main menu and select the MIG/MAG method DIP/SPRAY.
S Key in the desired values for voltage and wire feed speed for the first
co--ordinate.
S Call up the memory menu and store the first co--ordinate as weld data number
96.
S The four co--ordinates for a dip/spray line must be saved as numbers 96, 97,
98 and 99.
