EW50 Industrial LTE Cellular Gateway
16
1.6.3 Connecting Power

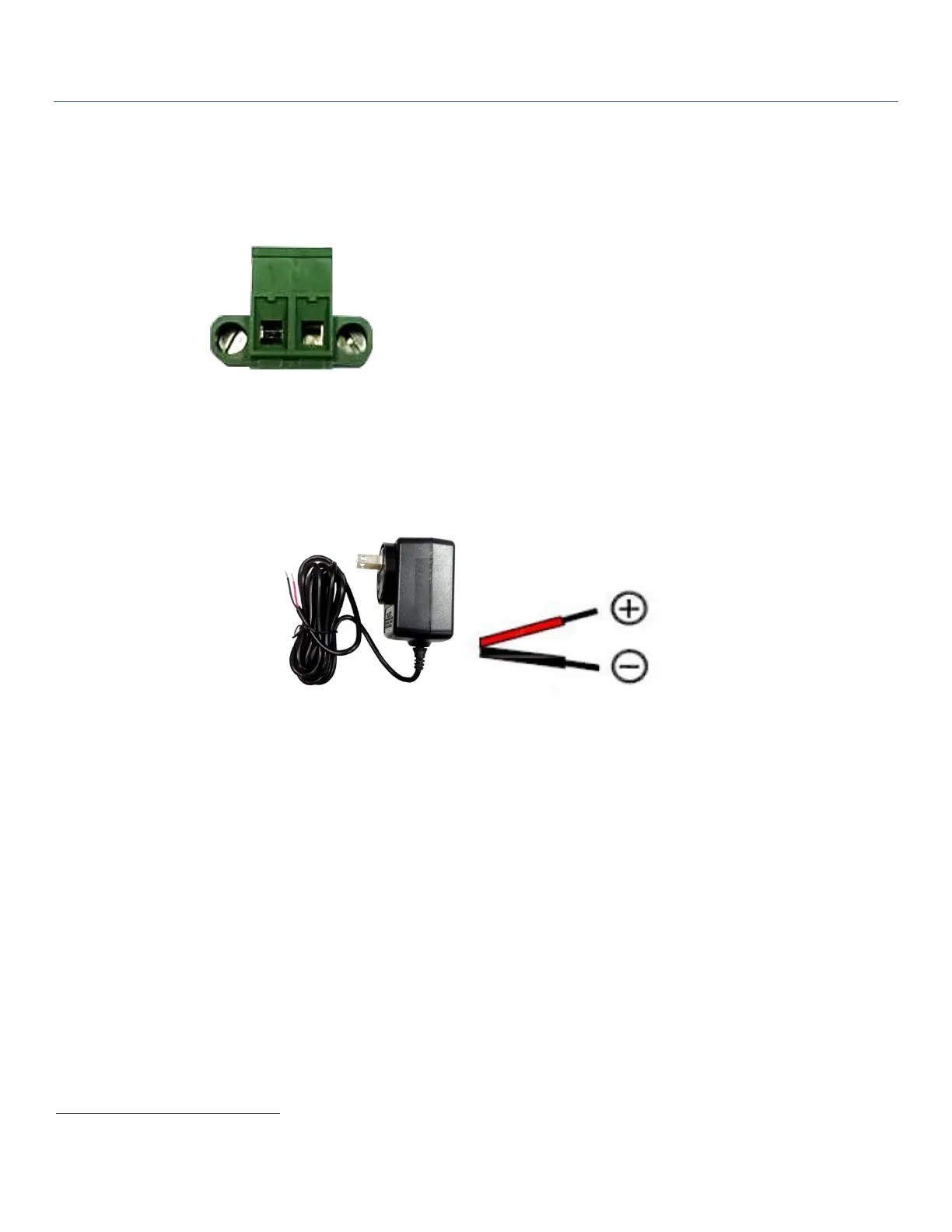

The EW50 series products can be powered by connecting a DC power source to the terminal block. It supports
9 to 36V DC power input. The following picture indicates the power terminal block pin assignments. Please
check carefully and connect to the right power requirements and polarity.
There is a DC12V/1A power adapter
3
in the package for you to easily connect DC power adapter to this
terminal block.
WARNNING: This commercial-grade power adapter is mainly for ease of powering up the purchased device
for initial configuration. It is not intended for operation in environments with extreme raanges of
temperature. PREPARE OR PURCHASE AN INDUSTRIAL-GRADE POWER SUPPLY FOR LONG-TERM USE.
3
The maximum power consumption of the EW50 series is 7 Watts.
GND
PWR
