Ethos v1.5.7 and X18, X20 series User Manual
Note that the Sticky function continues to operate, even if its output is gated by the
‘Active condition’ switch. As soon as the active condition becomes True again, the
Sticky function's condition is switched through to the logic switch output.

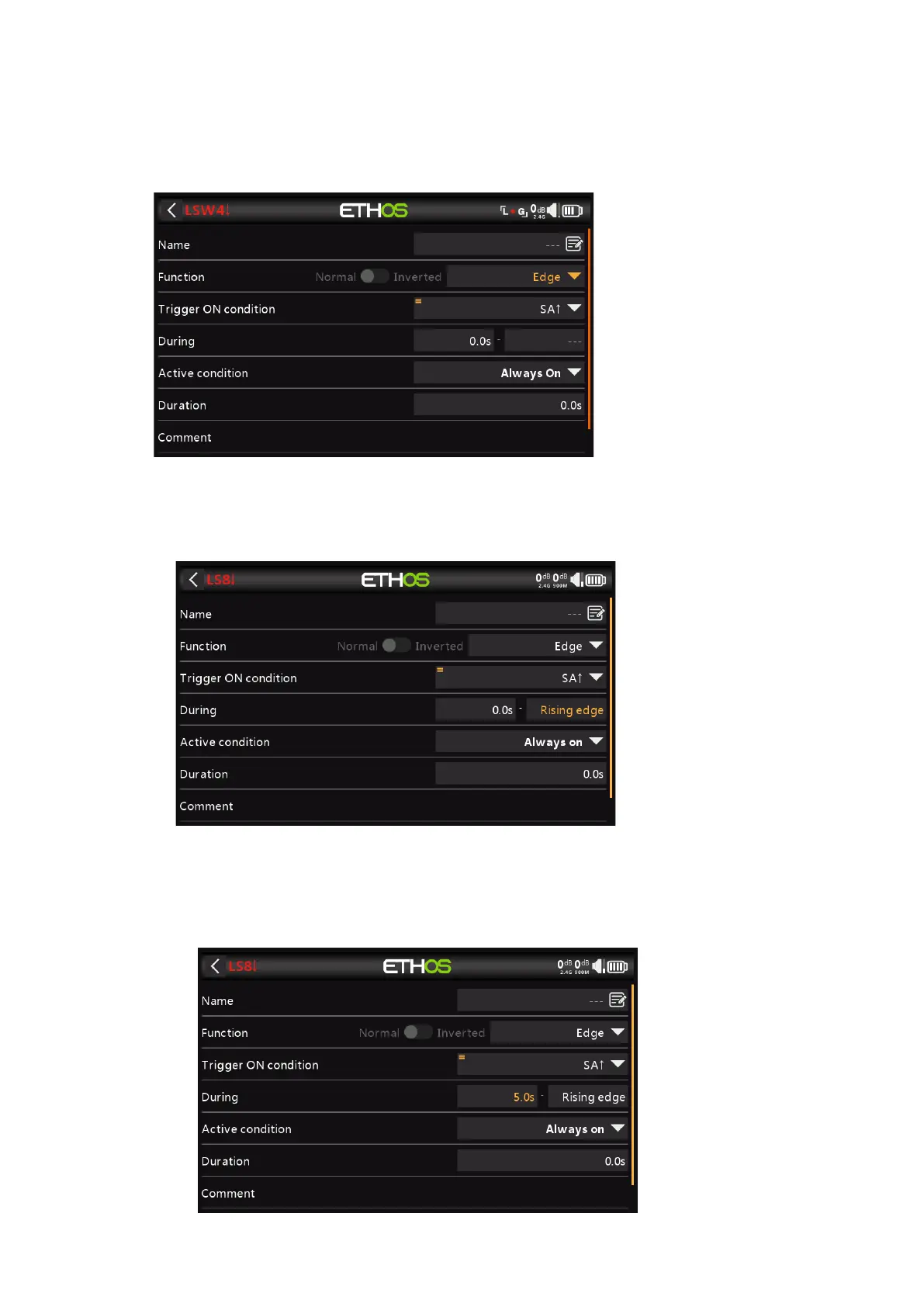

Edge
Edge is a momentary switch that becomes True for the period specified in 'Duration'
when its edge trigger conditions are satisfied.
Rising edge option
During = '0.0s'
During is in two parts [t1:t2]. With t1 of During = 0.0s and t2= 'Rising edge',
the logic switch becomes True (for the period specified in 'Duration') the instant
the 'Trigger On condition' transitions from False to True.
