Ethos v1.5.7 and X18, X20 series User Manual

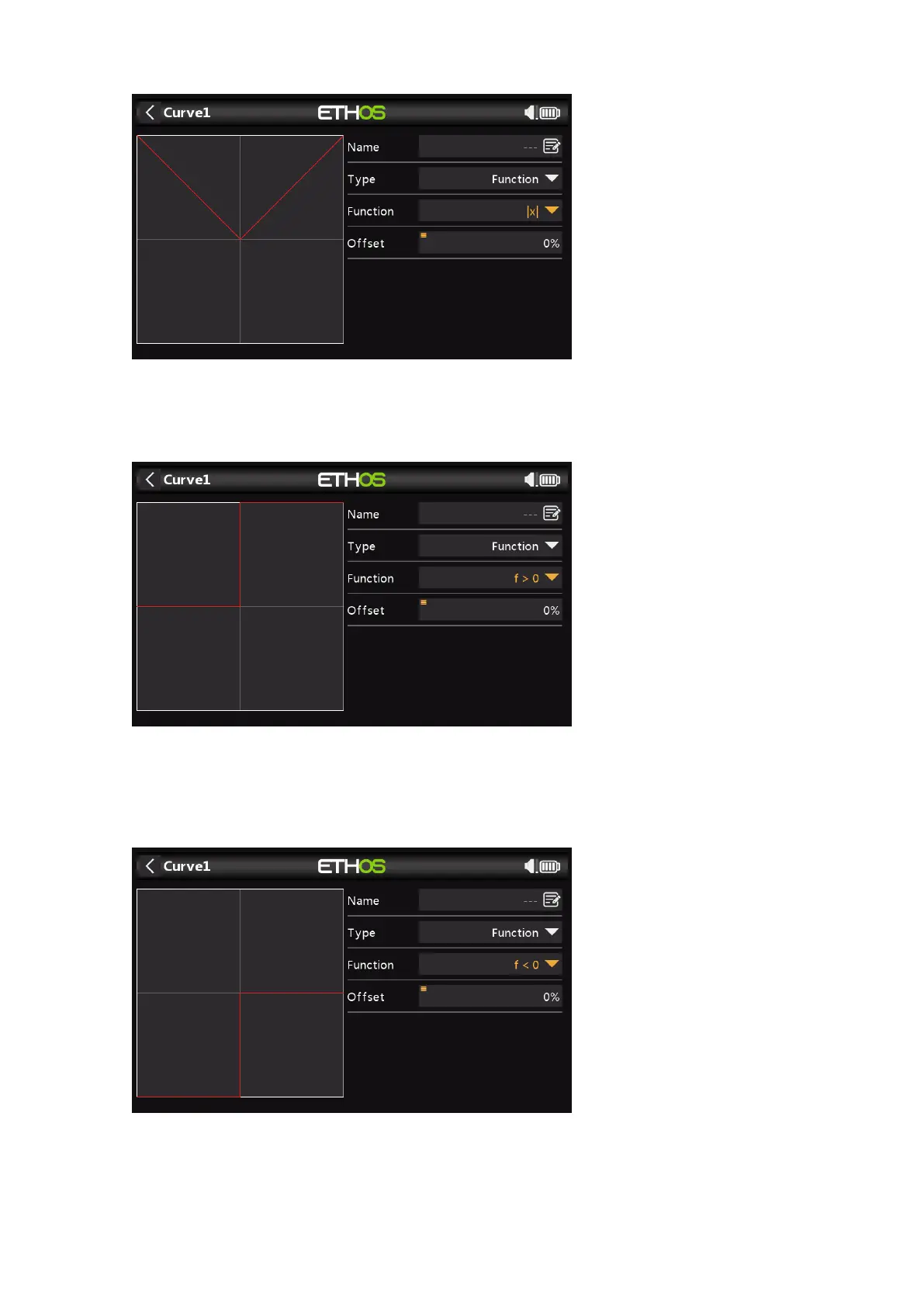

|x|
The curve output follows the source, but is always positiv
e (also called ‘absolute value’).
f > 0
If the source value is negative, then the curve output is 0.
If the source value is positive
, then the curve output is 100%.
f < 0
If the source value is negative, then the curve output is -100%.
If the source value is positive
, then the curve output is 0.
266
rev 2
272
274
Table of Contents
Table of Contents
3
X20/X20S Layouts
8
X20 Pro Layout
10
X20R/RS Layout
12
X18/X18SE Layout
14
Main Views
16
The Top Bar
16
The Bottom Bar
16
The Widgets Area
16
User Interface and Navigation
17
Reset Menu
17
Reset Flight
17
Reset Telemetry
17
Reset Timers
17
Lock Touchscreen
17
Editing Controls
17
Virtual Keyboard
17
Number Value Controls
18
Options Feature
19
USB Connection to PC Modes
23
Power off Mode
23
Bootloader Mode
23
Power on Mode
23
Emergency Mode
24
System Setup
25
Overview
25
File Manager
25
Alerts
25
Date & Time
25
General
25
Battery
25
Hardware
25
Sticks
25
Device Config
25
File Manager
26
Sharing Files Via Bluetooth
32
Alerts
33
Silent Mode
33
Main Voltage
33
RTC Voltage
33
Sensor Conflict Warning
33
Inactivity
34
Date and Time
35
24 Hour Time
35
Display Seconds
35
Date
35
Time
35
Time Zone
35
Adjust RTC Speed
35
Auto Adjust from GPS
36
General
37
Display Attributes
37
Storage Location (X18 and X20 Pro/R/Rs)
41
Audio Settings
41
Vario
45
Haptic
46
Top Toolbar
47
Select Model at Power on
47
USB Mode Preselection
48
Battery
49
Main Voltage
49
Low Voltage
49
Display Voltage Range
49
RTC Voltage
50
Hardware
51
Hardware Check
51
Analogs Calibration
52
Gyro Calibration
52
Analogs Filter
53
Pots/Sliders Settings
53
Switches Settings
54
Home Keymap
55
ADC Value Inspector
56
Sticks
58
Channel Order
58
First Four Channels Fixed
59
Device Config
60
Module Selection
61
Info
62
X18 and X20
62
X20 Pro/R/Rs
64
Model Setup
65
Overview
65
Model Select
65
Edit Model
65
Flight Modes
65
Mixes
65
Outputs
65
Timers
65
Trims
65
RF System
66
Telemetry
66
Checklist
66
Logic Switches
66
Special Functions
66
Curves
66
Vars
67
Trainer
67
Lua
67
Model Select
68
Managing Model Folders
68
Adding a New Model
70
Receiving a Model from Another Ethos Radio
72
Selecting a Model
73
Edit Model
75
Name, Picture
75
Model Type
75
Channel Assignments
75
Function Switches
76
Sport Connector
77
Analogs Filter
77
Reset All Mixes
78
Flight Modes
79
Name
80
Active Condition
80
Fade In, out
80
Flight Mode Management
81
Mixes
82
Aileron, Elevator, Rudder Mixes
83
Throttle MIX
86
View Per Channel Option (Mixes Grouping)
89
Mixes Libraries
92
Outputs
108
Outputs Setup
109
Timers
112
Countdown Timer
113
Count up Timer
115
Trims
118
Trim Settings
119
Additional Trims
126
Cross Trim
127
Instant Trim
127
Move Trims to Subtrims
127
RF System
129
Disabling RF Output
129
Owner Registration ID
129
Internal Module TD-ISRM (X18 and X20/S/HD)
130
Internal Module TD-ISRM Pro (X20 Pro/R/Rs)
166
External RF Module - Frsky
195
External RF Modules - Third Party
214
Telemetry
215
Smart Port Telemetry
215
FBUS Control and Telemetry
217
Telemetry Features in ACCESS
217
Telemetry Settings
220
Checklist
241
Throttle Check
242
Failsafe Check
242
Switches Check
242
Function Switches Check
243
Pots / Sliders Check
244
User Defined Text
244
Logic Switches
245
Adding Logic Switches
246
Shared Parameters
252
Logic Switches - Use with Telemetry
253
Comparison of Sources
253
Option to Ignore Trainer Input
254
Special Functions
255
Curves
270
Expo
271
Function
271
Custom
274
Function Curve Offset Change in Flight
276
Curve Point Change in Flight
276
Variables (Vars)
277
Adding Vars
278
Trainer
282
Trainer Mode = Master
283
Trainer Mode = Slave
288
Lua
290
Lua Tasks
290
Lua Sources
291
Lua Script Functions
291
Configure Screens
292
Configuring the Main Screen
292
Standard Widgets
293
Main Screen Widgets Example
300
Adding Additional Screens
301
Adding Custom Widgets
302
Lua Scripts
303
ETHOS Lua Interpreter
303
ETHOS Lua Documentation
303
ETHOS Lua Example Script Files Location
303
Lua Scripting Configuration Limits
303
Basic Layout of a Lua Widget
304
Key (String)
304
Name (String or Function)
304
Create (Function)
304
Configure (Function)
304
Wakeup (Function)
304
Event (Function)
304
Paint (Function)
304
Read (Function)
304
Write (Function)
304
Programming Tutorials
306
Initial Radio Setup Example
306
Step 1. Charge the Radio and Flight Batteries
306
Step 2. Calibrate the Hardware
306
Step 3. Perform the Radio System Setup
306
Basic Fixed Wing Airplane Example
308
Step 1. Confirm System Settings
308
Step 2. Identify the Servos/Channels Required
308
Step 3. Create a New Model
308
Step 4. Review and Configure the Mixes
311
Step 5. Bind the Receiver
316
Step 6. Configure the Outputs
316
Step 7. Introduction to Flight Modes
319
Step 8. Set up a Flight Battery Timer
321
Step 9. Add a MIX for Retracts
322
Basic Flying Wing (Elevon) Airplane Example
323
Step 1. Confirm System Settings
323
Step 2. Identify the Servos/Channels Required
323
Step 3. Create a New Model
323
Step 4. Review and Configure the Mixes
325
Step 5. Bind the Receiver
327
Step 6. Review the Mixes
328
Step 7. Configure the Maximum Servo Throws
328
Basic Flybarless Helicopter Example
330
Step 1. Confirm System Settings
330
Step 2. Identify the Servos/Channels Required
330
Step 3. Create a New Model
330
Step 4. Review and Configure the Mixes
332
Step 5. FBL Setup
337
How To' Section
339
How to Set up a Low Battery Voltage Warning
339
How to Set up a Battery Capacity Warning Using a Neuron ESC
342
How to Set up a Battery Capacity Warning Using a Calculated Sensor
345
How to Create a Model for SR8/SR10
350
How to Reorder Channels E.g. for SR8/SR10
351
How to Configure a Butterfly (Aka Crow) MIX
354
How to Configure an FBUS System
362
How to Test a Redundant Receiver Setup
368
How to Set up a User Defined Text Checklist
369
10. How to Configure an In-Flight Adjustable Flap Compensation Curve
370
Ethos Suite
377
Overview
377
Procedure for Migrating to Ethos Suite
378
Operation
379
Welcome Section
379
Radio Section
381
Tools Section
392
Others Section
402
