Ethos v1.5.7 and X18, X20 series User Manual

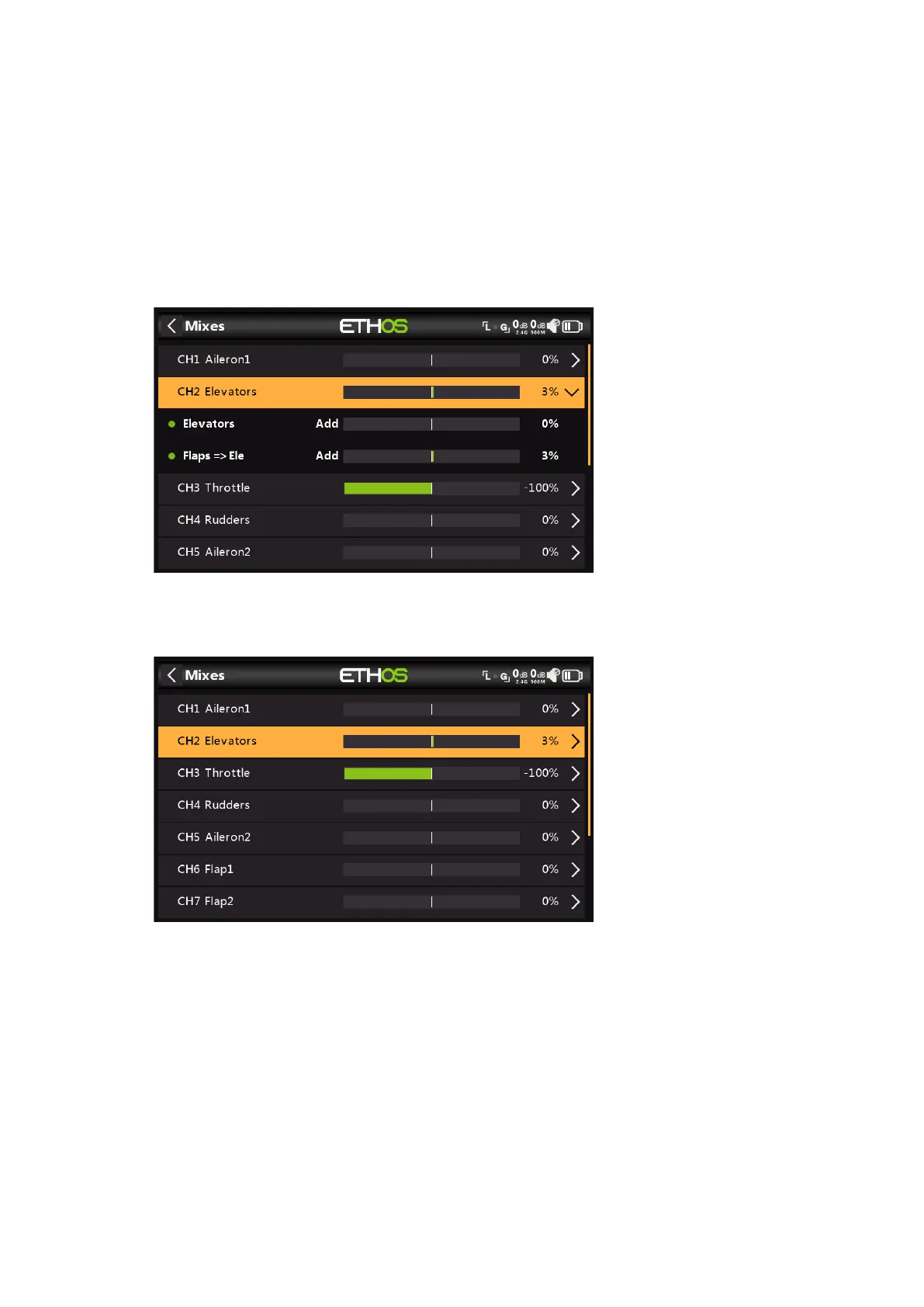

line (highlighted), we can see that the elevator channel output is at +3%. The sub mixes
show that currently the elevator stick is at neutral (i.e. 0%), but the Flaps to Elevator mix is
adding +3% to the channel. Operating the Flap switch will cause this compensation mix to
change.
With this ‘View per channel’ layout the contribution of the various mixes affecting a channel
can be easily seen, because the value of each mix is shown in both graphical and numerical
format.
Managing the ‘View per channel’ display
a) Moving between channels in ‘View per channel’
Clicking on the summary line (highlighted above) will collapse the channel’s sub
mixes.
As can be seen above, the sub mixes for CH2 Elevators have been collapsed. You can
now scroll up or down and select another channel to be expanded to show the mixes
contributing to that channel.
