Ethos v1.5.7 and X18, X20 series User Manual

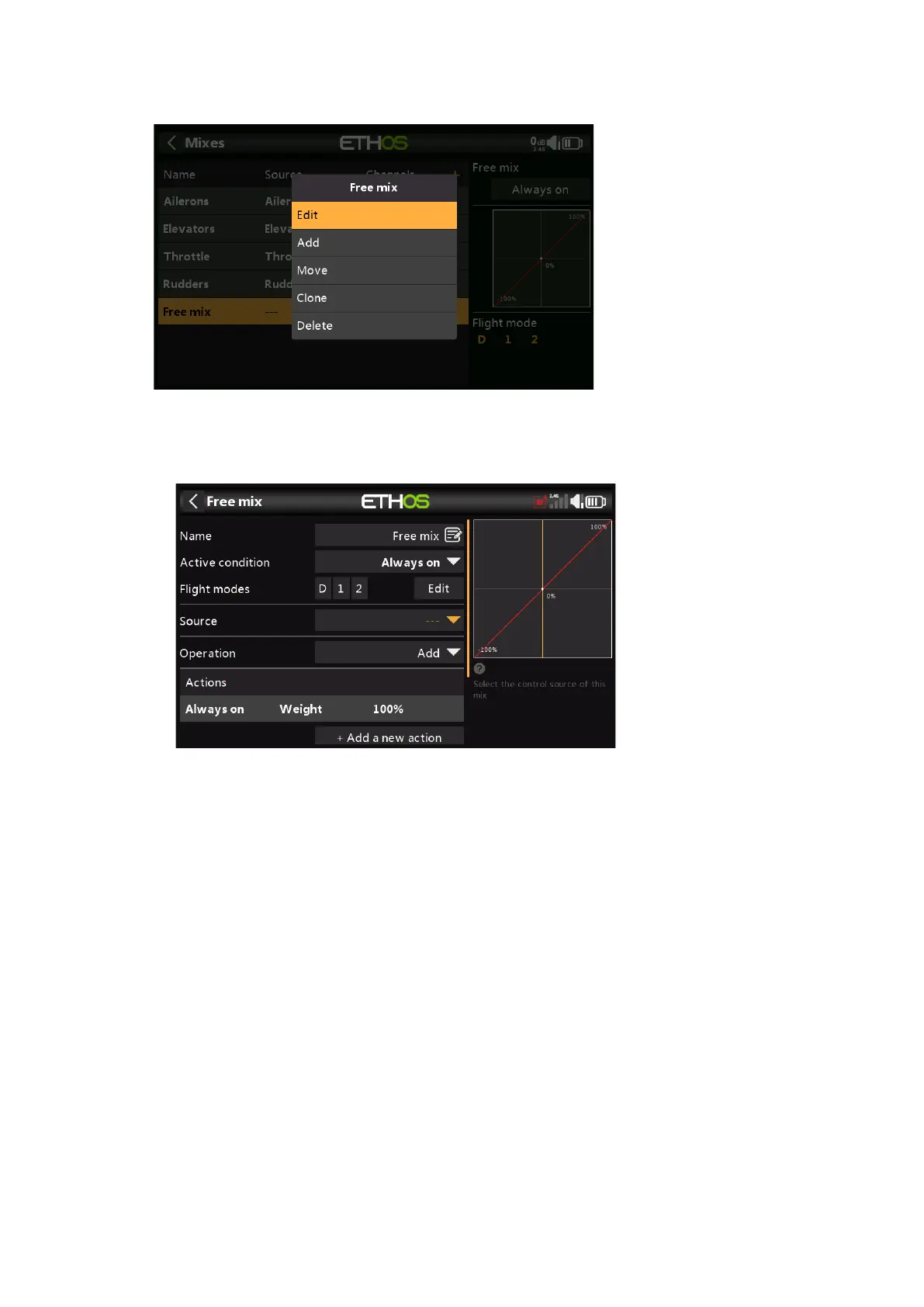

Tap on ‘Free mix’ to bring up the edit sub-menu.
Select Edit to open a new screen showing the detailed parameters for the ‘Free mix’.
The graph display on the right will display the mix output, and the effect of any setting
changes that are made.
Name
A descriptive name can be entered for the Free Mix.
Active condition
The default active condition is ‘Always on’. It may be made conditional by choosing
from switch or button positions, function switches, flight modes, logic switches, a
system event such as throttle cut or hold, or trim positions.
Flight modes
If any flight modes have been defined, the mix can be made conditional to one or
more flight modes. Click on ‘Edit’ and check the boxes for the flight modes in which
this mix must be active.
Source
The source or input to this mix can be chosen from:
a) analog inputs such as the sticks, pots and sliders
b) the toggle switches or buttons
c) any defined logic switches
d) the trim switches
e) any defined channels
f) a gyro axis
g) a trainer channel
86 rev 2
