Evector SportStar RTC - Page 106

ERTC022-10-AS
MAINTENANCE MANUAL
24-30
Page 24-12
2019-03-22
Effectivity: All
Edition 2 | Rev. 1

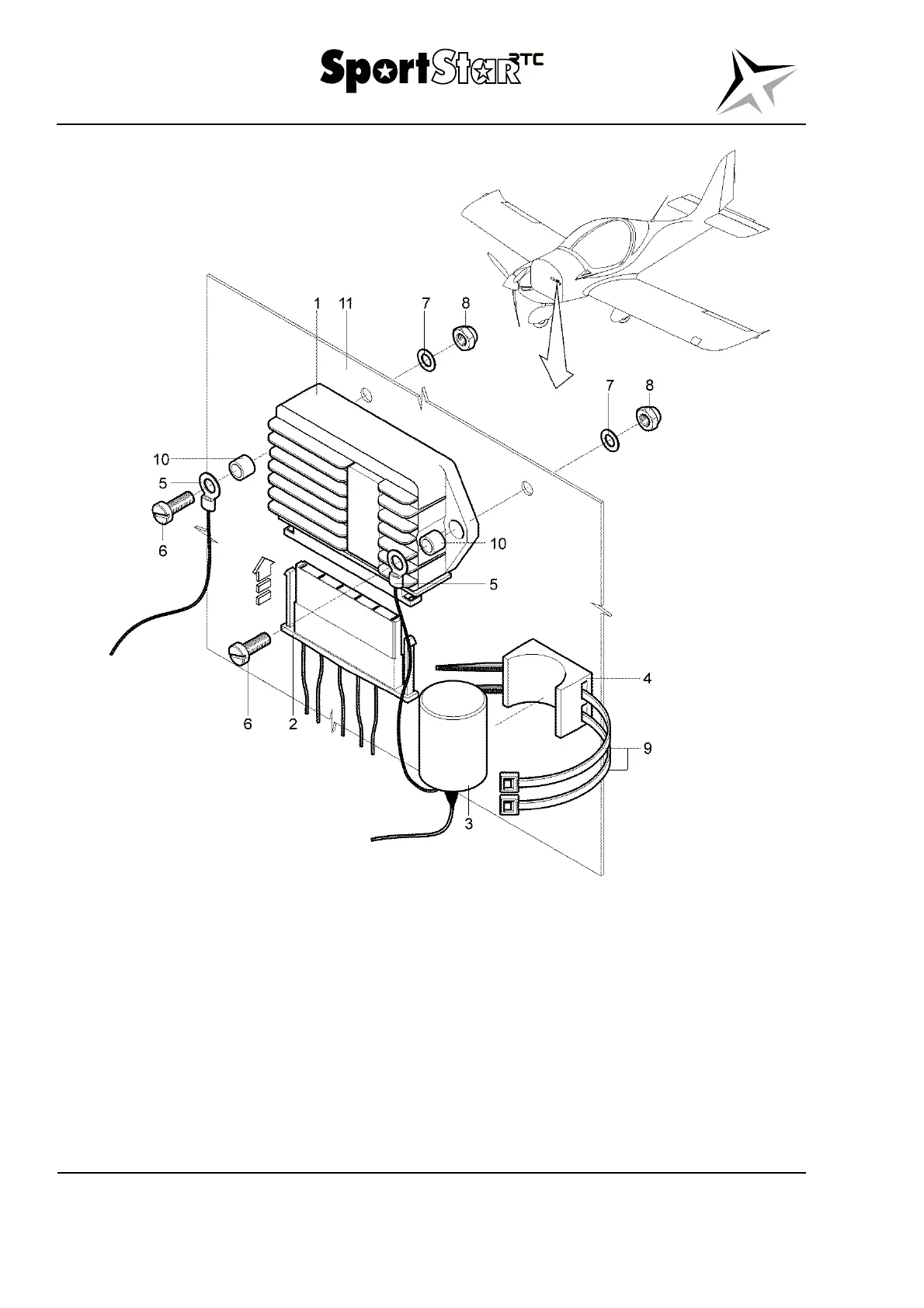

Legend to Fig. 24-4
1 Generator rectiofier 7 Washer 5,3
2 Connector 8 Nut M5
3 Capacitor 9 Cable tie
4 Holder of capacitor 10 Spacing insert
5 Wire with cable eye For information
6 Screw M5x16 11 Firewall
Fig. 24-4 Generator rectifier – removal / installation
