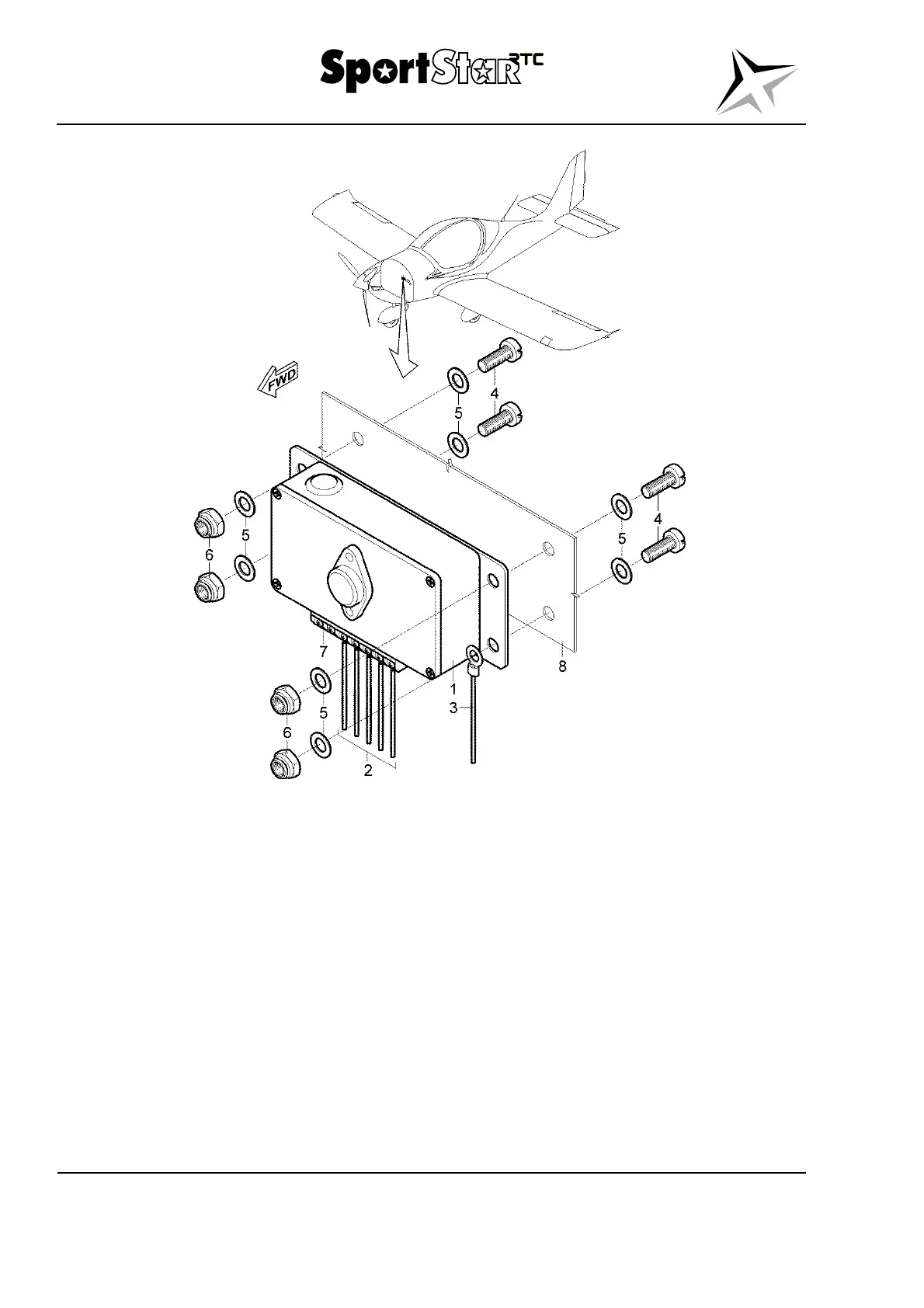

Legend to Fig. 24-6
1 Auxiliary generator regulator 6 Nut M5
2 Wires 7 Terminal strip of regulator
3 Ground wire For information:
4 Screw M5 8 Firewall
5 Washer 5,3
Fig. 24-6 Auxiliary generator regulator – removal / installation
