MAINTENANCE MANUAL
Effectivity: All
Page 24-21
Edition 2 | Rev. 1
(i) Install the engine cowlings (Section 71-10).
(j) Connect the battery, switch the electrical network on.
(k) Start the engine, do the engine test and check engine parameters.

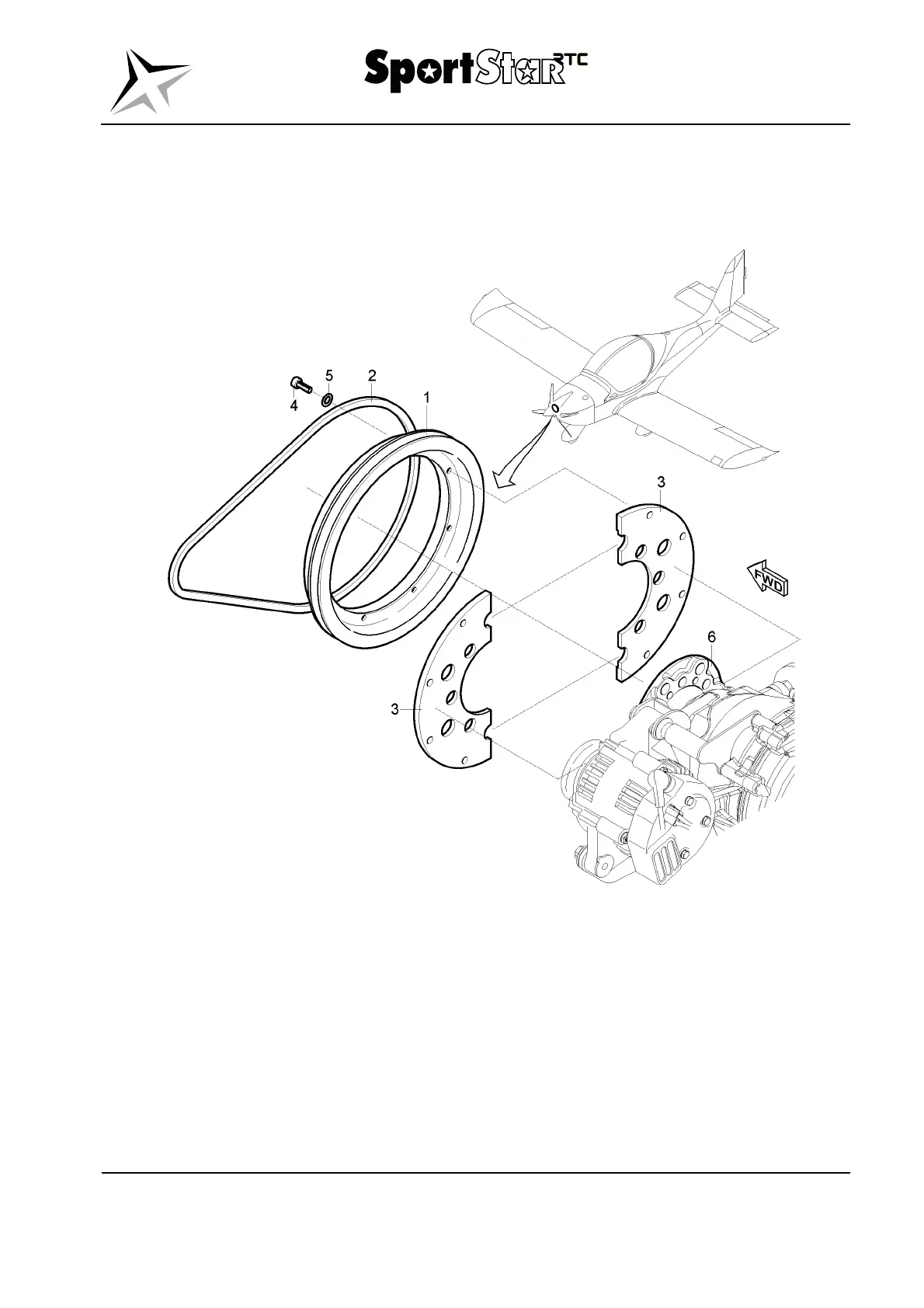

Legend to Fig. 24-9
1 V-belt pulley 4 Screw M5x16 (8 pcs.)
2 V-belt 5 Lock washer 5 (8 pcs.)
3 Pair of pulley carrier halves 6 Engine flange
Fig. 24-9 External alternator V-belt / V-belt pulley – removal / installation
