Evector SportStar RTC - Page 124

ERTC022-10-AS
MAINTENANCE MANUAL
24-30
Page 24-30
2019-03-22
Effectivity: All
Edition 2 | Rev. 1
Legend to Fig. 24-13
1 Battery IBBS-12v-3ah 5 Washer 4.3 (4 pcs.)
2 Wires with connector For information:
3 Screw M4x10 (4 pcs.) 6 Bracket
4 Nut M4 (4 pcs.) 7 Bracket

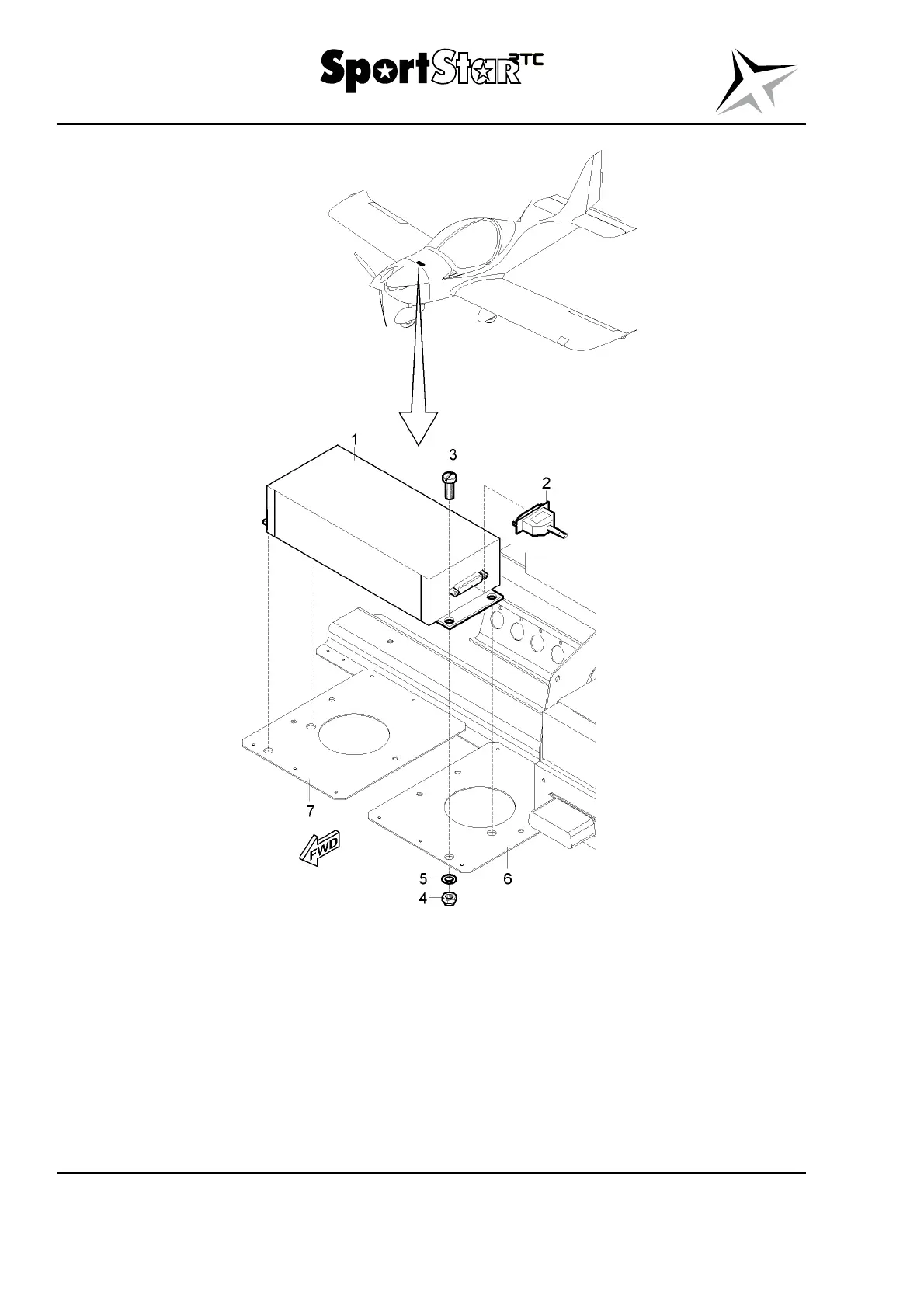

Fig. 24-13 Battery IBBS-12v-3ah – removal / installation
