Legend to Fig. 24-14
1 Socket body 5 Cap
2 Nut For information:
3 Wire with connector 6 Instrument panel
4 Wire with Faston connector

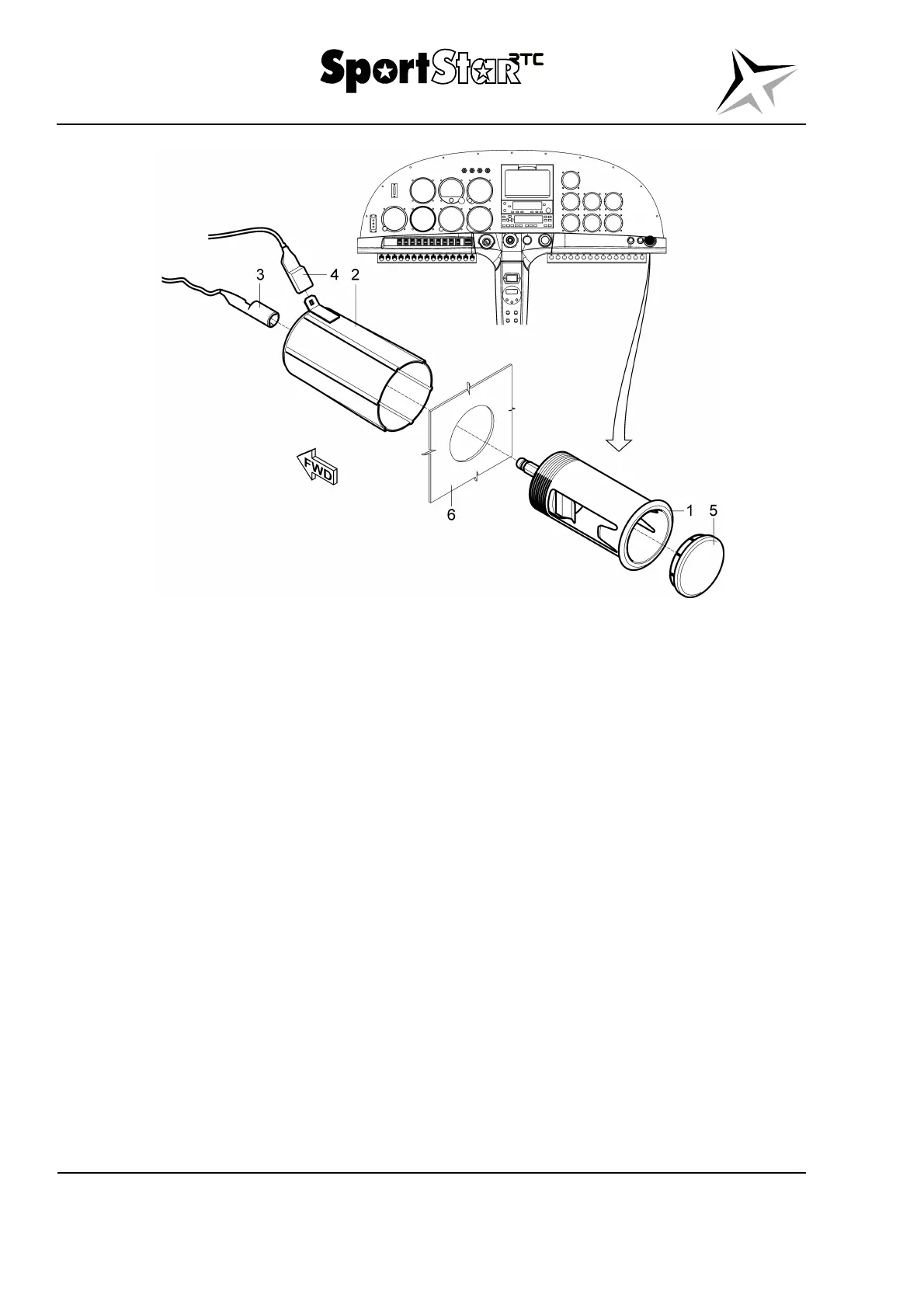

Fig. 24-14 12 V socket – removal / installation
