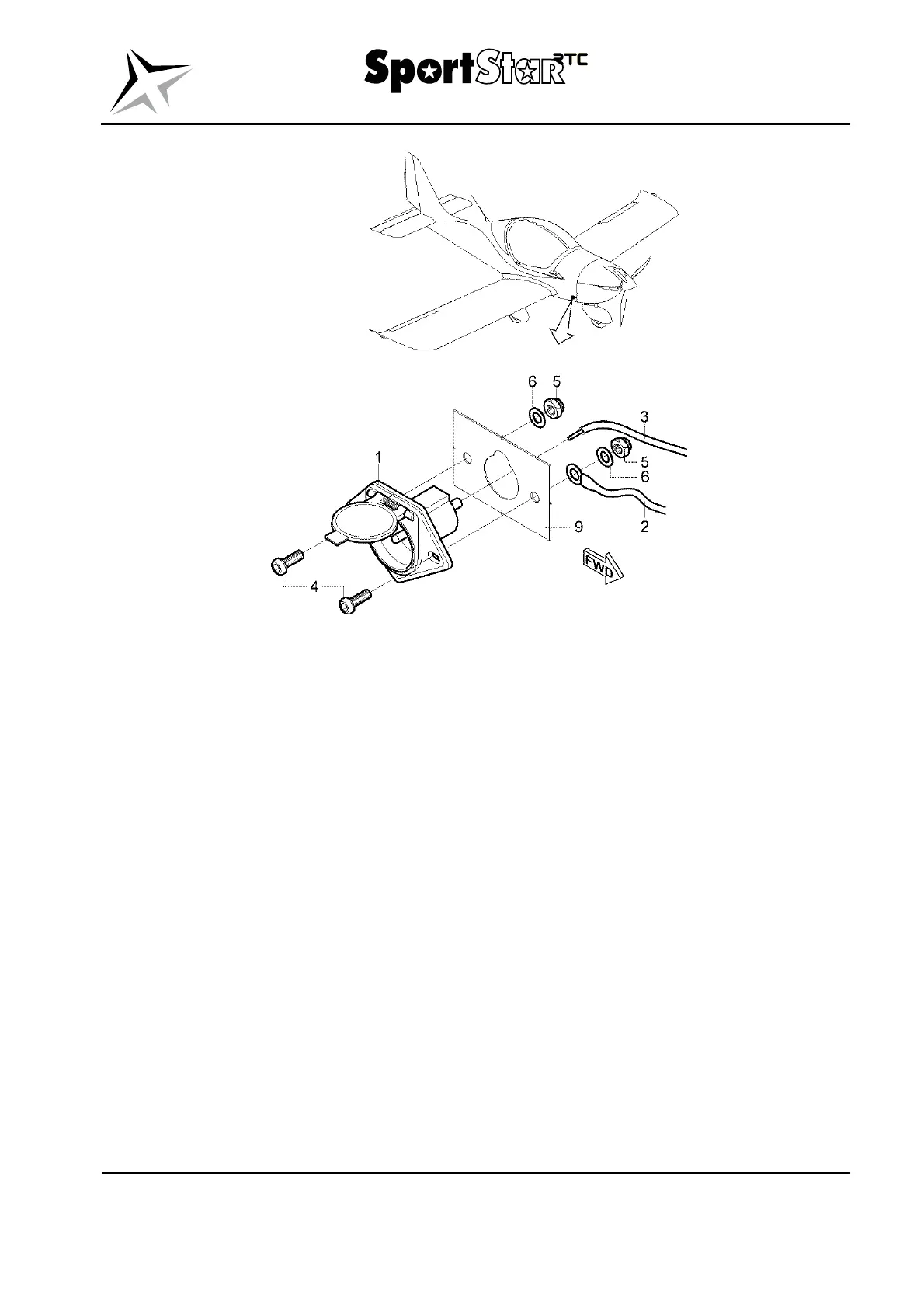

Legend to Fig. 24-17
1 Socket 5 Nut M8
2 Cable of electrical bonding (-) 6 Washer 8,4
3 Cable (+) For information:
4 Screw M8 9 Right side skin of fuselage
Fig. 24-17 Socket of external power source – removal / installation
