Evector SportStar RTC - Page 140

ERTC022-10-AS
MAINTENANCE MANUAL
24-60
Page 24-46
2019-03-22
Effectivity: All
Edition 2 | Rev. 1
Legend to Fig. 24-19
1 Circuit breaker 2TC2 7 Screw
2 Circuit breaker ETA 8 Spring washer
3 Holder of circuit breakers 9 Spring washer
4 Nut 10 Spring washer
5 Nut 11 Spring washer
6 Screw

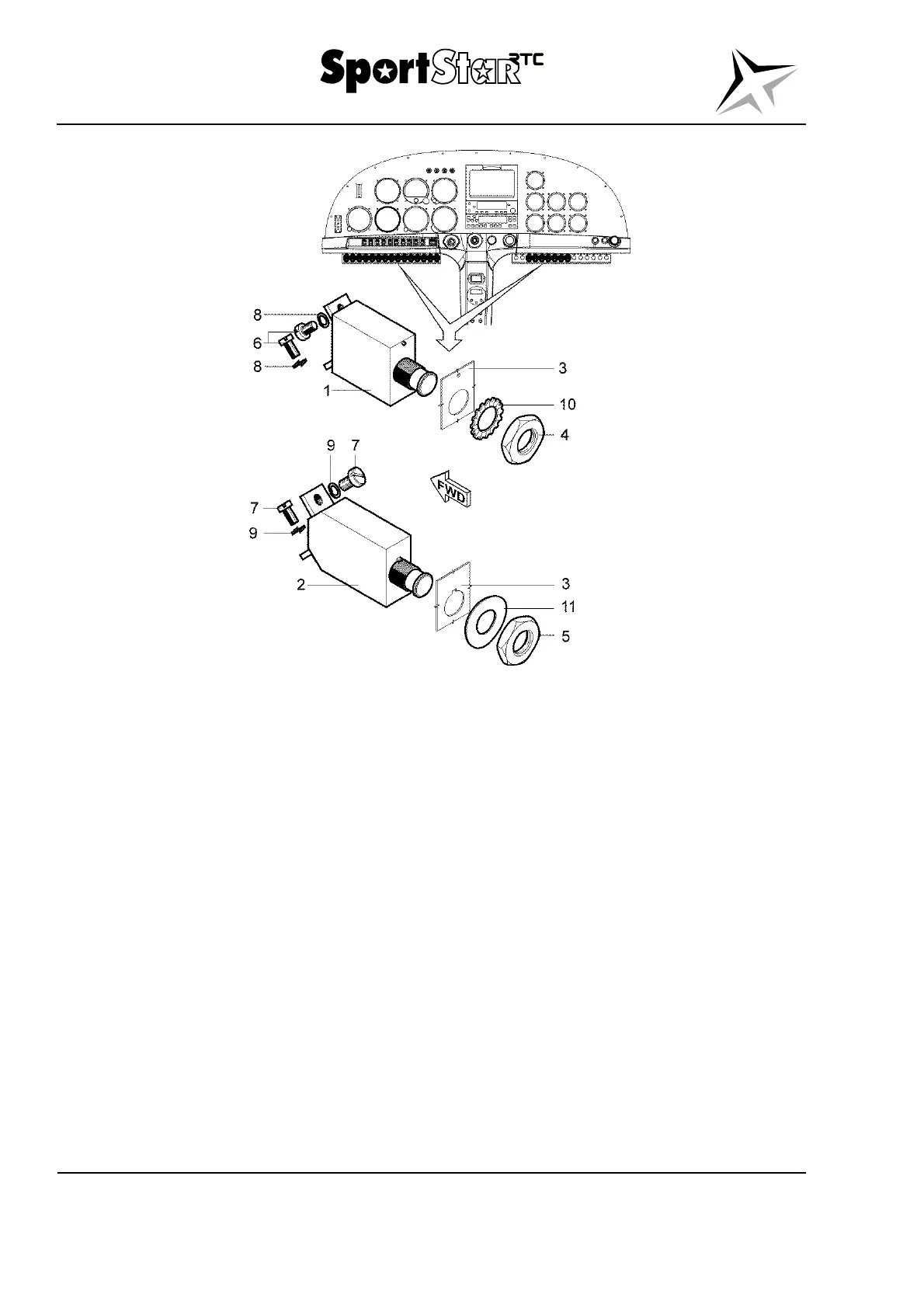

Fig. 24-19 Circuit breakers – removal / installation (typical)
