Evector SportStar RTC - Page 170

ERTC022-10-AS
MAINTENANCE MANUAL
32-42
Page 32-58
2019-03-22
Effectivity: All
Edition 2 | Rev. 1

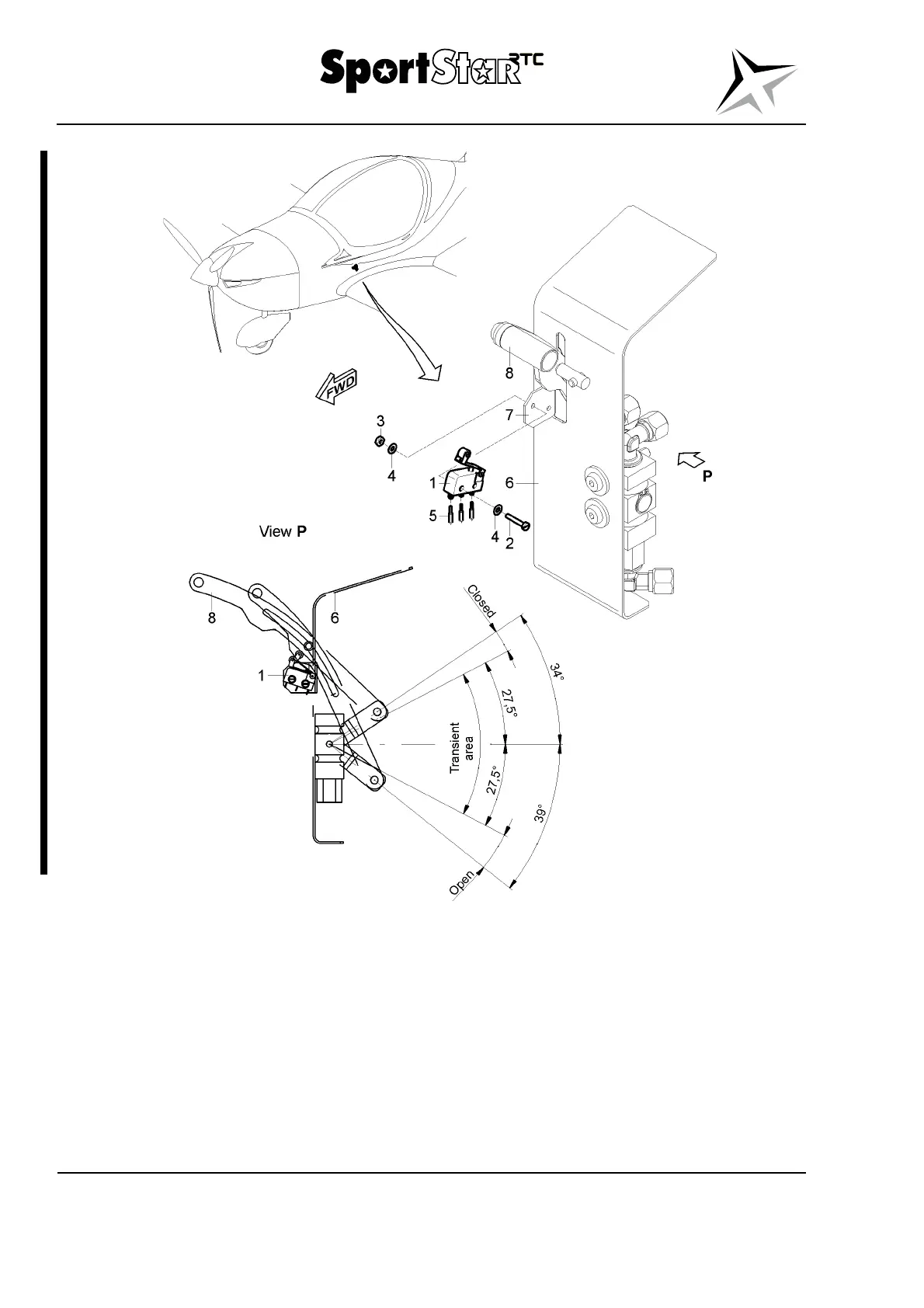

Legend to Fig. 32-22
1 Switch For information:
2 Screw M2x12 (2 pcs) 6 Bracket
3 Nut M2 (2 pcs) 7 Bracket
4 Washer 2.2 (4 pcs) 8 Lever
5 Wires
Fig. 32-22 Switch of parking brake signaling – removal / installation
