MAINTENANCE MANUAL
Page 33-16
Effectivity: All
Edition 2 | Rev. 0

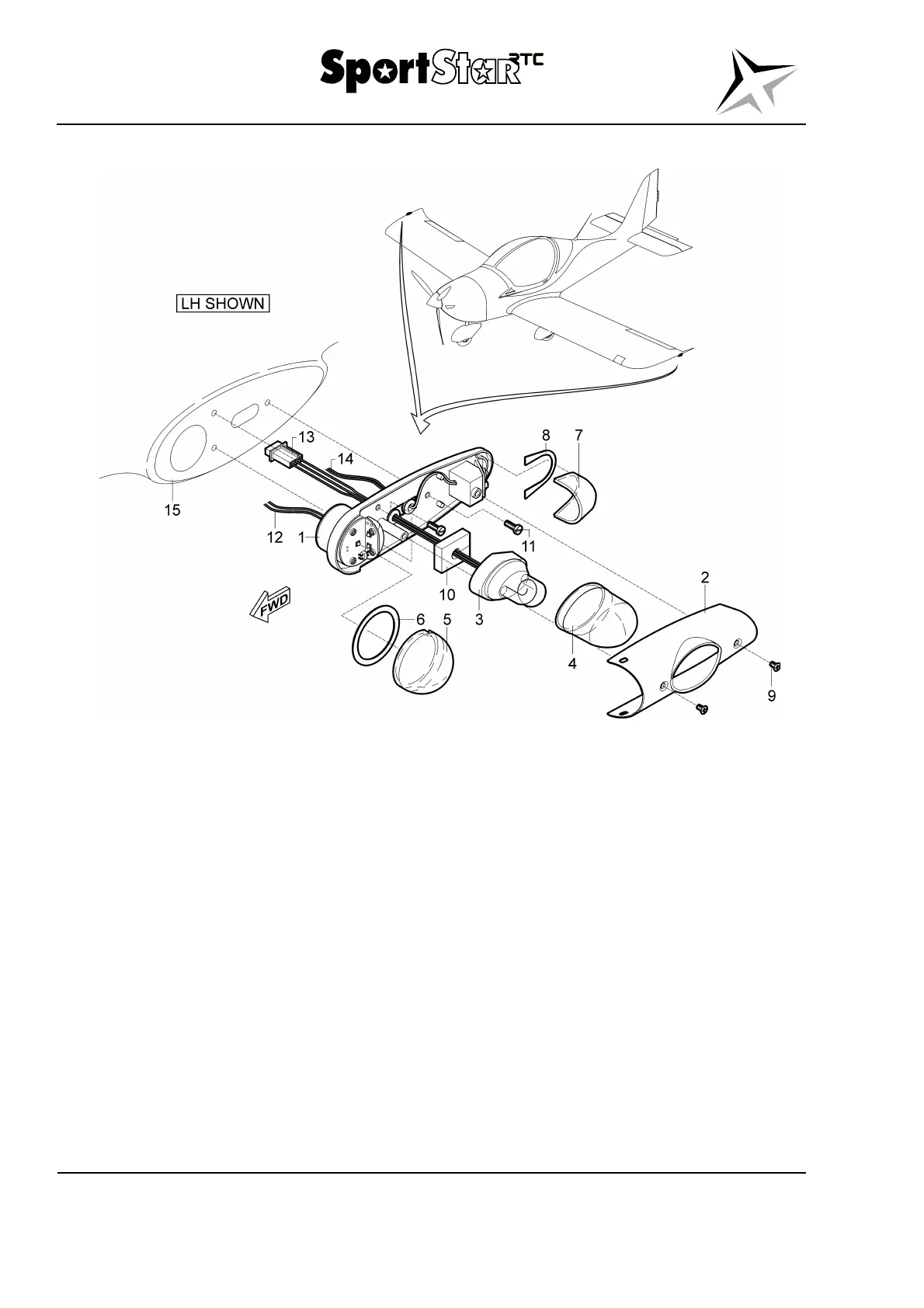

Legend to Fig. 33-5
1 Light body 9 Screw 6-32 5/16 (2 pcs.)
2 Flashtube cover 10 Seal
3 Flashtube 11 Screw M4x16 (3 pcs.)
4 Flashtube lens 12 Wires of the front pos. light
5 Lens of the front light 13 Connector with wires
6 Seal 14 Wires of the rear pos. light
7 Lens of the rear light For information:
8 Seal 15 Wingtip
Fig. 33-5 Position / strobe lights – removal / installation
