(e) Connect the battery, switch the electrical network on and check function of the
strobe lights.
Legend to Fig. 33-6
1 Power source of the lights 5 Washer 4,3 (4 pcs.)
2 Connector with wires 6 Grounding wire
3 Screw M4x16 (4 pcs.) For information:
4 Nut M4 (4 pcs.) 7 Skin of the fuselage lower part

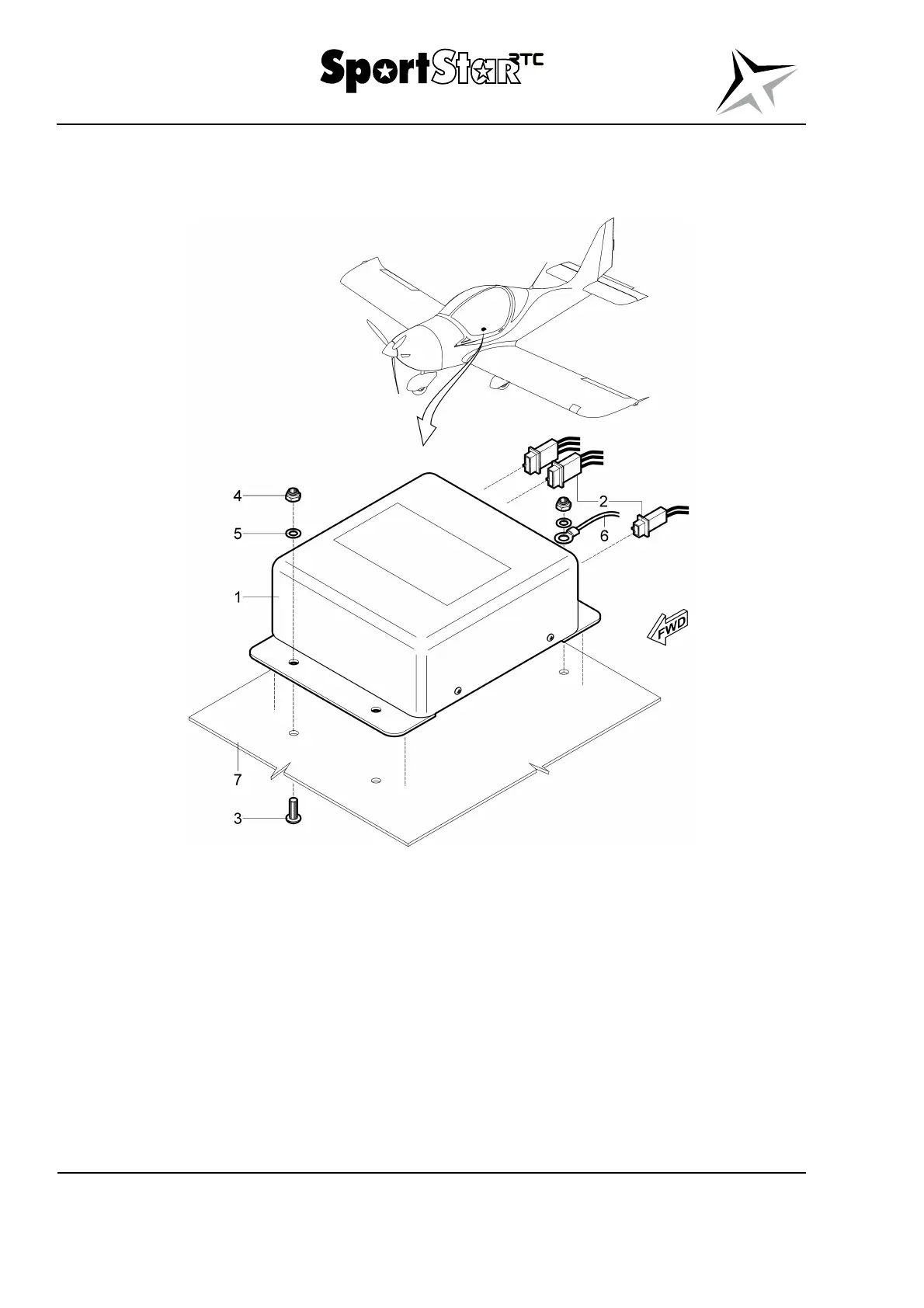

Fig. 33-6 Power source of the strobe lights – removal / installation
