(e) Put the handle (1) on the protruding part of the string (3) and secure it by means of
the screw (7).
(f) Check the function of the carburettor preheating control.
Legend to Fig. 71–8
1 Handle 6 Washer 8,4
2 Terminal 7 Screw M3x4
3 Bowden string with tube 8 Screw M4x4
4 Bowden hose For information:
5 Nut M6 9 Central console

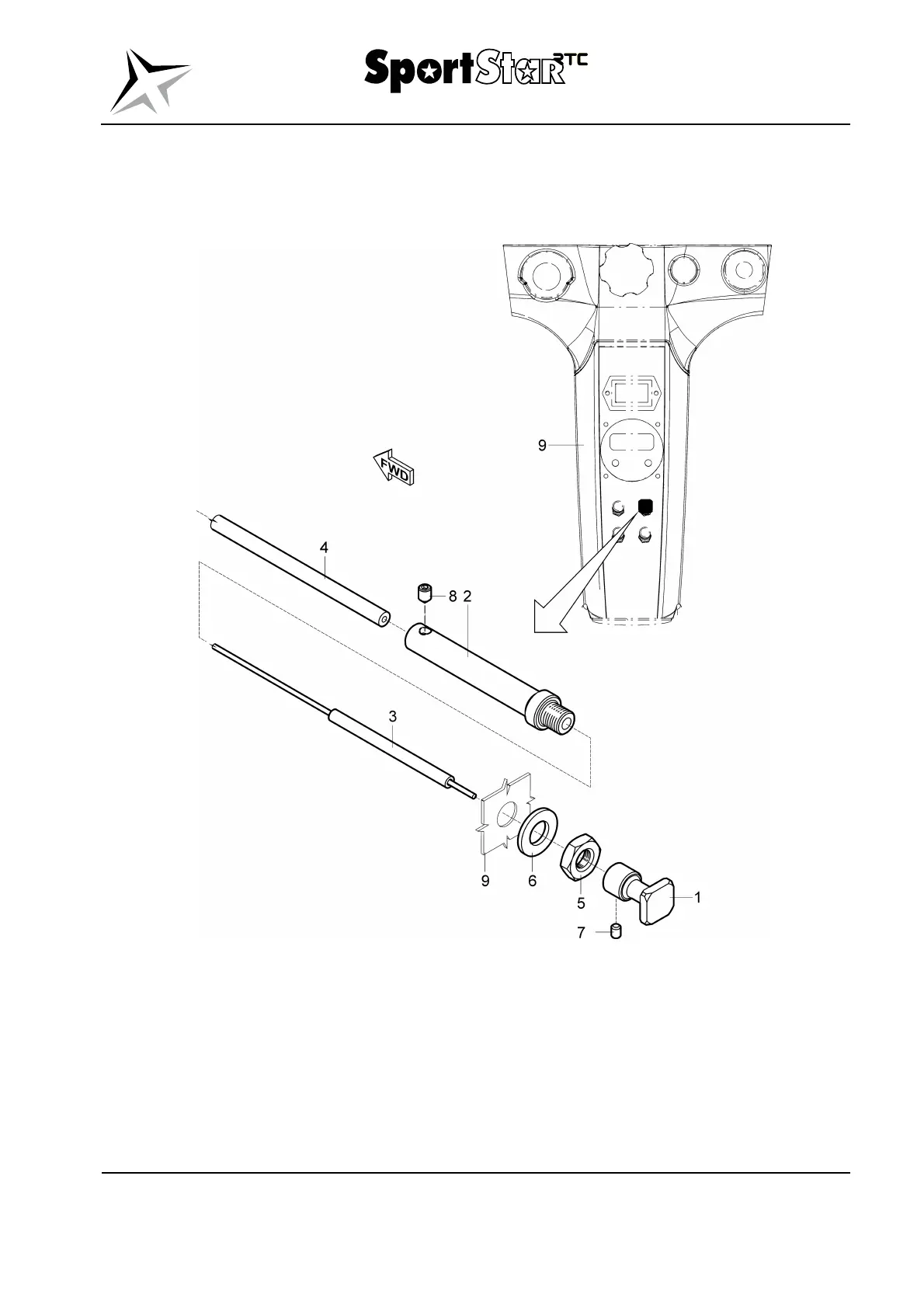

Fig. 71-8 Carburettor preheating control – removal / installation
