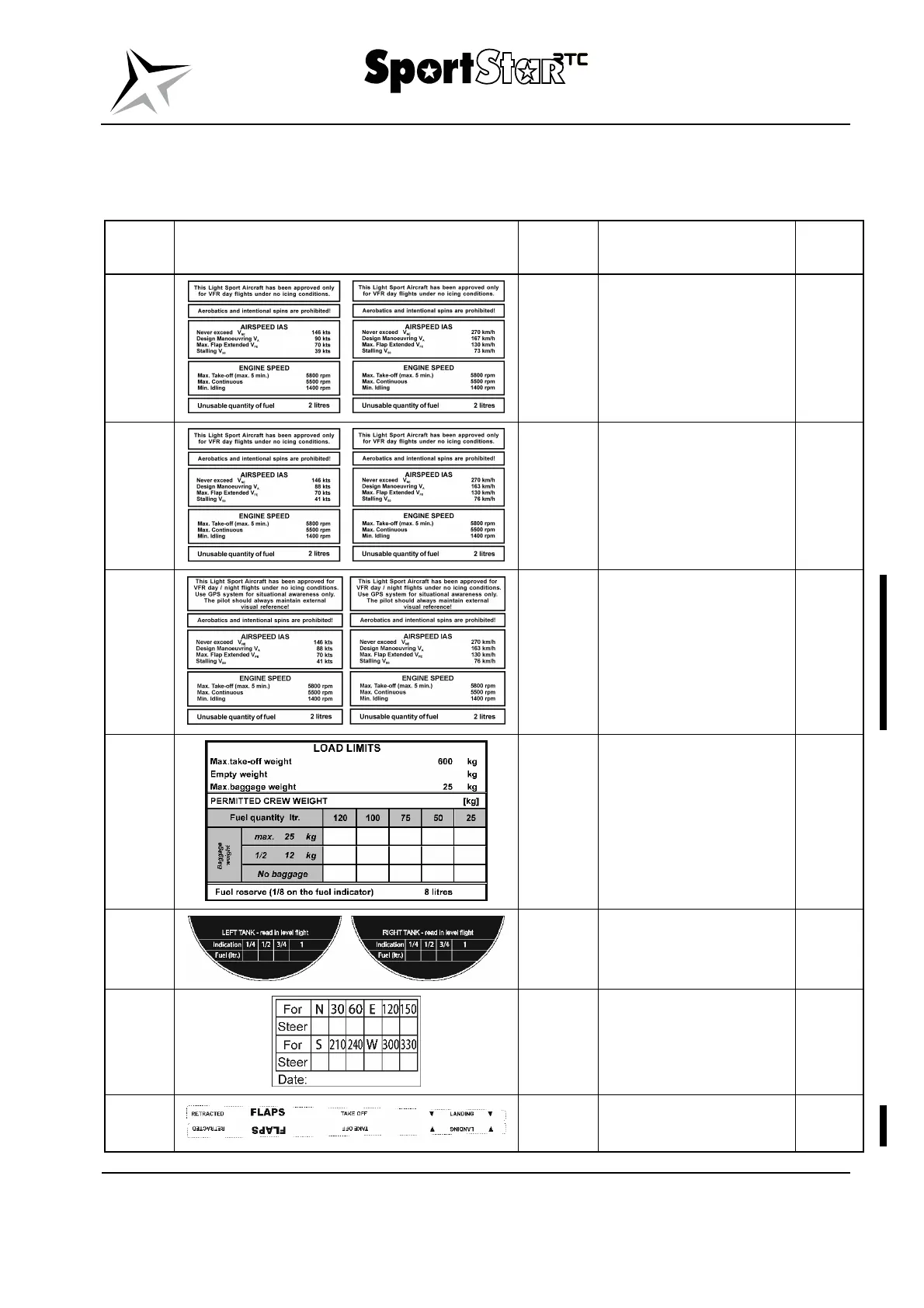

INTERIOR PLACARDS AND MARKINGS
1. LIST OF INTERIOR PLACARDS AND MARKINGS
SERIAL
NO.
PLACARD COLOUR LOCATION FIG.
1. Black
R inner side of the
cockpit in front of the
ventilation window
(airplane equipped with
the Klassic 170/3/R
propeller).
11-2
1.
Black
R inner side of the
cockpit in front of the
ventilation window
(airplane equipped with
the KW-31-033
propeller).
11-2
1.
Black
R inner side of the
cockpit in front of the
ventilation window
(airplane equipped with
the Klassic 170/3/R
propeller and NVFR
capability).
11-2
2.
Black
L inner side of the
cockpit in front of the
ventilation window.
11-2
3.
White
R part of the instrument
panel on the fuel
quantity indicators.
11-2
4.
Black
Canopy frame
below the
magnetic compass.
11-2
5.
Black /
white
Central panel at the flap
control lever.
11-2
