Evector SportStar RTC - Page 78

ERTC022-10-AS
MAINTENANCE MANUAL
11-30
Page 11-10
2019-03-22
Effectivity: All
Edition 2 | Rev. 1

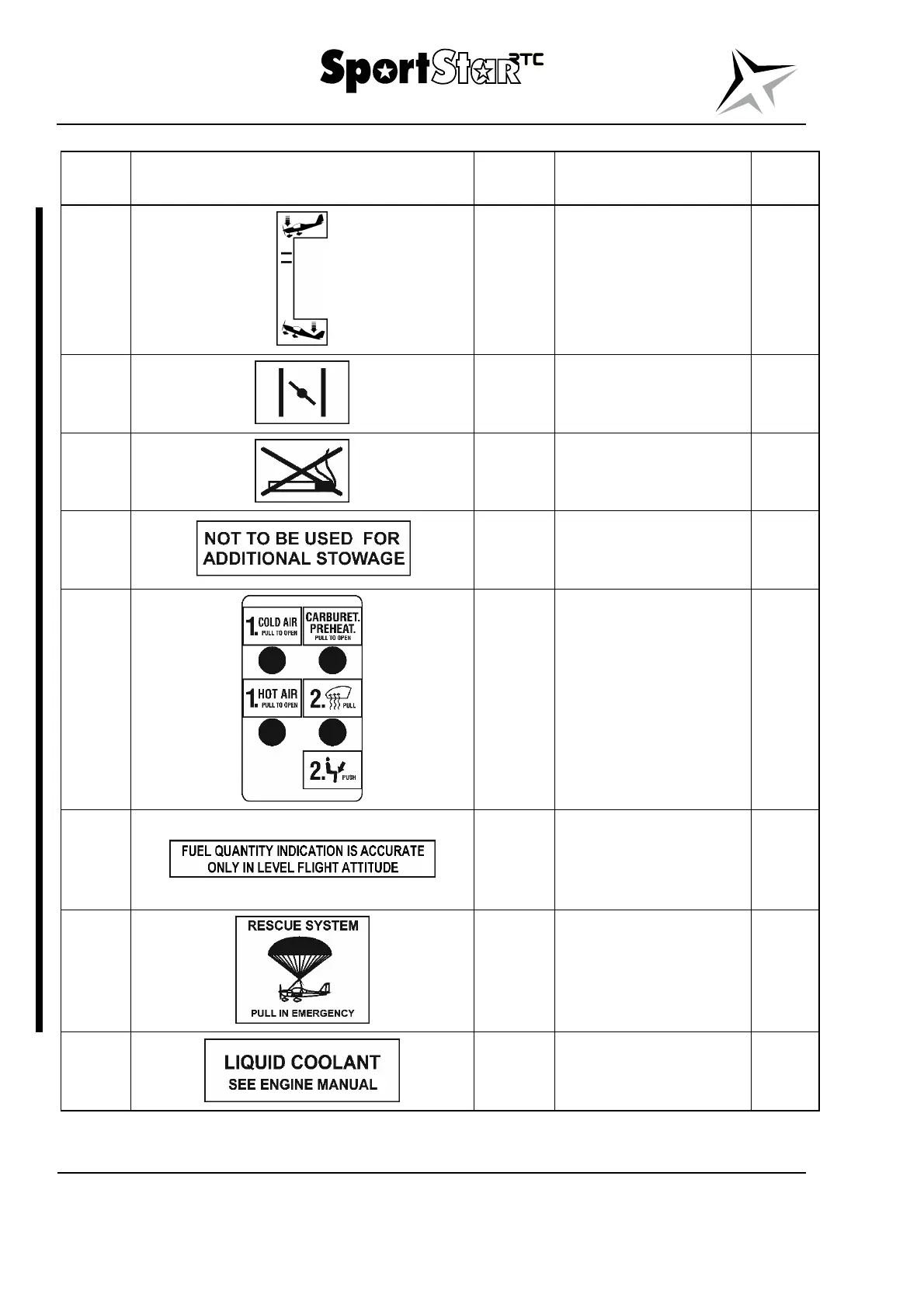

SERIAL
NO.
PLACARD COLOUR LOCATION FIG.
6.
Black /
white
L part of the instrument
panel at the pitch trim
indicator.
11-2
7.
Black /
white
Central part of the
instrument panel below
the choke controller.
11-2
8.
Black /
white
Central part of the
instrument panel above
COM/NAV block.
11-2
9.
Black /
white
Bulkhead of the area
behind the baggage
compartment.
11-2
10.
Black /
white
Central panel below the
controls of ventilation /
heating and preheating
of the carburettors.
11-2
11.
Black /
white
R part of the instrument
panel below the fuel
quantity indicators /
EMS display unit.
11-2
12.
Black /
white
Central part of the
instrument panel at the
parachute rescue
system activation
handle.
11-2
13.
Black
Engine compartment on
the expansion bottle of
the cooling system.
11-2
