MAINTENANCE MANUAL
Page 11-16
Effectivity: All
Edition 2 | Rev. 1
SERIAL
NO.

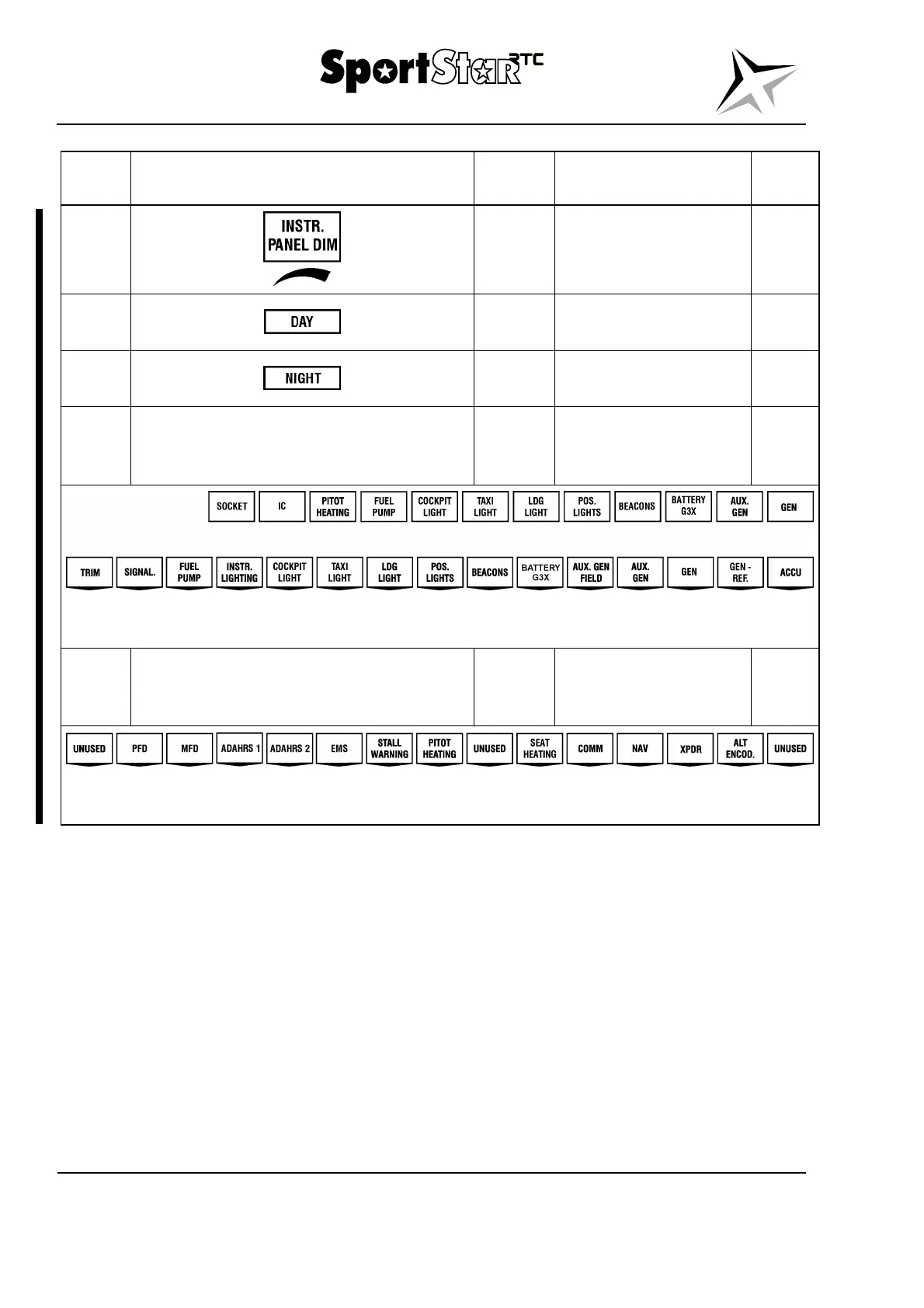

PLACARD COLOUR LOCATION FIG.
54.
Black /
white
L part of the instrument
panel at the dimmer.
11-2
55.
Black /
white
L part of the instrument
panel bellow the switch.
11-2
56.
Black /
white
L part of the instrument
panel above the switch.
11-2
57.
Black /
white
L part of the instrument
panel at circuit breakers
and circuit breakers.
11-2
NOTE: The above specified layout of the placards applies to the standard design
of the airplane, it may vary depending on the installed equipment.
58.
Black /
white
R part of the instrument
panel at circuit
breakers.
11-2
NOTE: The above specified layout of the placards applies to the standard design
of the airplane, it may vary depending on the installed equipment.
