Selecting audio breakaway
NOTES:
• Available for inputs on XTP CP 4i (XTP), XTP CP 4i 4K (XTP), XTP CP 4i Fiber 4K,
XTP II CP 4i HD 4K PLUS, XTP CP 4i HDMI, XTP CP 4i HDMI DMA, and
XTP CP 4i DVI Pro boards.
• When HDMI is selected, the matrix switcher routes the audio embedded in the
digital input.
• When Analog is selected, the matrix switcher routes the analog audio from the
associated analog audio port.
• When Auto is selected, digital audio takes priority over analog audio.

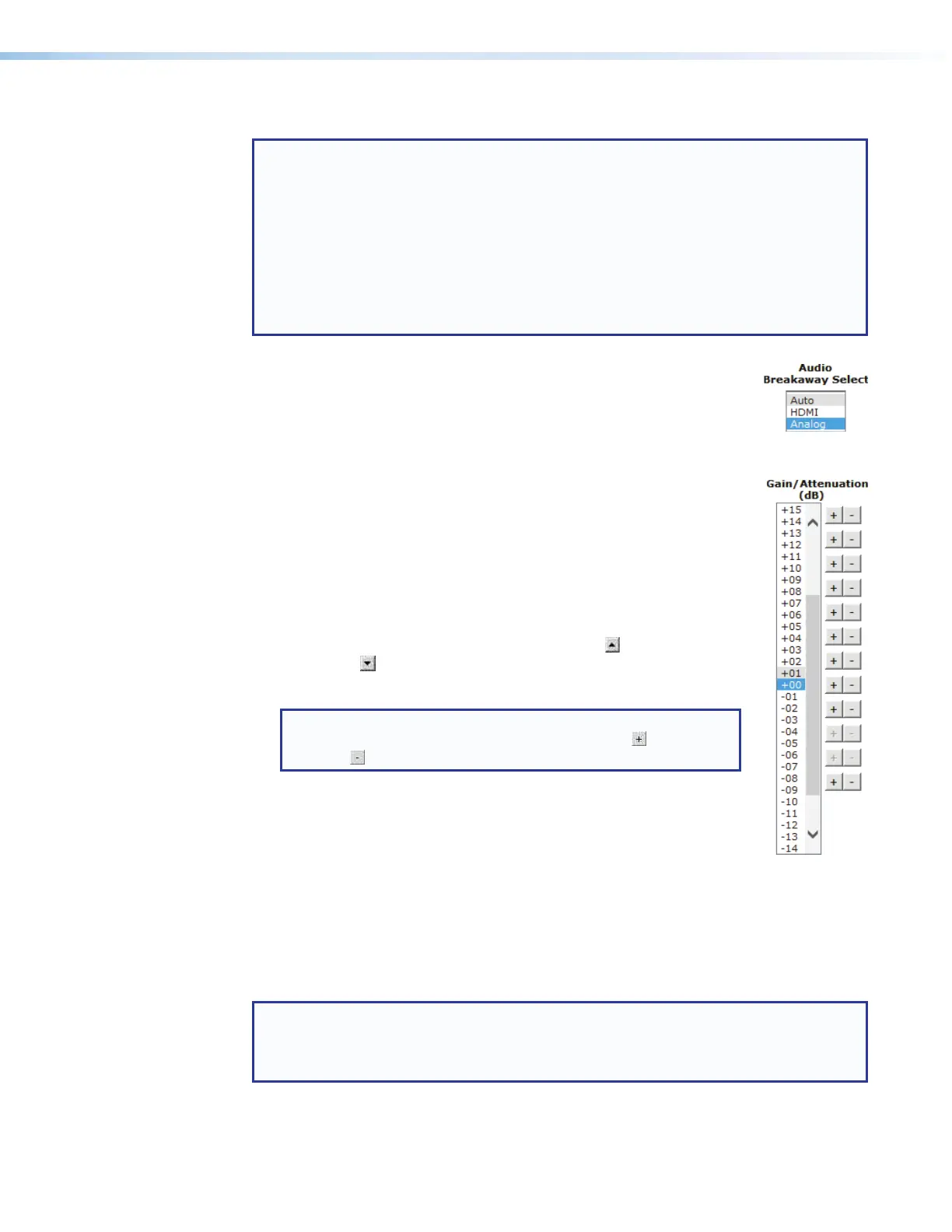

You can select the input audio for output as follows:
1. Click the Audio Breakaway Select drop-down list for the desired
input (
1
, right). A drop-down list appears.
2. Click the desired setting, Auto, HDMI, or Analog (
2
).
Changing the input gain and attenuation
You can set the level of gain or attenuation (-18 dB to +24 dB) of each
analog audio input from the Input Adjustments page. Adjust the audio
levels so there are no noticeable volume differences between sources.
Change the gain and attenuation setting for an analog audio input as
follows:
1. Click the Input Audio Level drop-down list for the desired input
(
1
, right). A drop-down list appears.
2. Click and drag the slider or click on the scroll up button or the
scroll down button until the desired value is visible.
3. Click and the desired value (
2
).
NOTE: As an alternative to steps 2 and 3, or to listen to the
audio as you make adjustments, click on the up button or
down button.
Output Adjustments Page
The Output Adjustments page is a central location for changing how
output video and audio are processed and muted. Access the page by
clicking the Output Adjustments link (see figure 70,
1
on the next page) on the left of
the Set and View Ties, Input Adjustments, EDID Configuration, XTP Power, or
Presets page.
The page tailors the options available for selection when a XTP CP 4o SA (analog audio)
output board is installed. Allow Audio Only and Audio Breakaway Select are not
available for selection.
NOTE: All options are available for selection for XTP CP 4o and XTP CP 4o 4K
(XTP output) boards. If the output from an endpoint connected to the XTP board is
compatible with the option, the adjustment is made. The Output Adjustments page
indicates the change regardless.
