XTP CrossPoint Series • Maintenance and Modifications 149
Using the Button-Label Generator software
1. Click Start > Programs > Extron Electronics > Button Label Generator >
Button Label Generator. The Button-Label Generator window opens (see figure 77).

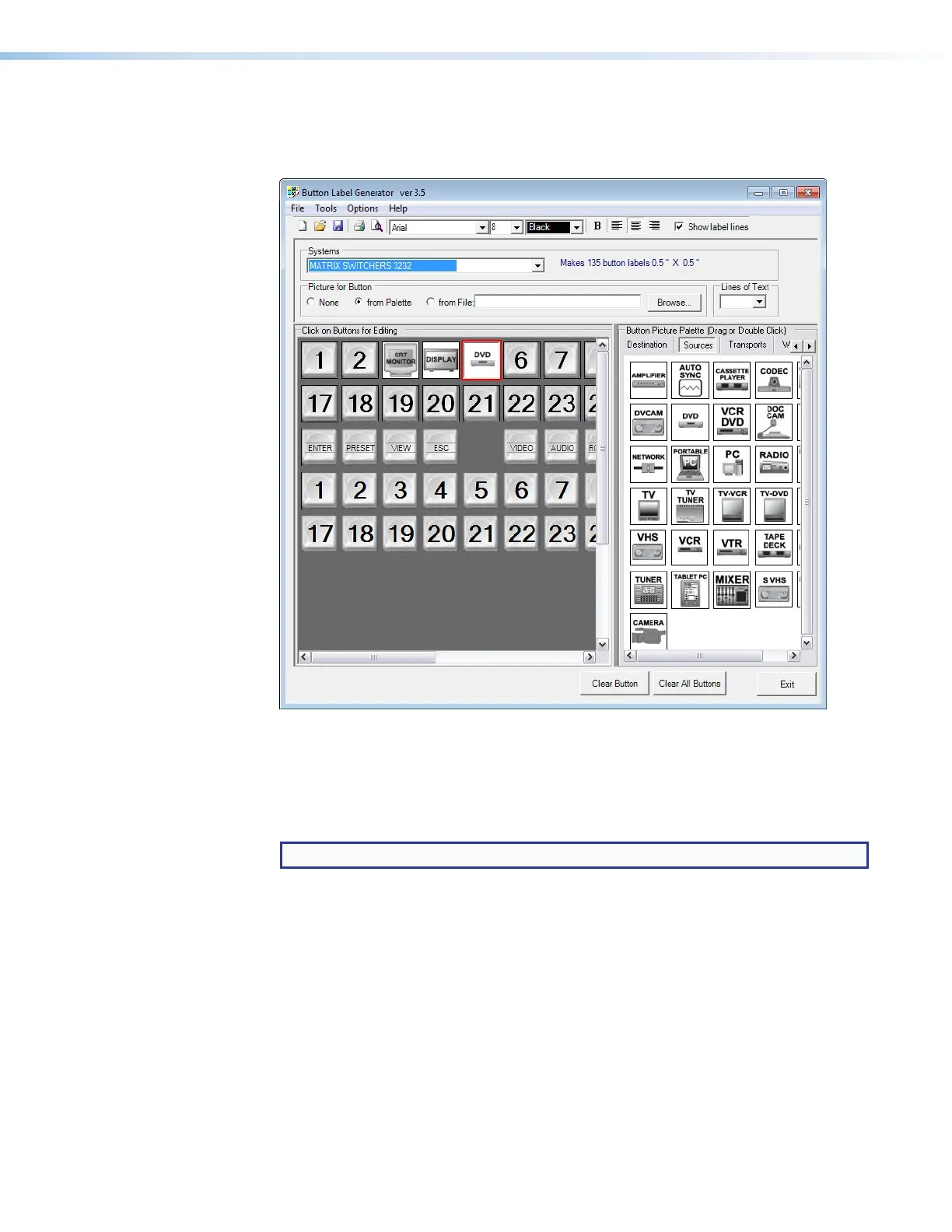

Figure 77. Extron Button-Label Generator Window
2. In the Systems selection box, choose the Matrix Switchers 3232 option to match,
as closely as possible, the button label size and quantities for your matrix switcher.
3. Using normal Windows controls, you can create and print labels that can be placed in
the label windows on the front panel of the matrix switcher.
NOTE: For best results, print on transparent or translucent material.
4. Click the Clear All Buttons button and create new labels as many times as
necessary to make all of the button labels that you need.
To access the help program, click the Help menu.
