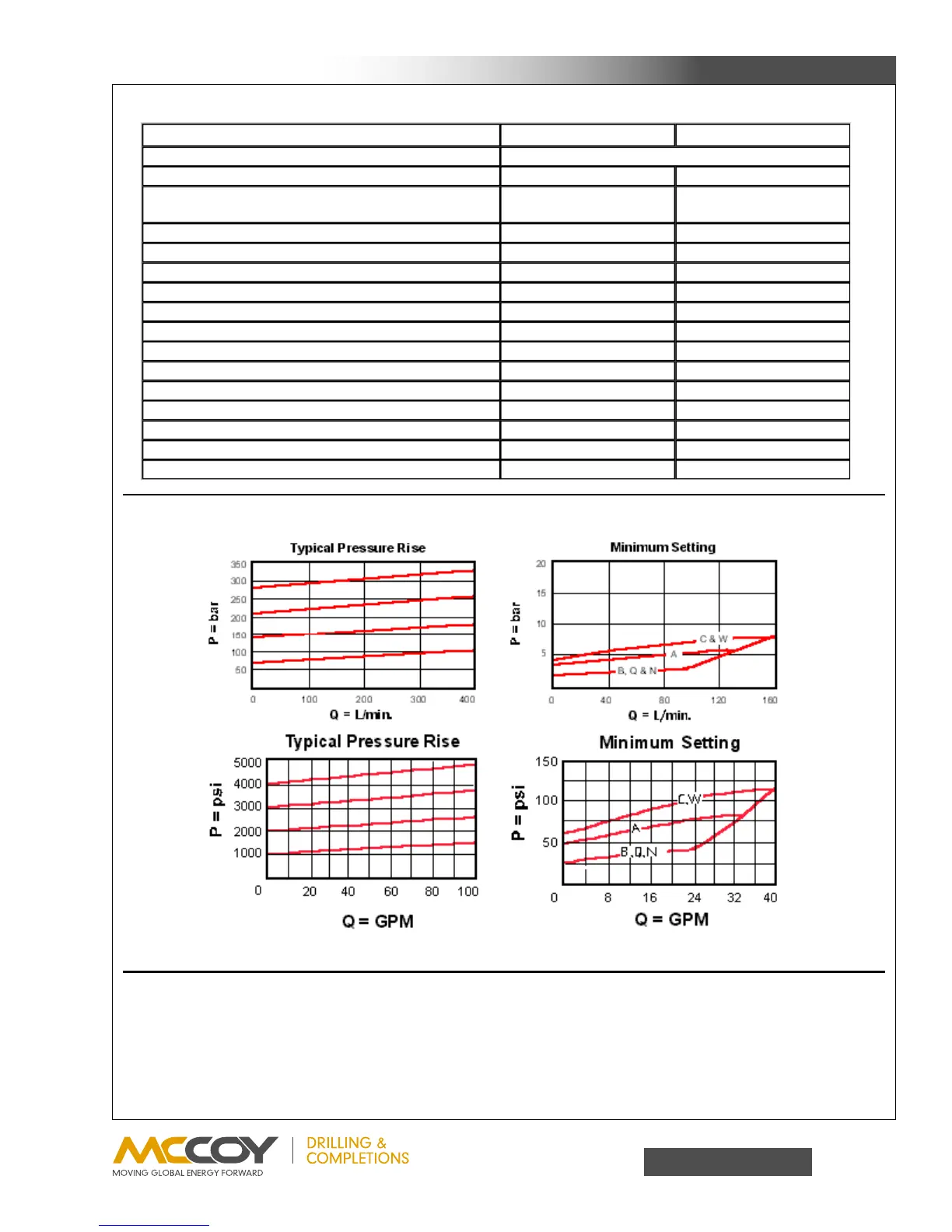

Farr KT5500 - Page 161

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
7.33
TECHnICaL ManuaL
HyDRauLIC VaLVE InfoRMaTIon
Technical Data
U.S. Units Metric Units
Cavity
T-3A
Capacity
50 gpm 200 L/min.
Adjustment - Number of Clockwise Turns to
Increase Setting
5 5
Factory Pressure Settings Established at
4 gpm 15 L/min.
Maximum Operating Pressure
5000 psi 350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)
3 in³/min.@1000 psi 50 cc/min.@70 bar
Response Time - Typical
10 ms 10 ms
Series (from Cavity)
2
Valve Hex Size
1 1/8 in. 28,6 mm
Valve Installation Torque
45 - 50 lbf ft 60 - 70 Nm
Adjustment Screw Hex Socket Size
5/32 in. 4 mm
Adjustment Nut Hex Size
9/16 in. 15 mm
Adjustment Nut Torque
108 lbf in. 12 Nm
Model Weight
.50 lb 0,25 kg
Seal Kits
Viton: 990-203-006
Seal Kits
Buna: 990-203-007
Option Selection
RPGC-L A N
Preferred Options
