About This Manual
Thank you for choosing Fasttel FT600(K)SIP series door phone. This manual is
intended for the administrators who need to properly configure the door phone.
This manual applies to 220.78.103.1 version, and it provides all the
configurations for the functions and features of Fasttel door phone. Please visit
Fasttel web or consult technical support for any new information or latest
firmwares.
Connections:
Ethernet (POE): Ethernet (POE) connector which it can provide both power and
network connection.
12V/GND: External power supply terminal if POE connector is not available.
RS485-A/B: RS485 terminal.
WG_D0/WG_D1: Wiegand terminal.
DOORA/B: Trigger signal input terminal.
RelayA/B (NO/NC/COM): Relay control terminal.

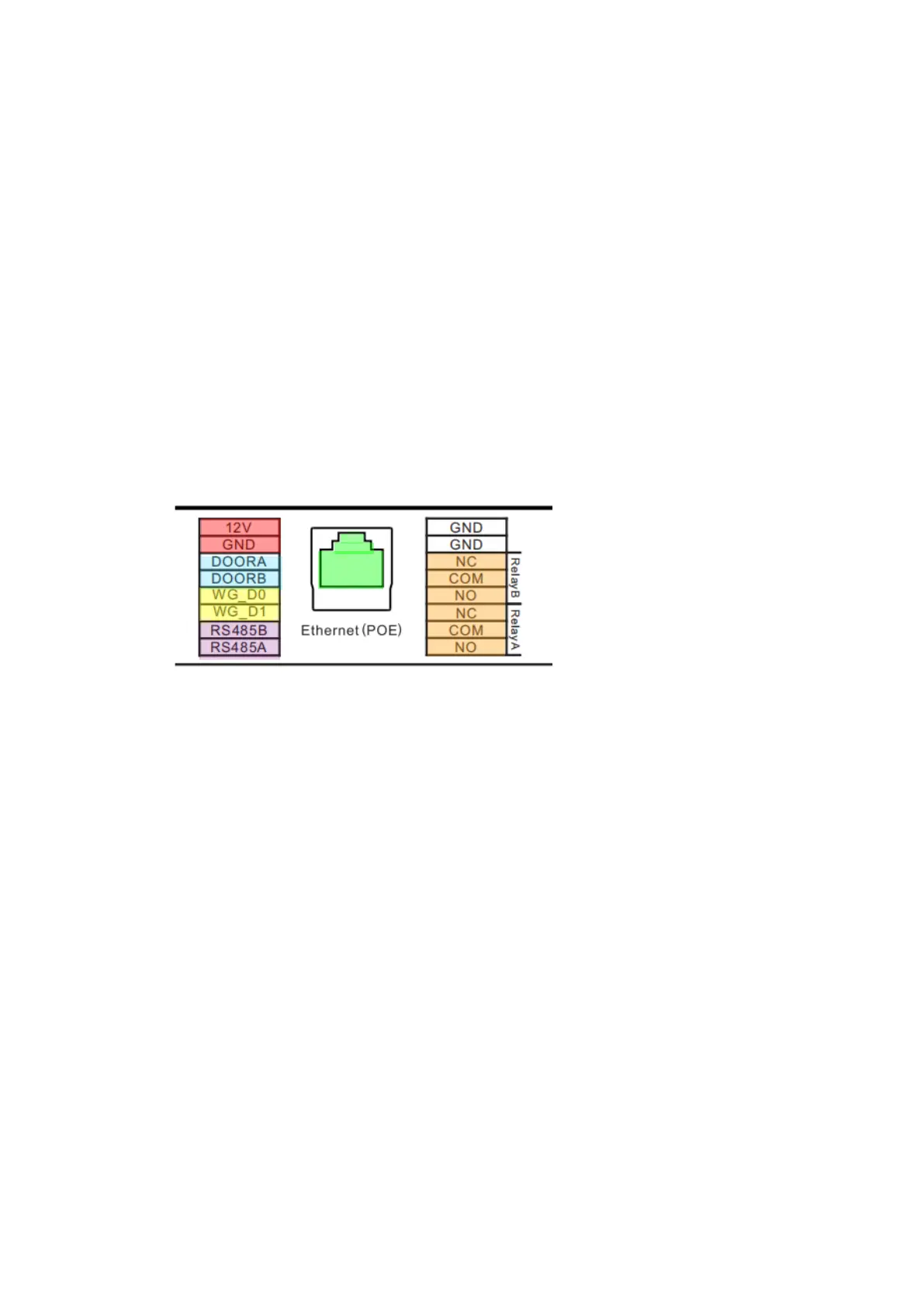

Figure 1.2.1 Connector Introduction
